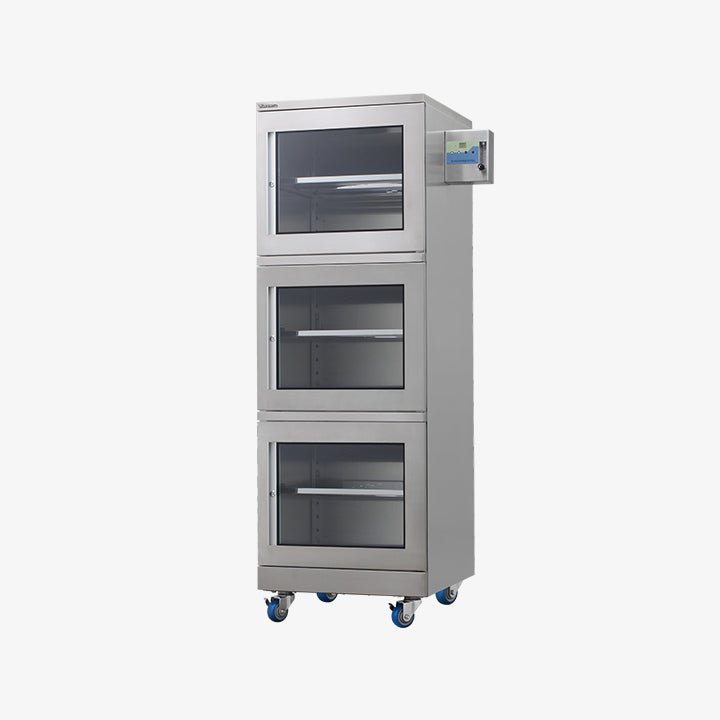

Wonderful SND-680MH (580 Litre) Nitrogen Dry Cabinet (RH Range 0-99.9%)

Key Features

• Dehumidification volume: 580 Litre

• Shelves: 5

• Humidity Display Range: 0-99.9% RH with Sensor Precision: ±2% RH

• Oxygen Valve: 0-21 VOL% with Sensor Precision: ±2 VOL % (Optional)
• Stainless Steel cabinet body
• Lockable Doors

• Multi-functional oxygen-controlled moisture-proof cabinet
• Independent automatic nitrogen filling system
• Digital display and numerical control, precise control,
• Reliable guarantee of moisture-proof and anti-oxidation
• Warranty: 5-Year Manufacturer Warranty

Specifications

• External Dimensions: W600*D670*H1785 mm
• Internal Dimensions: W589*D620*H1560 mm

• Dehumidification volume: 388 Litre

• Humidity Display Range: 0-99.9% RH with Sensor Precision: ±2% RH

• Oxygen Valve: 0-21 VOL% with Sensor Precision: ±2 VOL % (Optional)
• Coated Shelf: 5
• Shelf Size: W555*D490*H20 mm
• Max Weight Capacity of Shelf: 100 kgs

• Weight: 110kg

• Ave Power Consumption: 1 W/h
• Coating: Silver, Anodisation

Nitrogen Purging System

• Working modes (optional): rinse upon door open & close; since against humidity value setting; since against oxygen value setting.
• N2 Purge: 0-25 L/min;
• N2 Pressure: 0-0.6 Mpa
• N2 Hose Connection: OD: 8mm; ID: 6mm
• System Sizes: 155 x 82 x 180mm

Applications

• Application in the semiconductor field - It can store various IC components, passive devices, PCB boards, SMD devices, MSD devices, crystals, CCD, silicon wafers, etc. After opening/closing, it can quickly recover to a low humidity state, so that it meets the use requirements stipulated in the IPC (J-STD-033) standard, effectively prevents the adverse problems caused by moisture in IC packaging and printed circuit boards, etc., and can improve product quality and good product rate.
• Application in the field of optical devices - Lenses, lenses, liquid crystal glass substrates, microscopes, lenses, etc. can be stored. The best storage humidity: 20~50%RH can effectively prevent mold from growing on precision optics.
• Storage of digital media - It can be stored in film and television equipment, microfilm, optical disc, hard disk, record, etc. The best storage humidity: 30~40%RH. It can prevent data, audio, video media, etc. from being damaged by moisture.
• Application in the field of treasure - It can be used for antiques, cultural relics, ancient books, ancient musical instruments and other collections. The storage humidity can be 40~60%RH. By maintaining the optimal humidity level, the collection is not oxidized and moldy.
• Home field application - It can store cameras, watches, pearls, stamps, albums, certificates, ingredients, high-end bags, clothing, etc. The best storage humidity is 30~50%RH.
• The field of biochemical experiments - It can store pharmaceutical preparations, tablets, powders, samples, vaccines, plant seeds, animal and plant specimens, precision instruments, etc.
• Application in the industrial field - Store precision tools, measuring tools and cutting tools.
• Application in the field of communication - It can store communication equipment and instruments.

Note: The storage humidity of the above products is for reference only, please refer to your product description for the specific humidity setting.
