Wonderful SND-1280MH Nitrogen Cabinet RH 0~99.9% RH Volume 1160L
Regular price
$12,100.00 AUD
Inc. GST
Development by DDSHOPAPPS

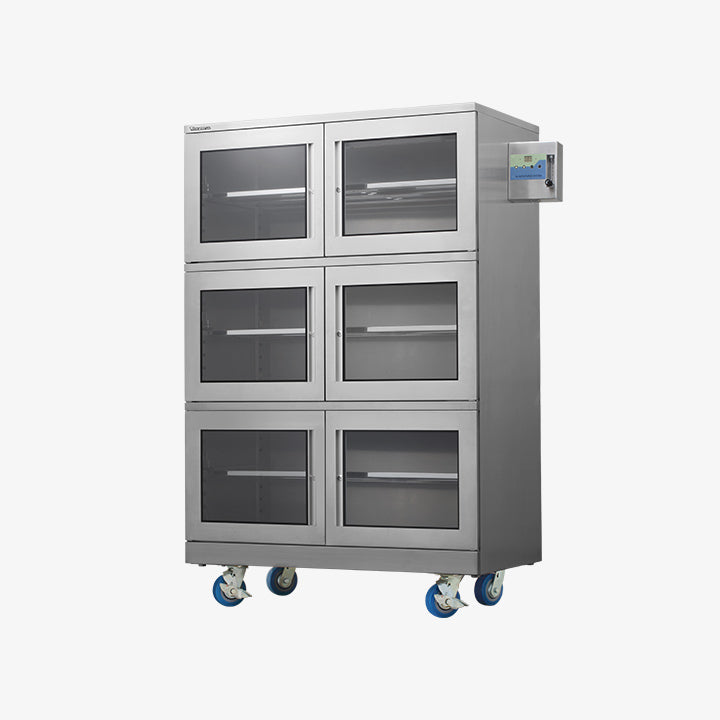

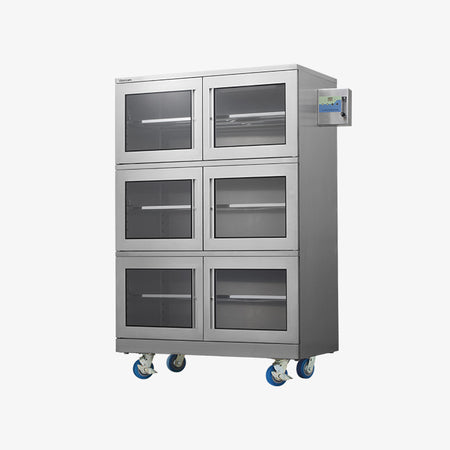

Wonderful SND-1290MH (1160 Litre) Nitrogen Dry Cabinet (RH Range 0-99.9%)
Key Features
- Dehumidification volume: 1160 Litre
- Shelves: 5
- Humidity Display Range: 0-99.9% RH with Sensor Precision: ±2% RH
- Oxygen Valve: 0-21 VOL% with Sensor Precision: ±2 VOL % (Optional)
- Stainless Steel cabinet body
- Lockable Doors
- Multi-functional oxygen-controlled moisture-proof cabinet
- Independent automatic nitrogen filling system
- Digital display and numerical control, precise control,
- Reliable guarantee of moisture-proof and anti-oxidation
- Warranty: 5-Year Manufacturer Warranty
Wonderful SND SERIES - Nitrogen-Filled Cabinet - Strong & Durable - Stainless Steel Body
The multi-functional oxygen-controlled moisture-proof stainless steel nitrogen-filled cabinet can be equipped with a professional moisture-proof movement, which can monitor the oxygen concentration or humidity in the cabinet according to needs.
Fully intelligently, accurately and quickly provide a low-oxygen and low-humidity environment, and provide a reliable guarantee of moisture-proof and anti-oxidation for the storage of LED, IC, liquid crystal, crystal oscillation, PCB, optical components, electronic components, chemicals, high-precision measuring devices and other industries.
- T1.2mm stainless steel cabinet body, surface brushed; introduction of German production technology, stitching full sealing treatment to ensure low humidity requirements.
- ESD protection meets the IEC61340-5-1:2007 anti-static international certification standard.
- Adopt imported high-density oxygen control detection sensor, with full range accuracy ±1%, precise control; long service life, can be guaranteed for 5 years.
- Digital display and numerical control, precise control, convenient operation.
- The independent automatic nitrogen filling system can be set and converted according to the moisture-proof or oxidation-proof working mode.
- Equipped with gate control detection alarm and over-limit alarm to ensure that there is no mistake.
- The layer plate and bracket designed by punching can adjust the upper and lower space according to the size of the storage items, and the layer plate design can bear a load of 100KG.
- Three nitrogen-filled control modes (optional): 1. Regular nitrogen filling 2. Constant humidity nitrogen filling 3. Control oxygen and nitrogen, and the control mode can be selected according to demand.
Specifications
- External Dimensions: W1200*D670*H1840 mm
- Internal Dimensions: W1190*D620*H1560 mm
- Dehumidification volume: 1160 Litre
- Humidity Display Range: 0-99.9% RH with Sensor Precision: ±2% RH
- Oxygen Valve: 0-21 VOL% with Sensor Precision: ±2 VOL % (Optional)
- Coated Shelf: 5
- Shelf Size: W1157*D490*H20 mm
- Max Weight Capacity of Shelf: 100 kgs
- Weight: 170kg
- Ave Power Consumption: 1 W/h
- Coating: Silver, Anodisation
Nitrogen Purging System
- Working modes (optional): rinse upon door open & close; since against humidity value setting; since against oxygen value setting.
- N2 Purge: 0-25 L/min;
- N2 Pressure: 0-0.6 Mpa
- N2 Hose Connection: OD: 8mm; ID: 6mm
- System Sizes: 155 x 82 x 180mm
Applications
- Application in the semiconductor field - It can store various IC components, passive devices, PCB boards, SMD devices, MSD devices, crystals, CCD, silicon wafers, etc. After opening/closing, it can quickly recover to a low humidity state, so that it meets the use requirements stipulated in the IPC (J-STD-033) standard, effectively prevents the adverse problems caused by moisture in IC packaging and printed circuit boards, etc., and can improve product quality and good product rate.
- Application in the field of optical devices - Lenses, lenses, liquid crystal glass substrates, microscopes, lenses, etc. can be stored. The best storage humidity: 20~50%RH can effectively prevent mold from growing on precision optics.
- Storage of digital media - It can be stored in film and television equipment, microfilm, optical disc, hard disk, record, etc. The best storage humidity: 30~40%RH. It can prevent data, audio, video media, etc. from being damaged by moisture.
- Application in the field of treasure - It can be used for antiques, cultural relics, ancient books, ancient musical instruments and other collections. The storage humidity can be 40~60%RH. By maintaining the optimal humidity level, the collection is not oxidized and moldy.
- Home field application - It can store cameras, watches, pearls, stamps, albums, certificates, ingredients, high-end bags, clothing, etc. The best storage humidity is 30~50%RH.
- The field of biochemical experiments - It can store pharmaceutical preparations, tablets, powders, samples, vaccines, plant seeds, animal and plant specimens, precision instruments, etc.
- Application in the industrial field - Store precision tools, measuring tools and cutting tools.
- Application in the field of communication - It can store communication equipment and instruments.
Note: The storage humidity of the above products is for reference only, please refer to your product description for the specific humidity setting.
