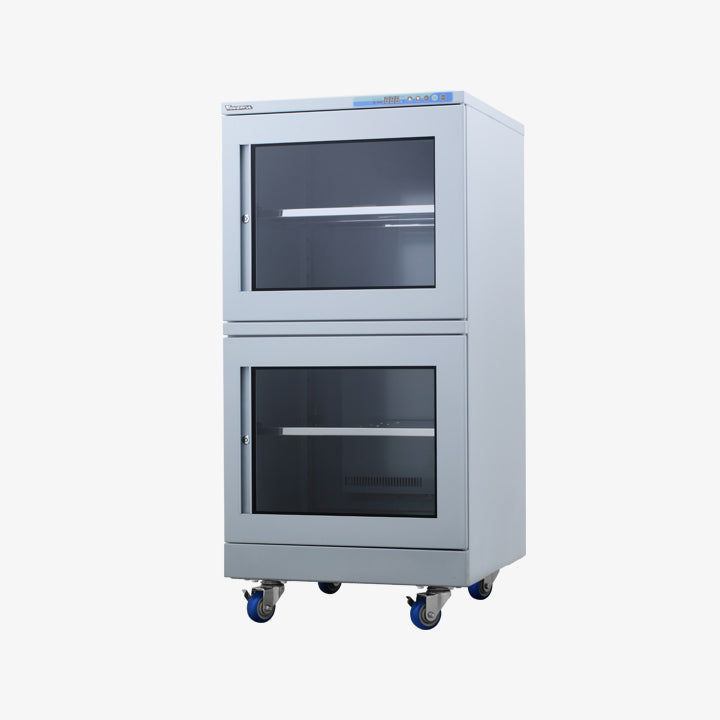

Wonderful ESD-480MH (388 Litre) Advanced Dry Cabinet (RH Range 1-50%)
Key Features
- Dehumidification volume: 388 Litre
- Shelves: 3
- Humidity control range: 1-50% RH adjustable
- Sensor Precision Humidity: ±2% RH
- Sensor Precision Temperature: ±0.3% RH
- Maintenance-free JGPS series drying unit with integrated fan
- (ESD) Environmentally Sustainable Design
- Limit value monitoring of RH
- Stainless Steel cabinet body
- Lockable Doors
- Digital control panel with humidity and temperature display
- Regulated relative humidity
- Suitable for storage and drying according to IPC/JEDEC J-STD-033B standards
- Universal casters, 2 pcs lockable
- Warranty: 5-Year Manufacturer Warranty
Wonderful SDD SERIES - Advanced Design - Anti-Static Countermeasure Product
- Precise control: Equipped with imported precision humidity sensor, the humidity measurement accuracy is ±2%RH.
- Digital display CNC: key-based setting of humidity target value, simple and convenient operation; LED display is clear.
- Intelligent constant humidity: adopts automatic intelligent control mode, with humidity stability function.
- Intelligent humidity monitoring: exceed the humidity set value, open the door intelligent delay alarm, to ensure the safe storage of goods.
- Dehumidification range: 1~50%RH.
- Fully meet the new IPC/JEDEC J-STD-033B.1J and IC packaging standards.
- ESD series is an anti-static countermeasure product: the box is coated with conductive powder (the surface resistivity is 106 ~ 109 Ω), and the whole box is grounded.
Specifications
- External Dimensions: W600*D670*H1255 mm
- Internal Dimensions: W589*D620*H1035 mm
- Dehumidification volume: 388 Litre
- Humidity Range: 1-50% RH adjustable
- Sensor Precision Humidity: ±2% RH
- Sensor Precision Temperature: ±0.3% RH
- Coated Shelf: 3
- Shelf Size: W555*D490*H20 mm
- Max Weight Capacity of Shelf: 100 kgs
- Weight: 70kg
- Ave Power Consumption: 34.6 W/h
- Coating: Grey, Antistatic, Surface Resistivity (106 ~ 109 Ω)
Applications
-
Application in the semiconductor field - It can store various IC components, passive devices, PCB boards, SMD devices, MSD devices, crystals, CCD, silicon wafers, etc. After opening/closing, it can quickly recover to a low humidity state, so that it meets the use requirements stipulated in the IPC (J-STD-033) standard, effectively prevents the adverse problems caused by moisture in IC packaging and printed circuit boards, etc., and can improve product quality and good product rate.
-
Application in the field of optical devices - Lenses, lenses, liquid crystal glass substrates, microscopes, lenses, etc. can be stored. The best storage humidity: 20~50%RH can effectively prevent mold from growing on precision optics.
-
Storage of digital media - It can be stored in film and television equipment, microfilm, optical disc, hard disk, record, etc. The best storage humidity: 30~40%RH. It can prevent data, audio, video media, etc. from being damaged by moisture.
-
Application in the field of treasure - It can be used for antiques, cultural relics, ancient books, ancient musical instruments and other collections. The storage humidity can be 40~60%RH. By maintaining the optimal humidity level, the collection is not oxidized and moldy.
-
Home field application - It can store cameras, watches, pearls, stamps, albums, certificates, ingredients, high-end bags, clothing, etc. The best storage humidity is 30~50%RH.
-
The field of biochemical experiments - It can store pharmaceutical preparations, tablets, powders, samples, vaccines, plant seeds, animal and plant specimens, precision instruments, etc.
-
Application in the industrial field - Store precision tools, measuring tools and cutting tools.
-
Application in the field of communication - It can store communication equipment and instruments.
Note: The storage humidity of the above products is for reference only, please refer to your product description for the specific humidity setting.
Warranty
Wonderful Dry Cabinets - 5-Year Manufacturer Warranty
- Wonderful Dry Cabinets and Accessories come with a Manufaturer Warranty for a period of 5 Years from the date of purchase with the following terms and conditions.
- The Wonderful Manufacturer Warranty covers material and manufacturing defects existing at the time of the purchase and during the first 5 Years.
- The Wonderful Manufacturer Warranty only comes into force if a proof of purchase is presented during the warranty period, you will have the right to have any manufacturing defect repaired free of charge.
- The Wonderful Manufacturer Warranty is ONLY applicable to Wonderful products purchased from Kudos Cameras or its Authorised Dealers.
- The Wonderful Manufacturer Warranty does not cover normal wear and tear or deterioration as well as scratches or breakages due to physical damage, water or fire damage, loss, or theft.
Please contact us below to proceed with your warranty claim.
