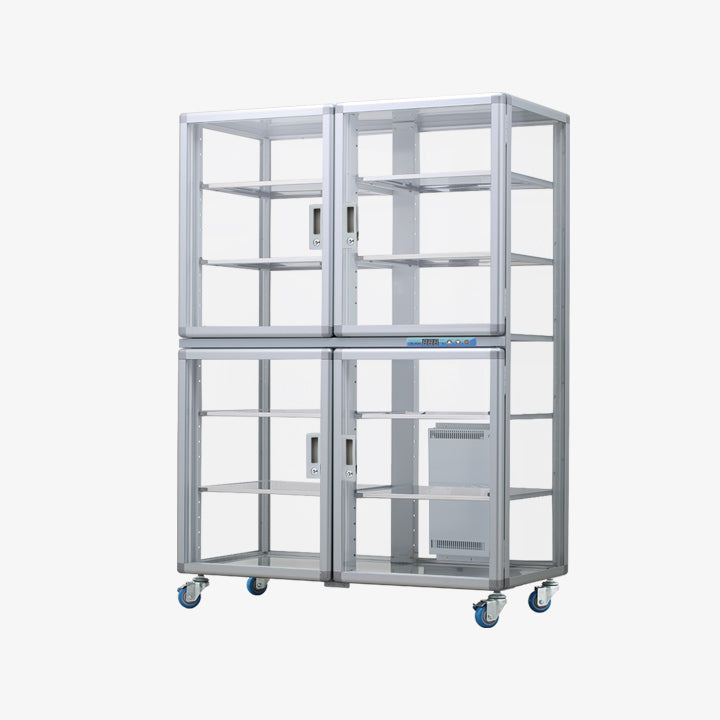

Wonderful EALD-801S (870 Litre) Transparent Dry Cabinet (RH Range 1-50%)

Key Features

  • Dehumidification volume: 870 Litre
  • Shelves: 5
  • Humidity control range: 1-50% RH adjustable
  • Precise hygrometer with accuracy: ±2% RH
  • JPG drying unit with integrated fan
  • (ESD) Environmentally Sustainable Design
  • Digital control and display panel.
  • High quality ESD polycarbonate cabinet body
  • Transparent design, clear visibility
  • Lockable Doors
  • Lightweight, easy to move
  • Warranty: 5-Year Manufacturer Warranty

Wonderful EALD SERIES - Transparency combined with versatility

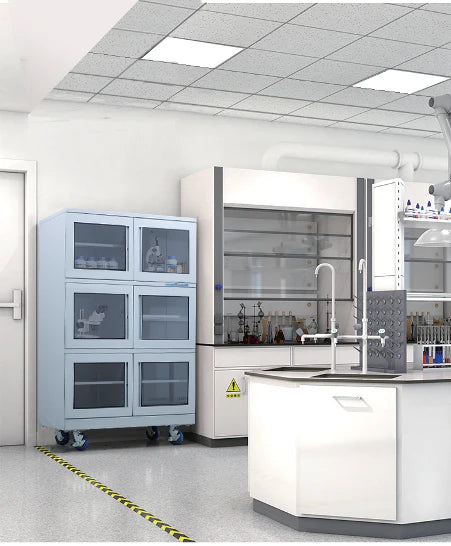

The EALD series drying cabinets feature an environmentally sustainable design with transparent construction, delivering essential performance. Designed for storing materials frequently used in laboratories or electronics industries, this cabinet maintains a dry environment and allows clear visibility of stored items such as powders, chemicals, antiques, and more.

  • Digital display CNC: equipped with imported temperature and humidity digital sensor, humidity measurement accuracy ±5%RH; temperature measurement accuracy ±0.3%RH.
  • Precise control: key-based setting of humidity target value, simple and convenient operation, clear LED display.
  • Intelligent constant temperature: automatic intelligent control method is adopted, 1-50% RH can be set at will, and the constant humidity accuracy is ±5%RH.
  • Intelligent humidity monitoring: exceed the humidity set value, open the door intelligent delay alarm, to ensure the safe storage of goods.
  • Dehumidification range: 1~50%RH.
  • It adopts a professional industrial dehumidification movement, which is fast and efficient.
  • The perforated plate and bracket can adjust the upper and lower space according to the size of the storage items.

Specifications

  • External Dimensions: W1152*590*H1630 mm
  • Internal Dimensions: W1065*D460*H1486 mm
  • Dehumidification volume: 870 Litre
  • Humidity Range: 1-50% RH adjustable
  • Sensor Precision: ±2% RH
  • Coated Shelf: 10
  • Shelf Size: W1065*D460*H20 mm
  • Max Weight Capacity of Shelf: 20 kgs
  • Weight: 85kg
  • Ave Power Consumption: 34.6 W/h
  • Coating: Silver, Anodisation

Applications

  • Application in the semiconductor field - It can store various IC components, passive devices, PCB boards, SMD devices, MSD devices, crystals, CCD, silicon wafers, etc. After opening/closing, it can quickly recover to a low humidity state, so that it meets the use requirements stipulated in the IPC (J-STD-033) standard, effectively prevents the adverse problems caused by moisture in IC packaging and printed circuit boards, etc., and can improve product quality and good product rate.
  • Application in the field of optical devices - Lenses, lenses, liquid crystal glass substrates, microscopes, lenses, etc. can be stored. The best storage humidity: 20~50%RH can effectively prevent mold from growing on precision optics.
  • Storage of digital media - It can be stored in film and television equipment, microfilm, optical disc, hard disk, record, etc. The best storage humidity: 30~40%RH. It can prevent data, audio, video media, etc. from being damaged by moisture.
  • Application in the field of treasure - It can be used for antiques, cultural relics, ancient books, ancient musical instruments and other collections. The storage humidity can be 40~60%RH. By maintaining the optimal humidity level, the collection is not oxidized and moldy.
  • Home field application - It can store cameras, watches, pearls, stamps, albums, certificates, ingredients, high-end bags, clothing, etc. The best storage humidity is 30~50%RH.
  • The field of biochemical experiments - It can store pharmaceutical preparations, tablets, powders, samples, vaccines, plant seeds, animal and plant specimens, precision instruments, etc.
  • Application in the industrial field - Store precision tools, measuring tools and cutting tools.
  • Application in the field of communication - It can store communication equipment and instruments.

Note: The storage humidity of the above products is for reference only, please refer to your product description for the specific humidity setting.

Warranty

Wonderful Dry Cabinets 5-Year Manufacturer Warranty

  • Wonderful Dry Cabinets and Accessories come with a Manufaturer Warranty for a period of 5 Years from the date of purchase with the following terms and conditions.
  • The Wonderful Manufacturer Warranty covers material and manufacturing defects existing at the time of the purchase and during the first 5 Years.
  • The Wonderful Manufacturer Warranty only comes into force if a proof of purchase is presented during the warranty period, you will have the right to have any manufacturing defect repaired free of charge.
  • The Wonderful Manufacturer Warranty is ONLY applicable to Wonderful products purchased from Kudos Cameras or its Authorised Dealers.
  • The Wonderful Manufacturer Warranty does not cover normal wear and tear or deterioration as well as scratches or breakages due to physical damage, water or fire damage, loss, or theft.
