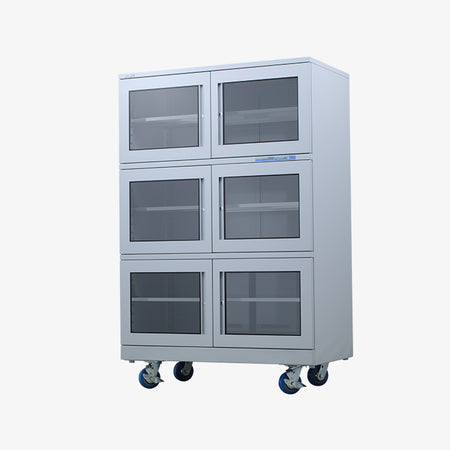

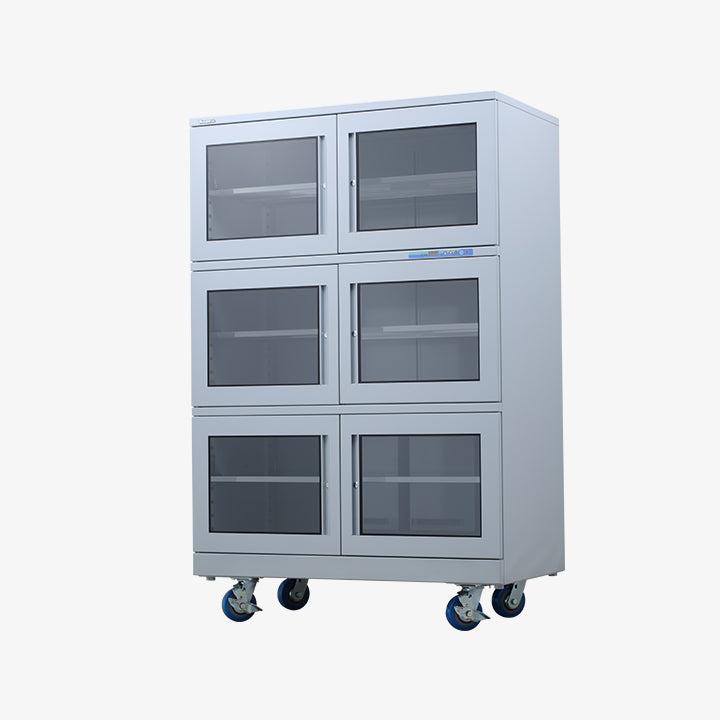

Wonderful DD-1280MH (1160 Litre) Advanced Dry Cabinet (RH Range 1-50%)
Key Features
- Dehumidification volume: 1160 Litre
- Shelves: 5
- Humidity control range: 1-50% RH adjustable
- Sensor Precision Humidity: ±2% RH
- Sensor Precision Temperature: ±0.3% RH
- Maintenance-free JGPS series drying unit with integrated fan
-
Limit value monitoring of RH
- Lockable Doors
- Digital control panel with humidity and temperature display
-
Regulated relative humidity
- Suitable for storage and drying according to IPC/JEDEC J-STD-033B, 1J and IC packaging standards
- Universal casters, 2 pcs lockable
- Warranty: 5-Year Manufacturer Warranty
Wonderful DD SERIES - Dehumidifying Range: 1-50% RH
- Precise control: Equipped with imported precision humidity sensor, the humidity measurement accuracy is ±2%RH.
- Digital display CNC: key-based setting of humidity target value, simple and convenient operation; LED display is clear.
- Intelligent constant humidity: adopts automatic intelligent control mode, with humidity stability function.
- Intelligent humidity monitoring: exceed the humidity set value, open the door intelligent delay alarm, to ensure the safe storage of goods.
- Dehumidification range: 1~50%RH
- Fully meet the new IPC/JEDEC J-STD-033B.1J and IC packaging standards
Specifications
- External Dimensions: W1200*D670*H1840 mm
- Internal Dimensions: W1190*D620*H1560 mm
- Dehumidification volume: 1160 Litre
- Humidity Range: 1-50% RH adjustable
- Sensor Precision Humidity: ±2% RH
- Sensor Precision Temperature: ±0.3% RH
- Coated Shelf: 5
- Shelf Size: W1157*D490*H20 mm
- Max Weight Capacity of Shelf: 100 kgs
- Weight: 185kg
- Ave Power Consumption: 58.9 W/h
- Coating: Grey
Applications
-

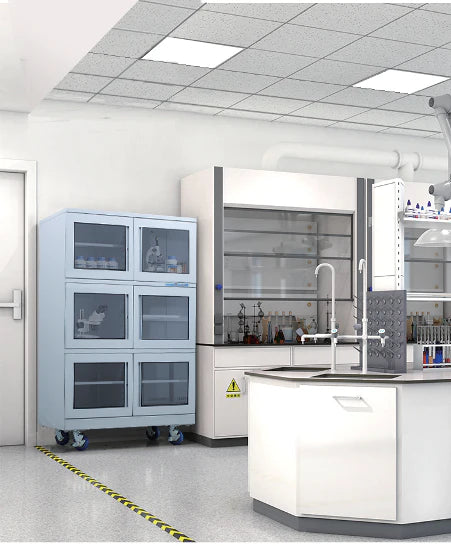

Application in the semiconductor field - It can store various IC components, passive devices, PCB boards, SMD devices, MSD devices, crystals, CCD, silicon wafers, etc. After opening/closing, it can quickly recover to a low humidity state, so that it meets the use requirements stipulated in the IPC (J-STD-033) standard, effectively prevents the adverse problems caused by moisture in IC packaging and printed circuit boards, etc., and can improve product quality and good product rate.
-
Application in the field of optical devices - Lenses, lenses, liquid crystal glass substrates, microscopes, lenses, etc. can be stored. The best storage humidity: 20~50%RH can effectively prevent mold from growing on precision optics.
-
Storage of digital media - It can be stored in film and television equipment, microfilm, optical disc, hard disk, record, etc. The best storage humidity: 30~40%RH. It can prevent data, audio, video media, etc. from being damaged by moisture.
-
Application in the field of treasure - It can be used for antiques, cultural relics, ancient books, ancient musical instruments and other collections. The storage humidity can be 40~60%RH. By maintaining the optimal humidity level, the collection is not oxidized and moldy.
-
Home field application - It can store cameras, watches, pearls, stamps, albums, certificates, ingredients, high-end bags, clothing, etc. The best storage humidity is 30~50%RH.
-
The field of biochemical experiments - It can store pharmaceutical preparations, tablets, powders, samples, vaccines, plant seeds, animal and plant specimens, precision instruments, etc.
-
Application in the industrial field - Store precision tools, measuring tools and cutting tools.
-
Application in the field of communication - It can store communication equipment and instruments.
Note: The storage humidity of the above products is for reference only, please refer to your product description for the specific humidity setting.
Warranty
Wonderful Dry Cabinets - 5-Year Manufacturer Warranty
- Wonderful Dry Cabinets and Accessories come with a Manufaturer Warranty for a period of 5 Years from the date of purchase with the following terms and conditions.
- The Wonderful Manufacturer Warranty covers material and manufacturing defects existing at the time of the purchase and during the first 5 Years.
- The Wonderful Manufacturer Warranty only comes into force if a proof of purchase is presented during the warranty period, you will have the right to have any manufacturing defect repaired free of charge.
- The Wonderful Manufacturer Warranty is ONLY applicable to Wonderful products purchased from Kudos Cameras or its Authorised Dealers.
- The Wonderful Manufacturer Warranty does not cover normal wear and tear or deterioration as well as scratches or breakages due to physical damage, water or fire damage, loss, or theft.
