SIRUI Jupiter 24mm/35mm/50mm T2 Full-Frame Macro Cine 3-Lens Set - Canon EF
Key Features

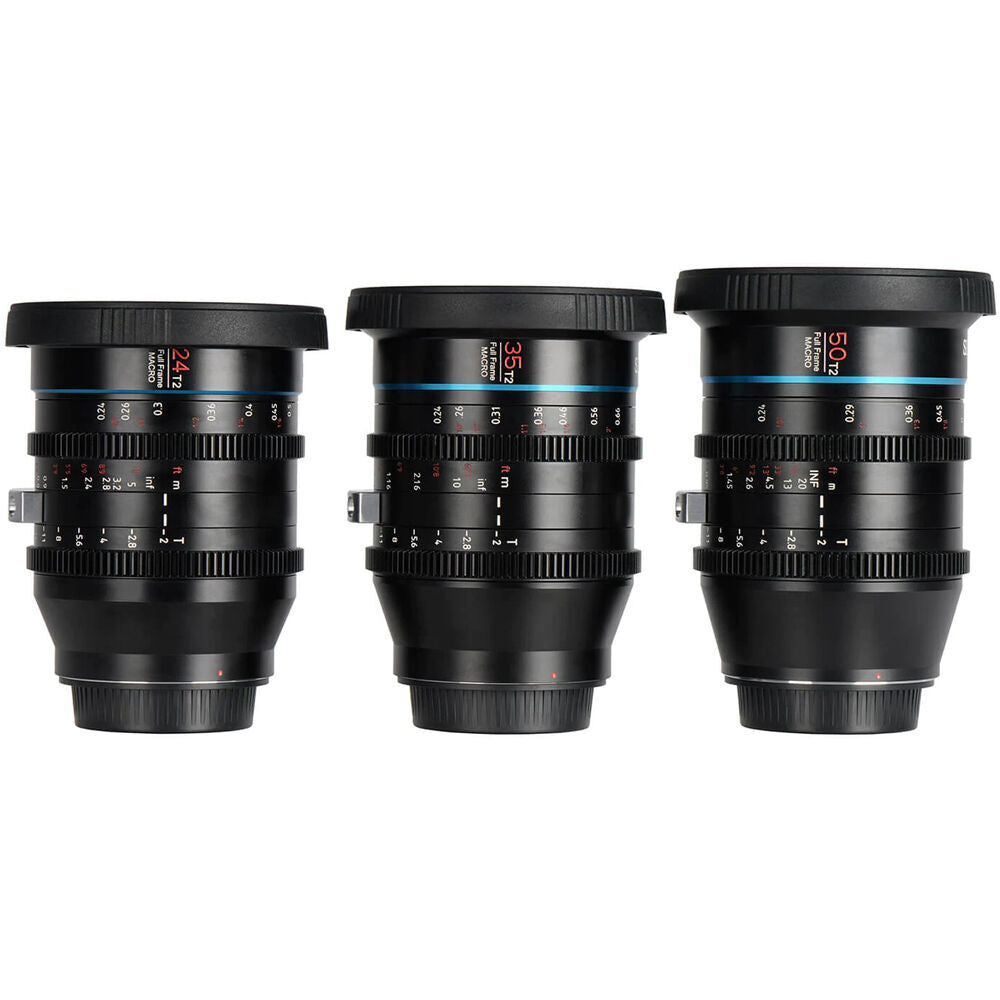

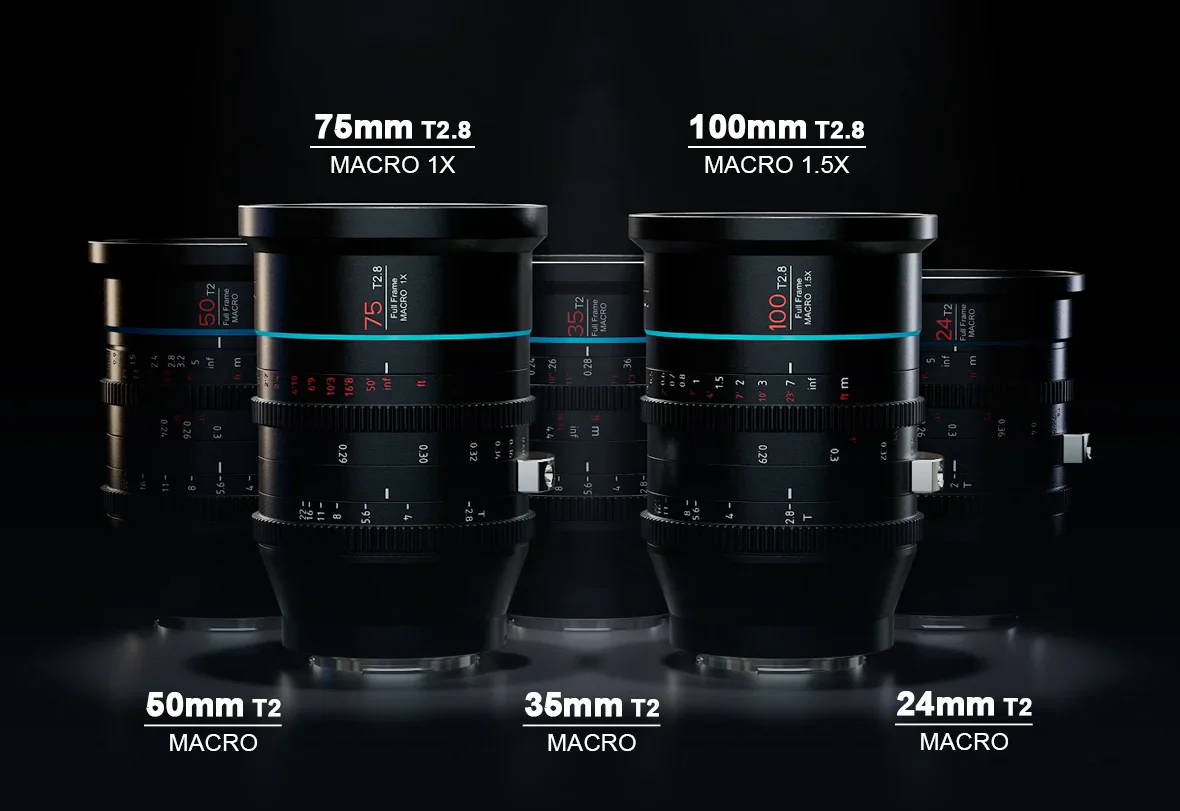

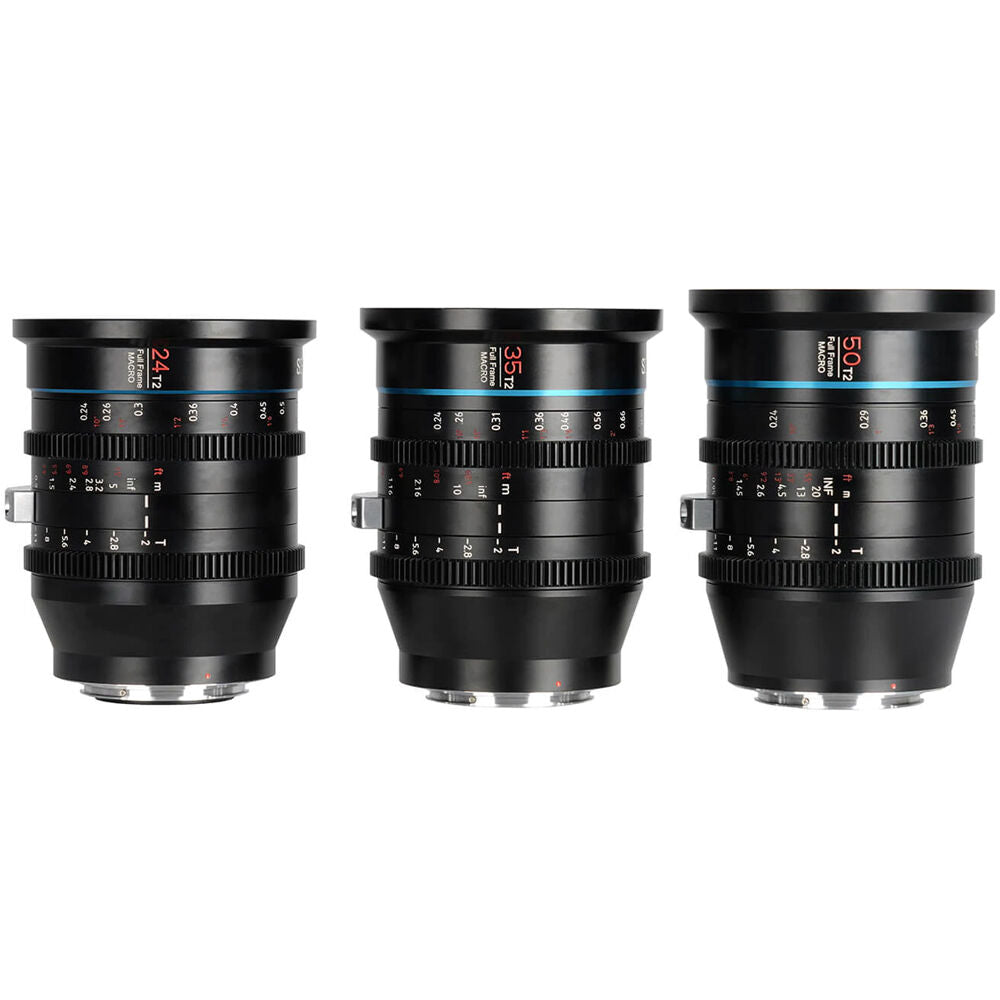

3 Lens Kit: 24mm, 35mm & 50mm T2 Lenses
Covers Full Frame Format
T2 to T22 Aperture Range
11 Iris Blades
92mm Filter Threads
Lens Markings in Meters and Feet
Cine-Style 0.8 MOD Focus and Iris Gears
9.4" Minimum Focus Distance

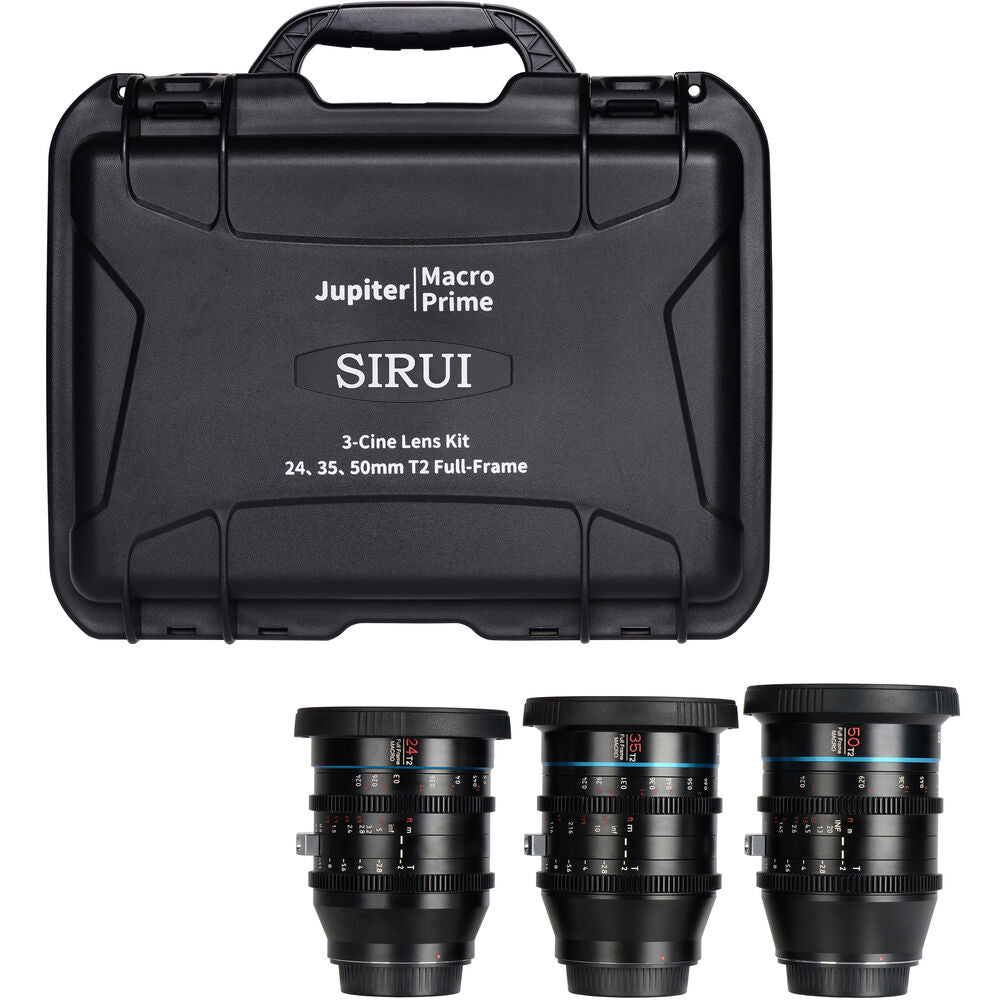

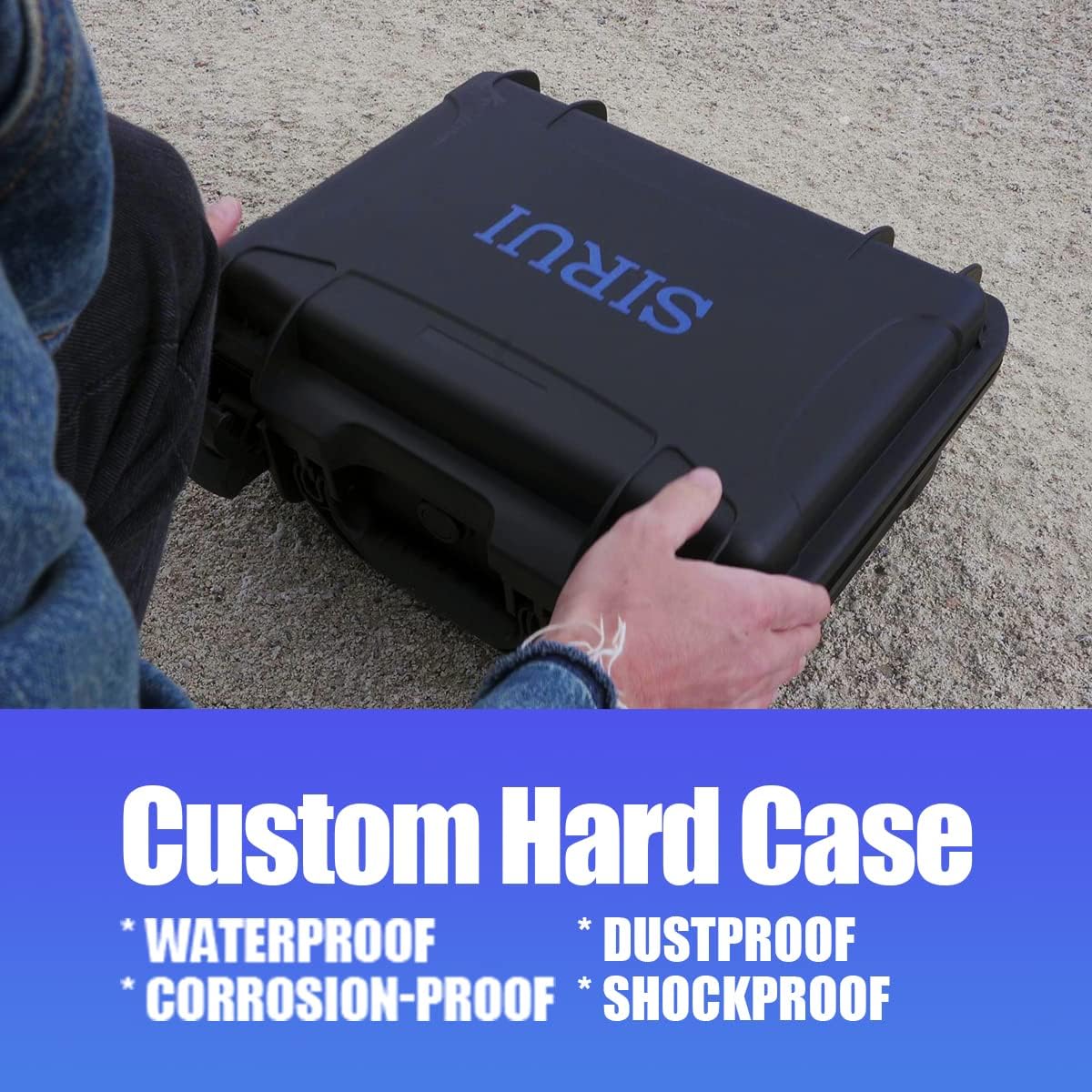

Includes Hard Carry Case

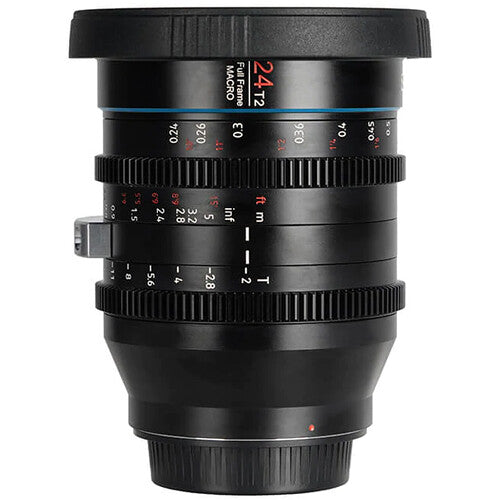

This Jupiter 24mm T2 Full Frame Macro Cine Lens from Sirui captures sharp macro shots with full frame camera sensors using their Canon EF mount. It features an aperture range of T2 to T22 for a deep or shallow depth of field, depending on your cinematic vision. A lens construction of 13 elements in 11 groups creates a smooth, circular bokeh with minimal focus breathing. The focus ring can rotate up to 202.4°, and both focus and iris rings have 0.8 MOD cinema-standard gears for intuitive manual controls. Focus distance and iris marks are displayed in both meters and feet. The lens has a minimum focus distance of 9.4" for compatibility with many matte boxes and adapters. A 92mm filter thread with a filter pitch of 0.75 allows you to attach filters of your choosing to further customize the light quality and effects of the lens.

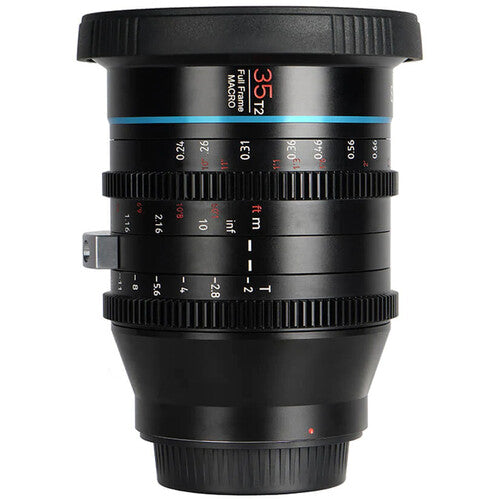

This Jupiter 35mm T2 Full Frame Macro Cine Lens from Sirui captures sharp macro shots with full frame camera sensors using their Canon EF mount. It features an aperture range of T2 to T22 for a deep or shallow depth of field, depending on your cinematic vision. A lens construction of 14 elements in 11 groups creates a smooth, circular bokeh with minimal focus breathing. The focus ring can rotate up to 200°, and both focus and iris rings have 0.8 MOD cinema-standard gears for intuitive manual controls. Focus distance and iris marks are displayed in both meters and feet. The lens has a minimum focus distance of 9.4" for compatibility with many matte boxes and adapters. A 92mm filter thread with a filter pitch of 0.75 allows you to attach filters of your choosing to further customize the light quality and effects of the lens.

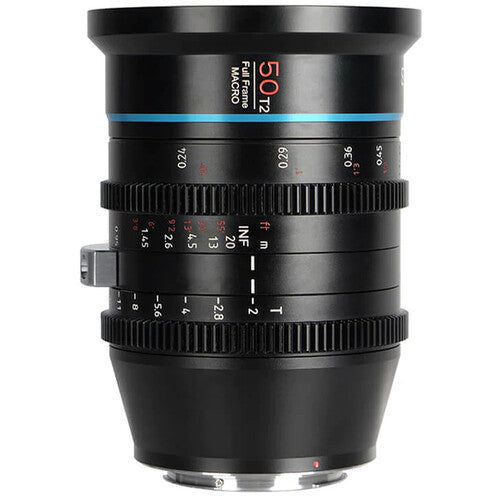

This Jupiter 50mm T2 Full Frame Macro Cine Lens from Sirui captures sharp macro shots with full frame camera sensors using their Canon EF mount. It features an aperture range of T2 to T22 for a deep or shallow depth of field, depending on your cinematic vision. A lens construction of 13 elements in 10 groups creates a smooth, circular bokeh with minimal focus breathing. The focus ring can rotate up to 220°, and both focus and iris rings have 0.8 MOD cinema-standard gears for intuitive manual controls. Focus distance and iris marks are displayed in both meters and feet. The lens has a minimum focus distance of 9.4" for compatibility with many matte boxes and adapters. A 92mm filter thread with a filter pitch of 0.75 allows you to attach filters of your choosing to further customize the light quality and effects of the lens.
Features at a Glance
Maximum T2 aperture for low-light advantage, deeper depth of field, and increased area of focus
Cinema industry-standard 0.8 MOD focus and iris gears compatible with follow focus and iris controls, unified positioning across focal lengths
35mm has a lens construction of 14 elements in 11 groups
24mm has a lens construction of 13 elements in 11 groups
50mm has a lens construction of 13 elements in 10 groups
Smooth, circular bokeh
Manually focus on objects as close as 9.4" away
Capable of recording 8K resolution video
Set of 10 shims included for adjusting flange distance
Specifications
SIRUI Jupiter 24mm T2 Full Frame Macro Cine Lens - Canon EF
Focal Length
24mm
Maximum Aperture
T2
Minimum Aperture
T22
Lens Mount
Canon EF
Lens Format Coverage
Full-Frame
Filter Thread
92 mm x 0.75
Interchangeable Mount
No
Image Circle
Not Specified by Manufacturer
Angle of View
Full Frame
Horizontal: 74.97°
Vertical: 53.78°
Focus Scales
Metric, Imperial
Optical Design
13 Elements in 11 Groups
Minimum Focus Distance
From Camera Sensor: 9.4" / 23.9 cm
Magnification
1:5 Macro Reproduction Ratio
0.2x Magnification
Aperture/Iris Blades
11
Image Stabilization
No
Gear Rotation
Focus: 202.4°
Electronic Communication
No
Diameter
Maximum: 3.7" / 95 mm
Focus Ring: 3.5" / 88 mm
Iris Ring: 3.5" / 88 mm
Length
4.4" / 111.7 mm
Weight
2.76 lb / 1.25 kg

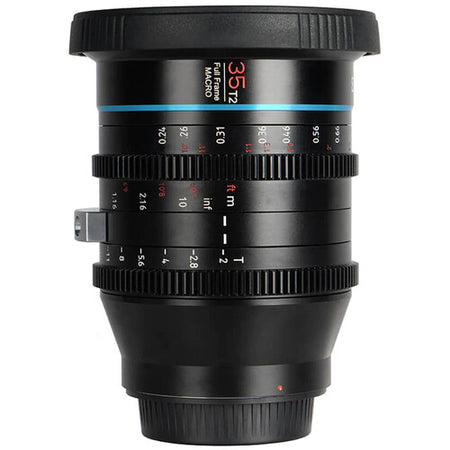

SIRUI Jupiter 35mm T2 Full Frame Macro Cine Lens - Canon EF
Focal Length
35mm
Maximum Aperture
T2
Minimum Aperture
T22
Lens Mount
Canon EF
Lens Format Coverage
Full-Frame
Filter Thread
92 mm x 0.75
Interchangeable Mount
No
Image Circle
Not Specified by Manufacturer
Focus Scales
Imperial, Metric
Optical Design
14 Elements in 11 Groups
Minimum Focus Distance
9.4" / 24 cm
Aperture/Iris Blades
11
Image Stabilization
No
Gear Standard
MOD
Gear Rotation
Focus: 200°
Electronic Communication
No
Diameter
Front: 3.7" / 95 mm
Length
4.62" / 117.3 mm
Weight
2.51 lb / 1.137 kg
SIRUI Jupiter 50mm T2 Full Frame Macro Cine Lens - Canon EF
Focal Length
50mm
Maximum Aperture
T2
Minimum Aperture
T22
Lens Mount
Canon EF
Lens Format Coverage
Full-Frame
Filter Thread
92 mm x 0.75
Interchangeable Mount
No
Image Circle
Not Specified by Manufacturer
Focus Scales
Imperial, Metric
Optical Design
13 Elements in 10 Groups
Minimum Focus Distance
9.4" / 23.9 cm
Aperture/Iris Blades
11
Image Stabilization
No
Gear Standard
MOD
Gear Rotation
Focus: 220°
Electronic Communication
No
Diameter
Front: 3.7" / 95 mm
Length
4.85" / 123.2 mm
Weight
2.33 lb / 1.058 kg

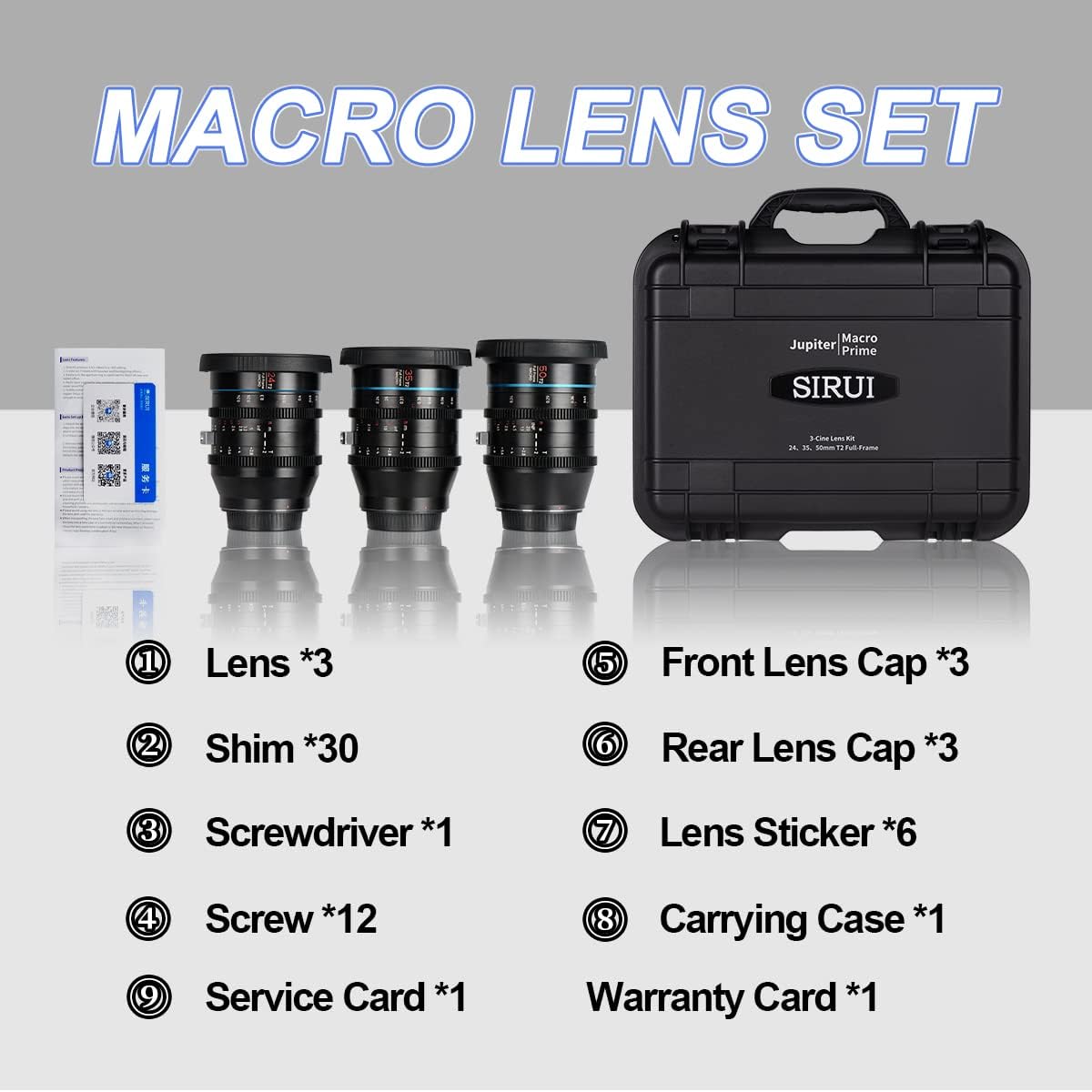

In the Box
Sirui Jupiter 24mm T2 Full Frame Macro Cine Lens (Canon EF)
Sirui Jupiter 35mm T2 Full Frame Macro Cine Lens (Canon EF)
Sirui Jupiter 50mm T2 Full Frame Macro Cine Lens (Canon EF)
