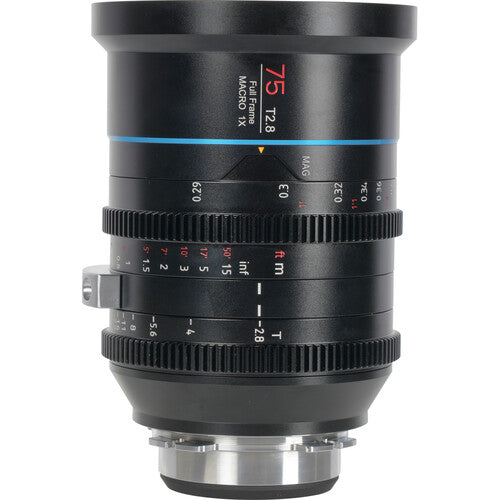

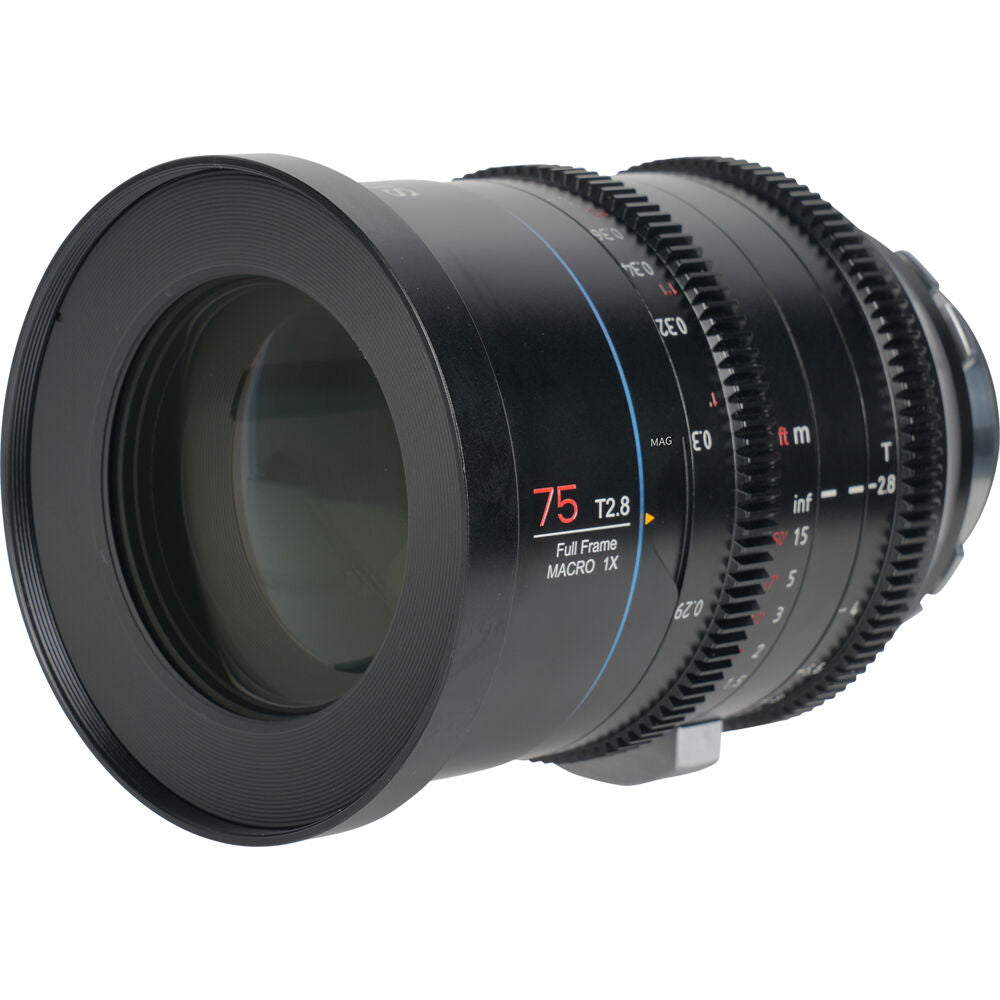

SIRUI Jupiter 75mm T2.8 Full-Frame Macro Cine Lens - PL Mount
Key Features
Covers Full-Frame Format
T2.8 to T22 Aperture Range
13 Iris Blades
92mm Filter Thread
Lens Markings in Meters and Feet
Cine-Style 0.8 MOD Focus and Iris Gears
11.4" Minimum Focus Distance
200° Focus Rotation

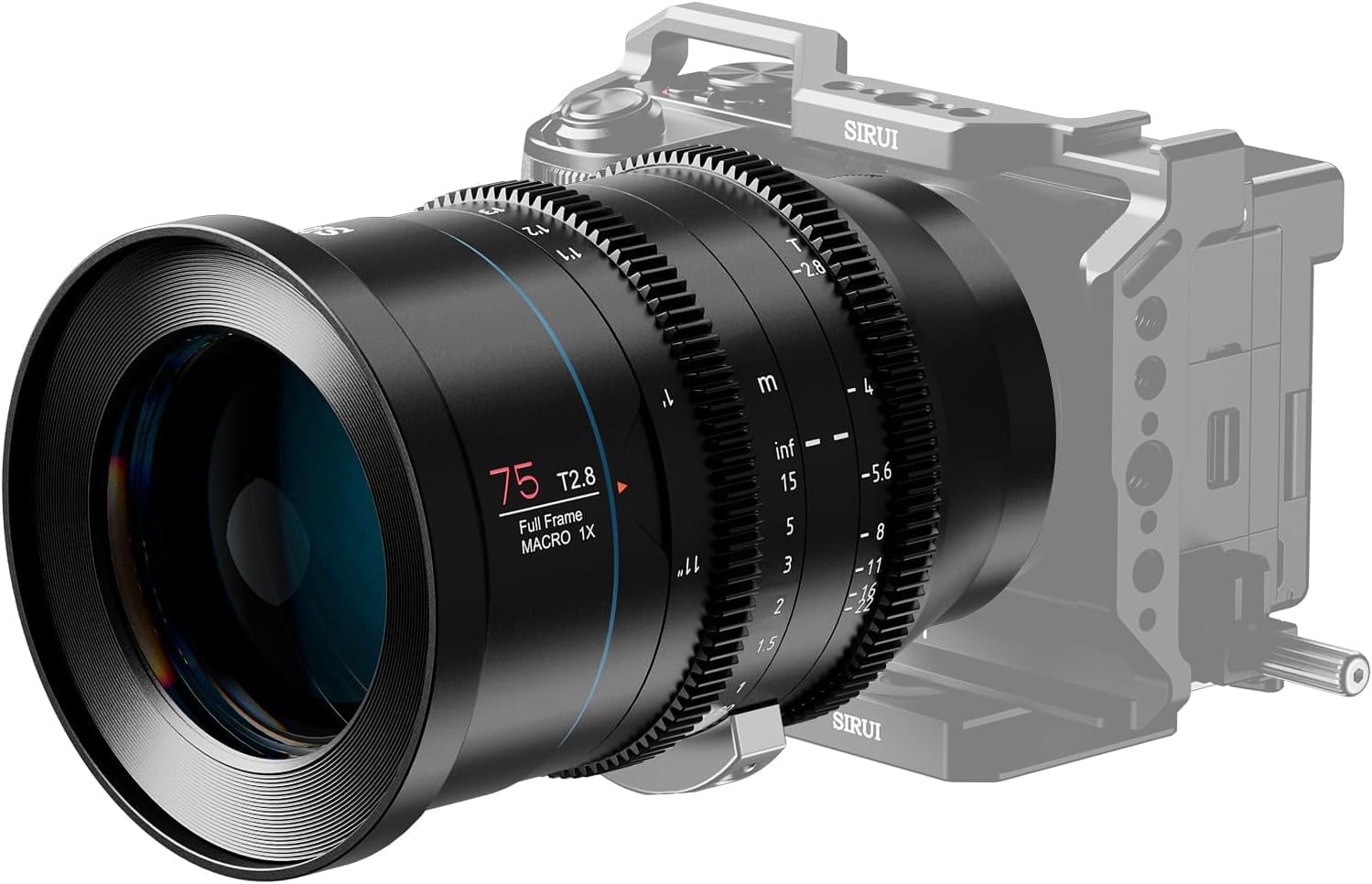

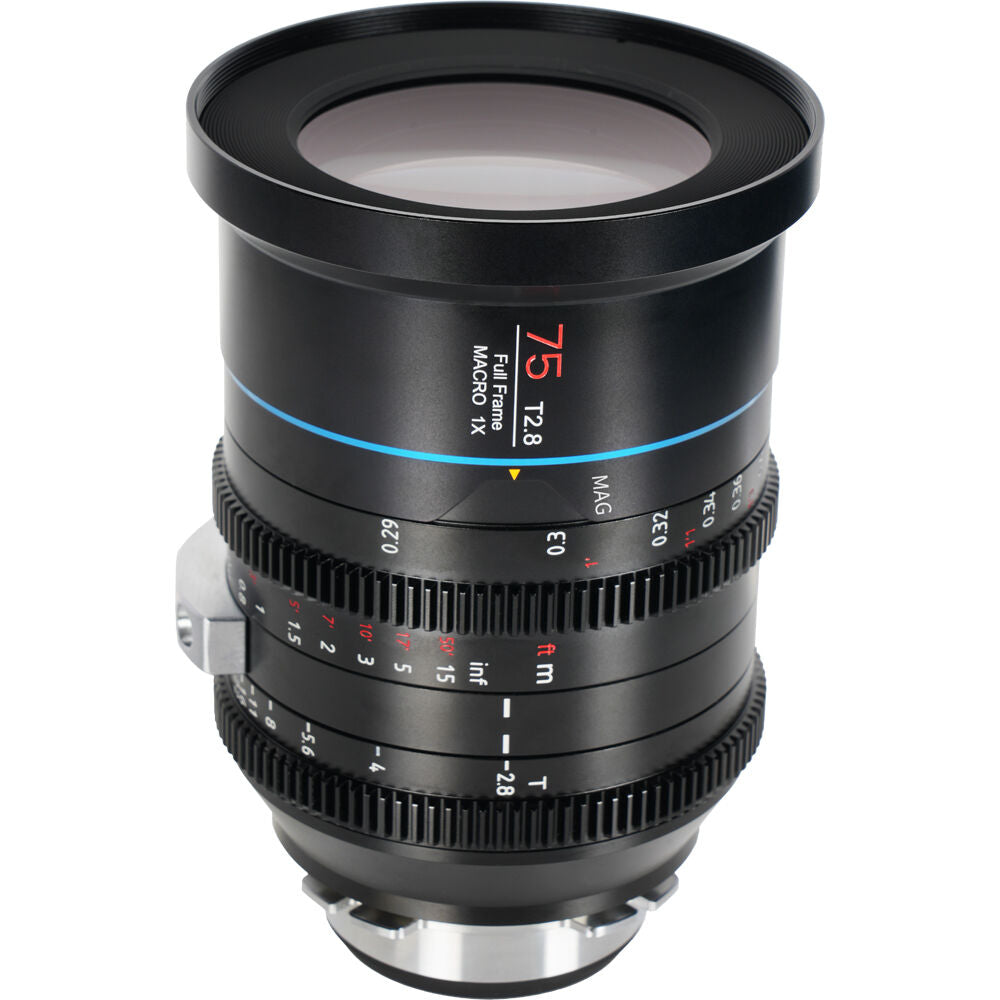

The Jupiter 75mm T2.8 Full-Frame Macro 1:1 Cine Lens from Sirui captures sharp macro shots with full-frame, ARRI PL mount cameras. It features an aperture range of T2.8 to T22 for a deep or shallow depth of field, depending on your cinematic vision. A lens construction of 12 elements in 9 groups with 13 aperture blades creates a smooth, circular bokeh with minimal focus breathing. The focus ring can rotate up to 200°, and both the focus and iris rings have 0.8 MOD cinema-standard gears for intuitive manual controls. Focus distance and iris marks are displayed in both meters and feet. The lens has a minimum focus distance of 11.4", and the 95mm front diameter is compatible with many matte boxes and adapters. A 92mm filter thread with a filter pitch of 0.75 allows you to attach filters of your choosing to further customize the light quality and effects of the lens.

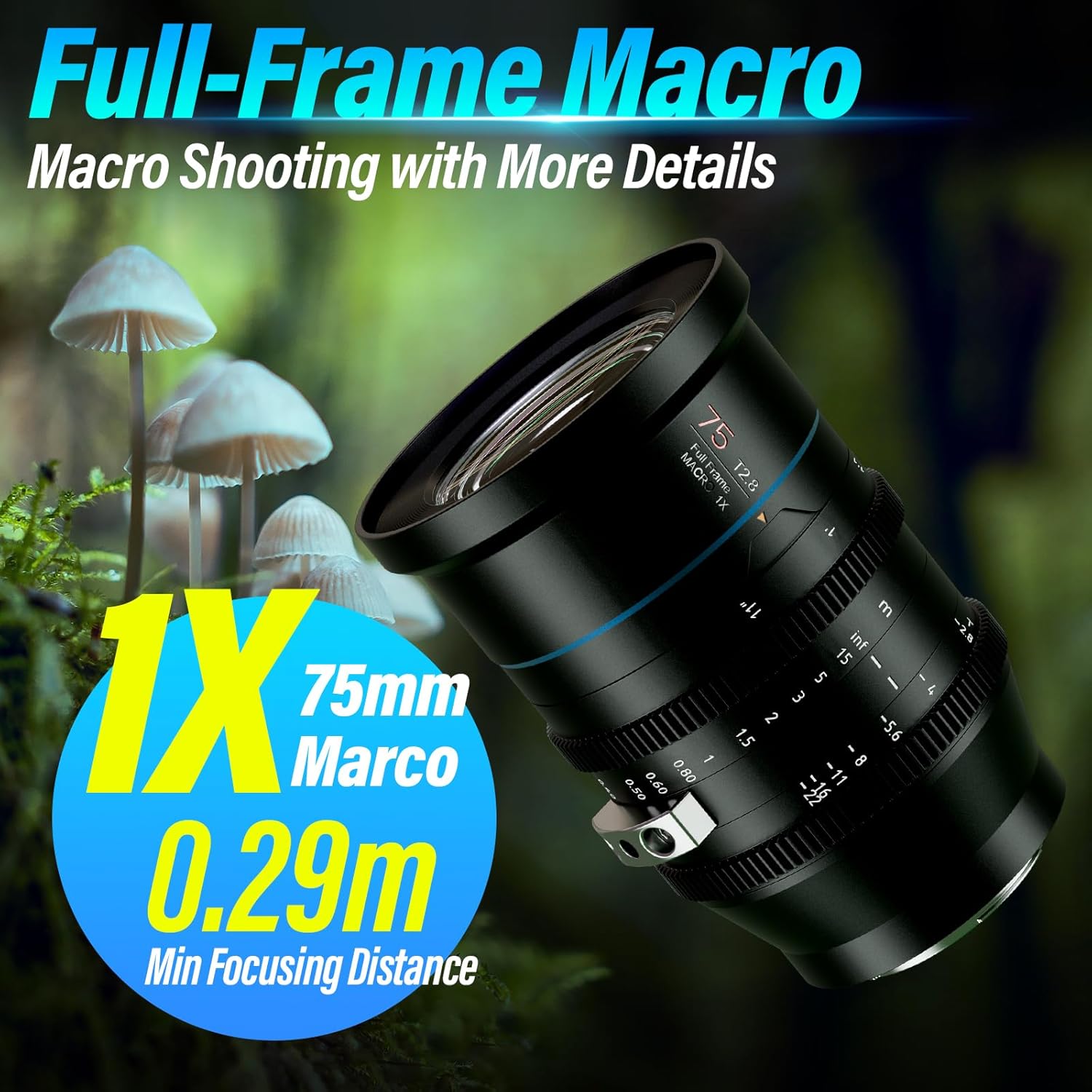

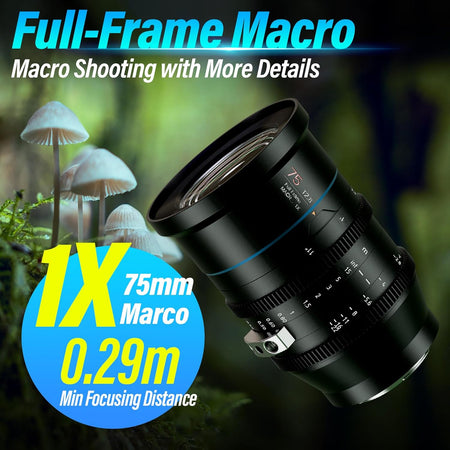

Full-Frame 1:1 Macro Coverage
Provides up to 1x macro coverage for full-frame sensor cameras at an 11.4" minimum working distance.
Compression and Bokeh
This longer focal length compresses the image, creating a sharp foreground and blurred background.
Ideal for capturing close-ups of nature, products, and emotional scenes.

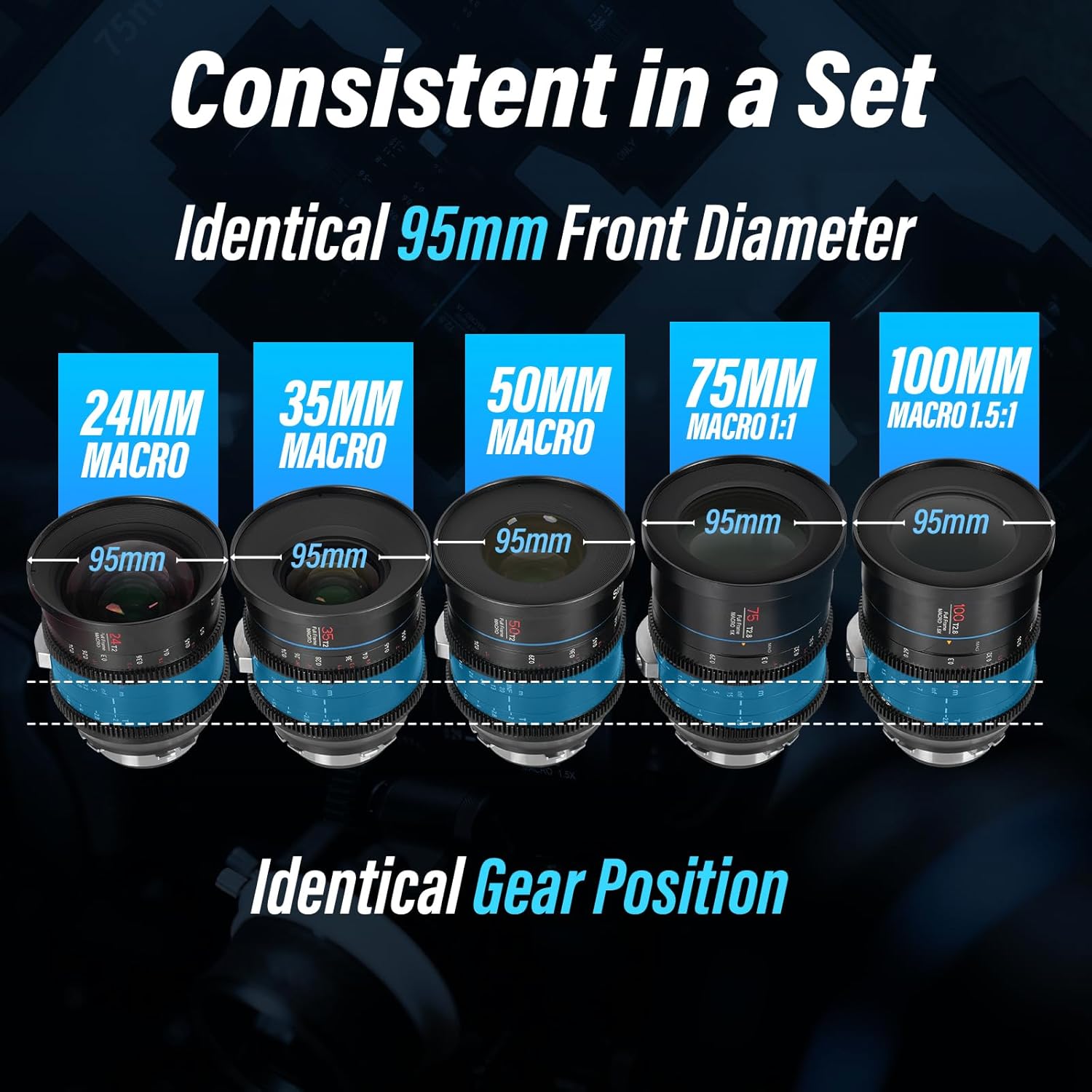

Common Design Features
Lenses in the Jupiter macro series share a common 95mm front diameter and focus and iris gear ring positions.
Enables quick lens changes by reducing the need for follow focus units or iris motors to be repositioned.
High Optical Performance
The high-quality coating minimizes flares.
Sharp imaging with excellent color accuracy.
Aberration and distortion are strictly controlled.

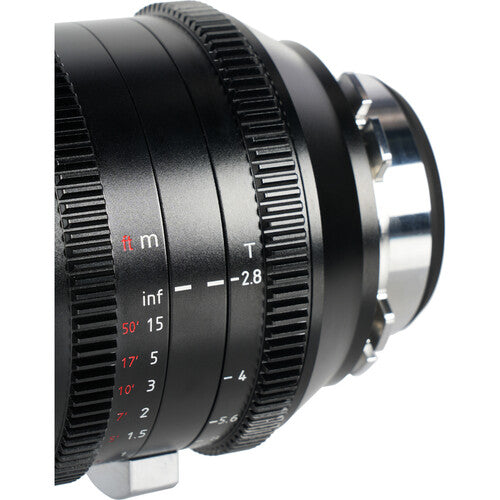

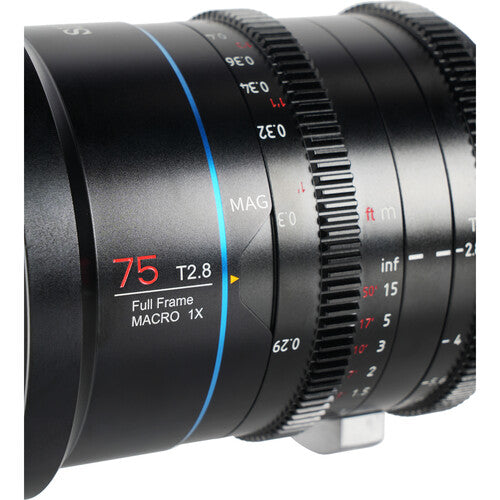

Focus Marks
Focus markings and measurements are provided in both feet and meters.
Specifications
Focal Length
75mm
Maximum Aperture
T2.8
Minimum Aperture
T22

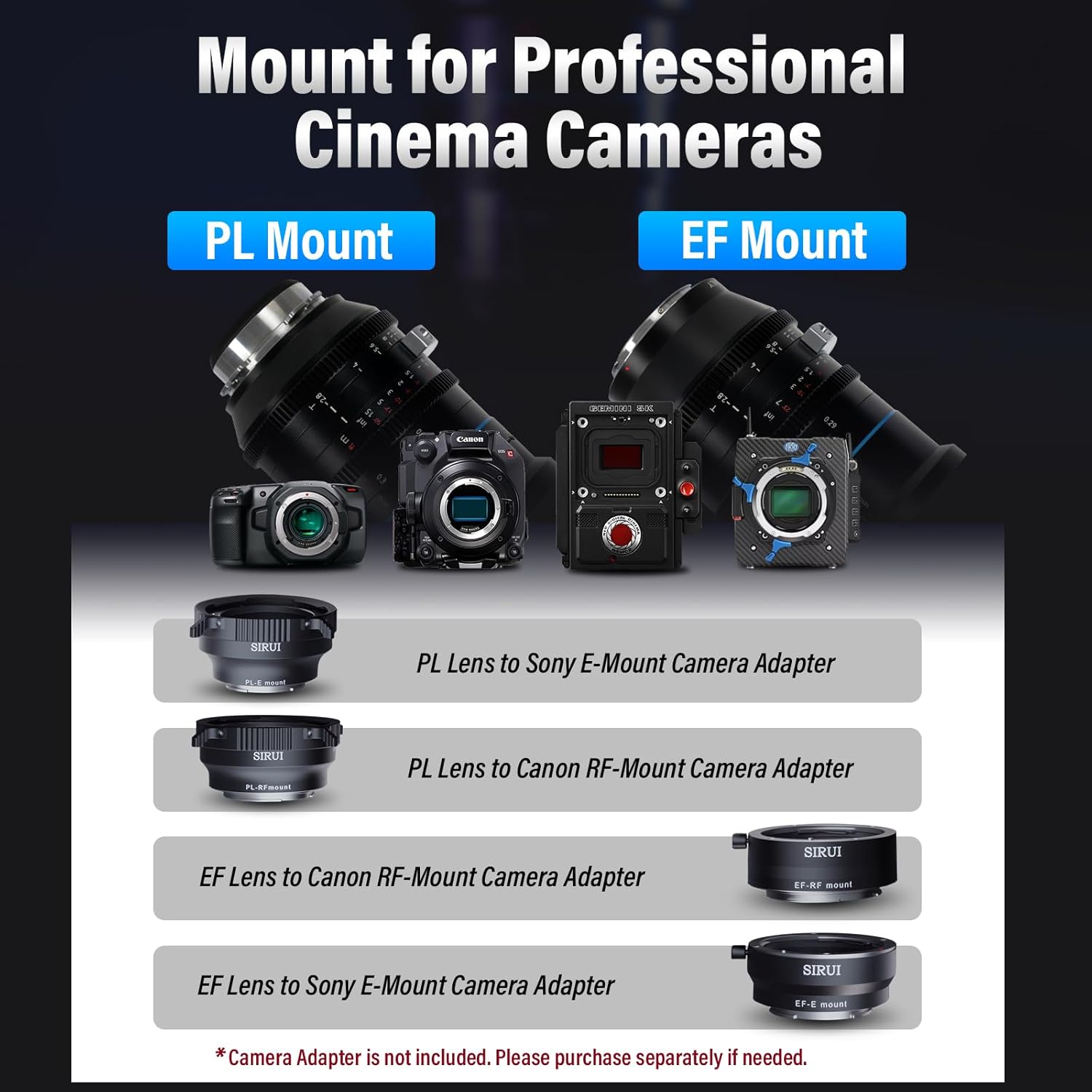

Lens Mount
ARRI PL Mount
Lens Format Coverage
Full-Frame
Filter Thread
92 mm
Interchangeable Mount
No
Image Circle
Not Specified by Manufacturer
Angle of View
Full Frame
Horizontal: 26.66°
Vertical: 18.08°
Focus Scales
Metric, Imperial
Optical Design
12 Elements in 9 Groups
Minimum Focus Distance
From Camera Sensor: 11.42" / 0.29 m
Magnification
1:1 Macro Reproduction Ratio
1x Magnification
Aperture/Iris Blades
13
Image Stabilization
No
Gear Rotation
Focus: 200°
Electronic Communication
No
Diameter
Maximum: 3.7" / 95 mm
Focus Ring: 3.5" / 88 mm
Length
5.0" / 128.1 mm

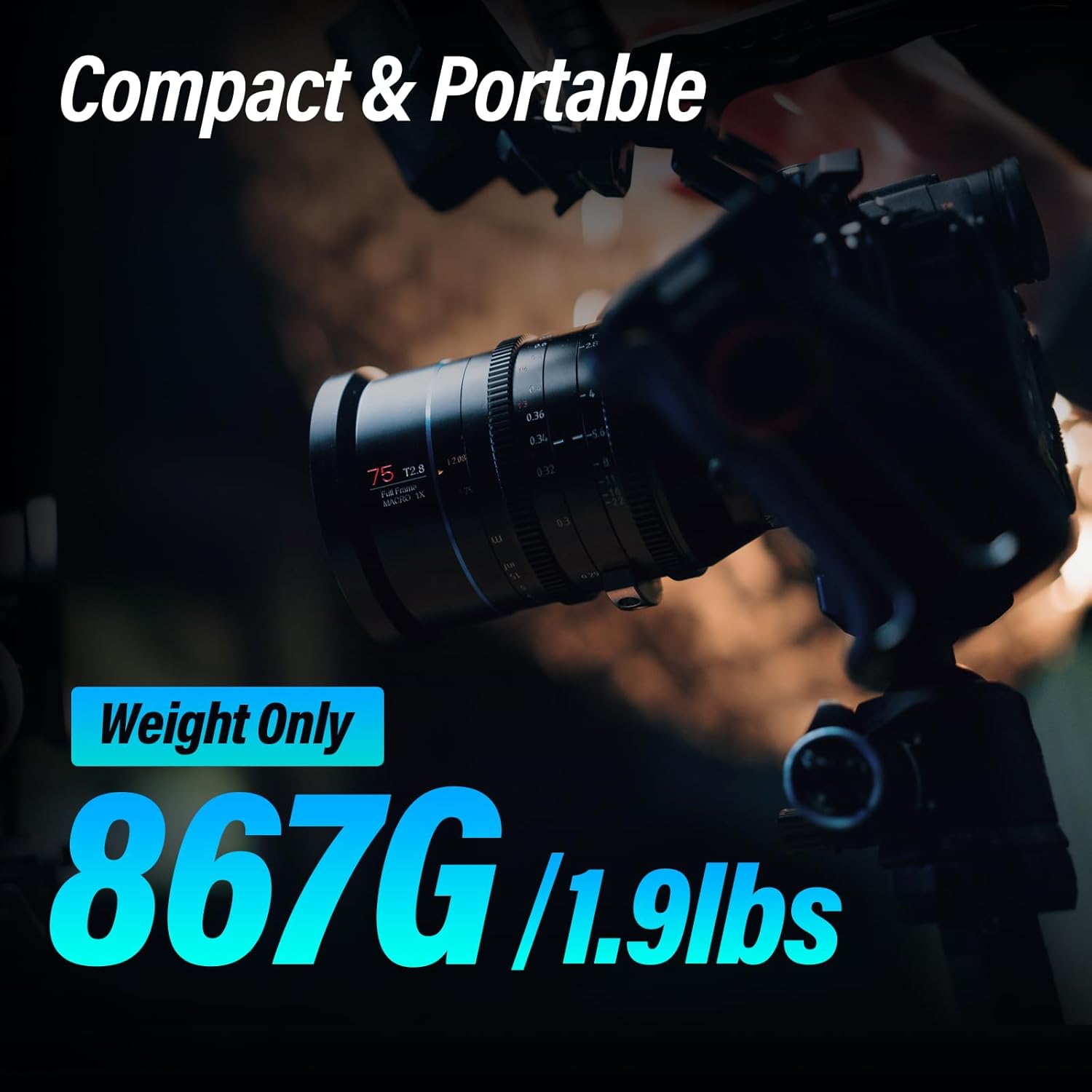

Weight
1.9 lb / 870 g
In the Box
Sirui Jupiter 75mm T2.8 Full Frame Macro Cine Lens (PL Mount)
