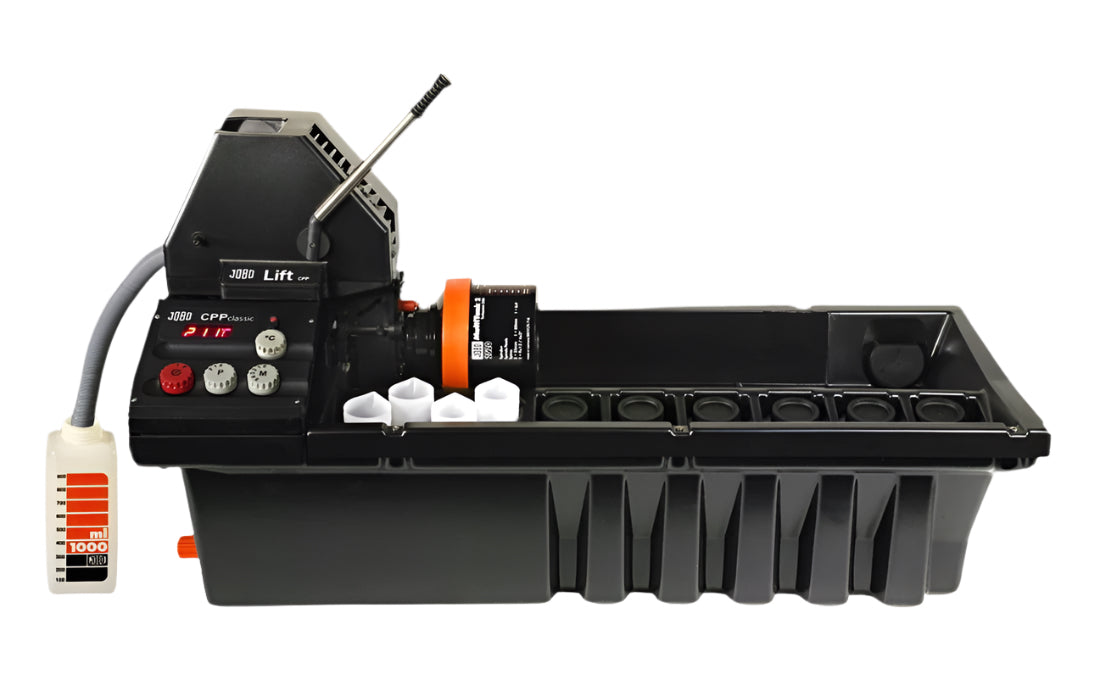

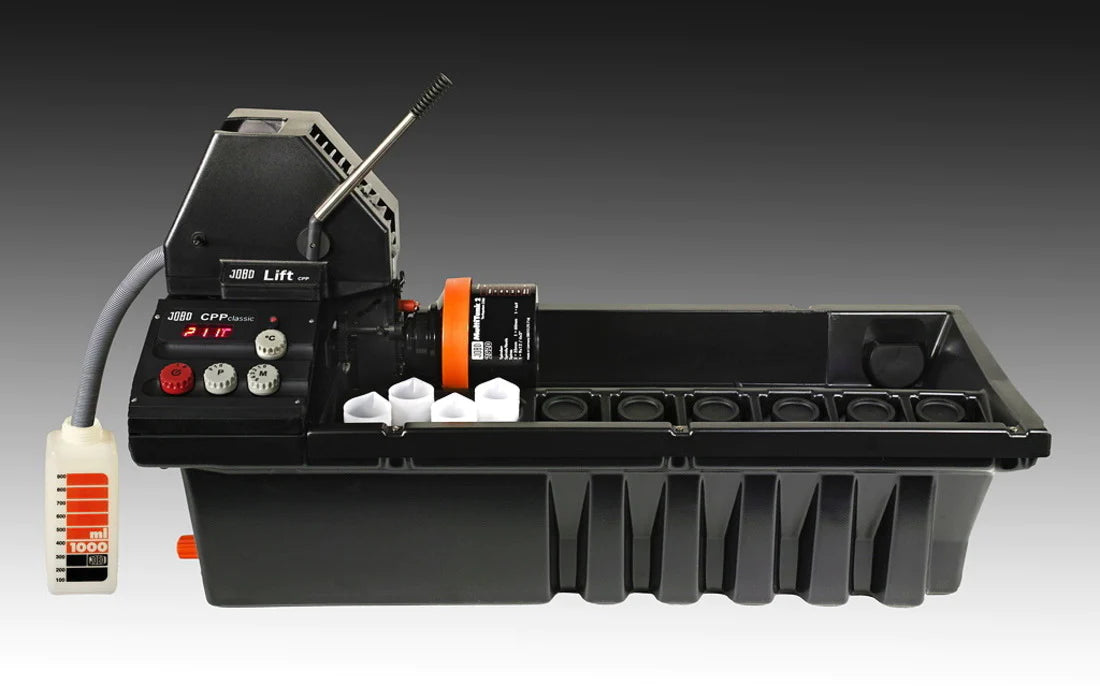

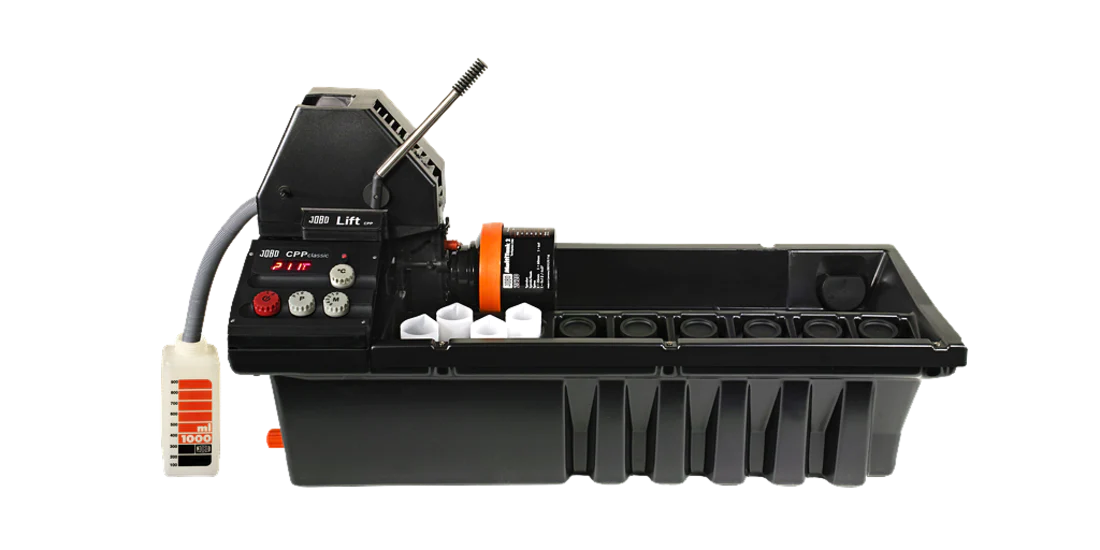

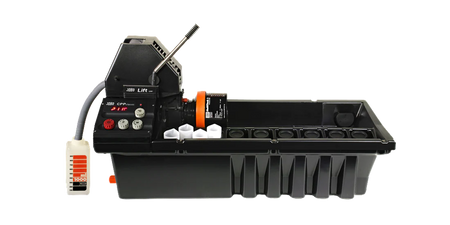

JOBO 4095 CPP-Classic Colour Film and Print Processor Lift Kit

Key Features

• JOBO CPP-Classic - control panel offers classic turning control knobs.
• Motorised semi-automated daylight film processor
• For all film formats from 35mm to 11x14 and paper sizes up to 20x24
• Automatic agitation and temperature control
• Compatible with all JOBO tanks and drums

The CPP-Classic is a semi-automated processor for virtually all film-sizes, including sheet film to be processed in the JOBO Expert Tanks 5, 6, 10 for 4x5", 5x7", and 8x10" sheet film.
The CPP-3 is also compatible with the big EXPERT Paper Drums 3062 and 3063 for paper processing up to 20x24" (50x60cm).

Based on the original design for the JOBO CPP-2, the JOBO CPP-Classic Processor with Lift is a motor-driven, temperature controlled processor for film and paper. It can accomodate film in formats ranging from 35mm to 11x14 sheet film and paper sizes up to 20x24. JOBO tanks are attached to the processor and automatically rotated in both directions for optimal and even development. This precise rotation processing offers consistent results while consuming less chemistry compared to manual inversion processing.

DIALLED TEMPERATURE CONTROL

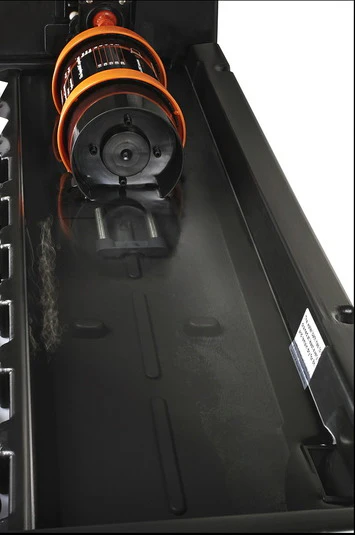

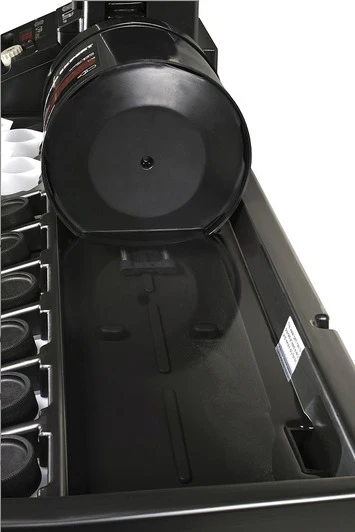

The JOBO CPP-Classic features an 18 litre water reservoir that keeps the developing tank and chemical storage bottles at the desired processing temperature. The control panel offers the well-proven classic turning control knobs. Because of them it not only looks "retro", but it can also be handled in a very intuitive way. The  timer and temperature can be set continuously from 68°F (20°C)  to 104°F (40°C), suitable for all typical photographic processes. A cold-water solenoid inlet allows the processor to cool down the water when the ambient temperature is higher than the intended process temperature. All chemical storage bottles and graduates lock into place and are kept from floating, providing an even water level and optimal temperature control throughout the entire process.

SIMPLE HANDLING WITH THE INCLUDED LIFT

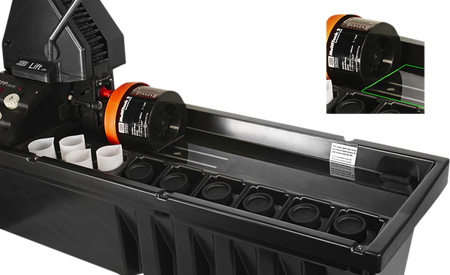

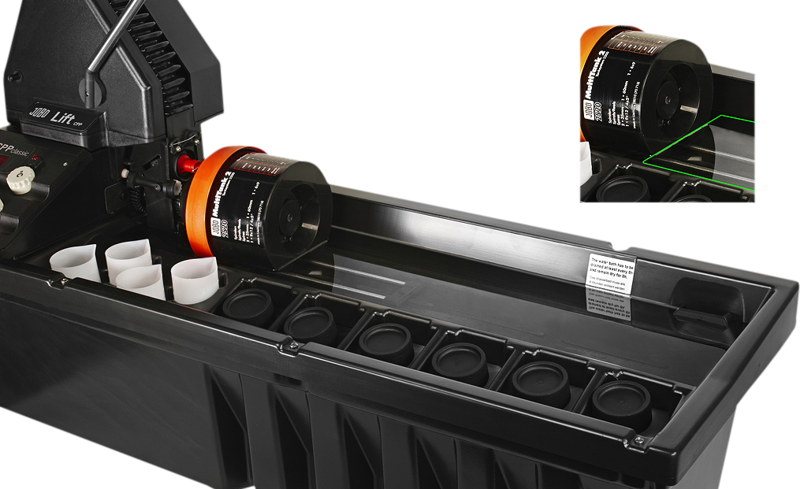

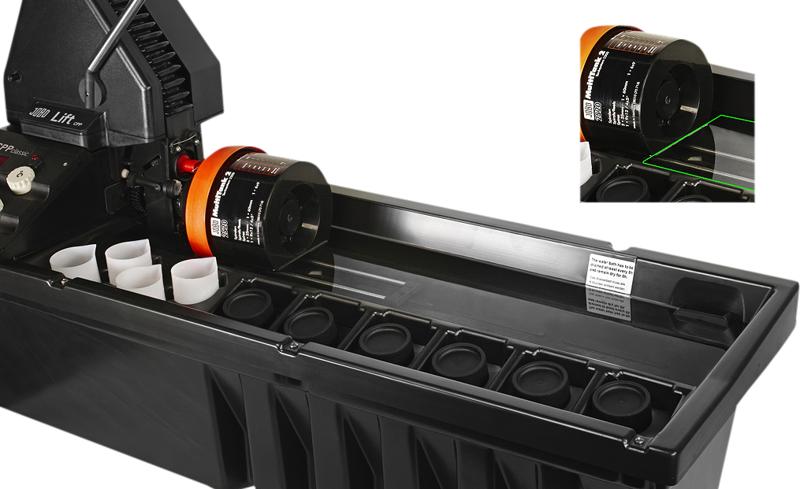

The JOBO Lift simplifies rotary film processing by eliminating the need to remove the developing tank to fill and empty it during processing. The tank is attached to the Lift using a cogged lid and allows chemistry or water to pass through. Pulling on the Lift arm raises the developing tank assembly, draining the liquid inside through the Lift assembly and out through a drainage hose. Draining into your chemical storage bottles is a great way to conserve chemistry. Rotation speed can be adjusted using the LCD control panel.

Scope of Delivery:

• 1 CPP-Classic Processor
• 6 scaled bottles (1000 ml)
• 4 Beakers (260 ml)
• 1 CPP Lift incl. rollers
• 1 MultiTank 2 incl. 1 reel

Specifications

FILM AND PAPER CAPACITY:

• 5x 135-36
• 6x 120
• 12x 4x5” / 9x12
• 6x 5x7"
• 5x 8x10"
• PAPER up to 50x60cm (20x24")

TECHNICAL DATA:

• JOBO CPP-Classic - control panel offers classic turning control knobs.
• Measures: 34 cm x 97,5 cm x 39 cm (HxWxD)
• Net Weight: 9 kg
• Voltage: 230V/50Hz 330W (AU Plug)
• Temperature Range: 20-40°
