JOBO 3520/22K Mistral 3 Drying Cabinet Kit for Sheet Films
Key Features
- Dry up to 12 sheets of 4x5 or 8x10 Sheet Films
- Adjustable Fan
- Built-In Particle Filter
- Wall Mountable
- 230V Power Supply
- Weighted and Non-Weighted Clips Included.
JOBO - my photo lab.

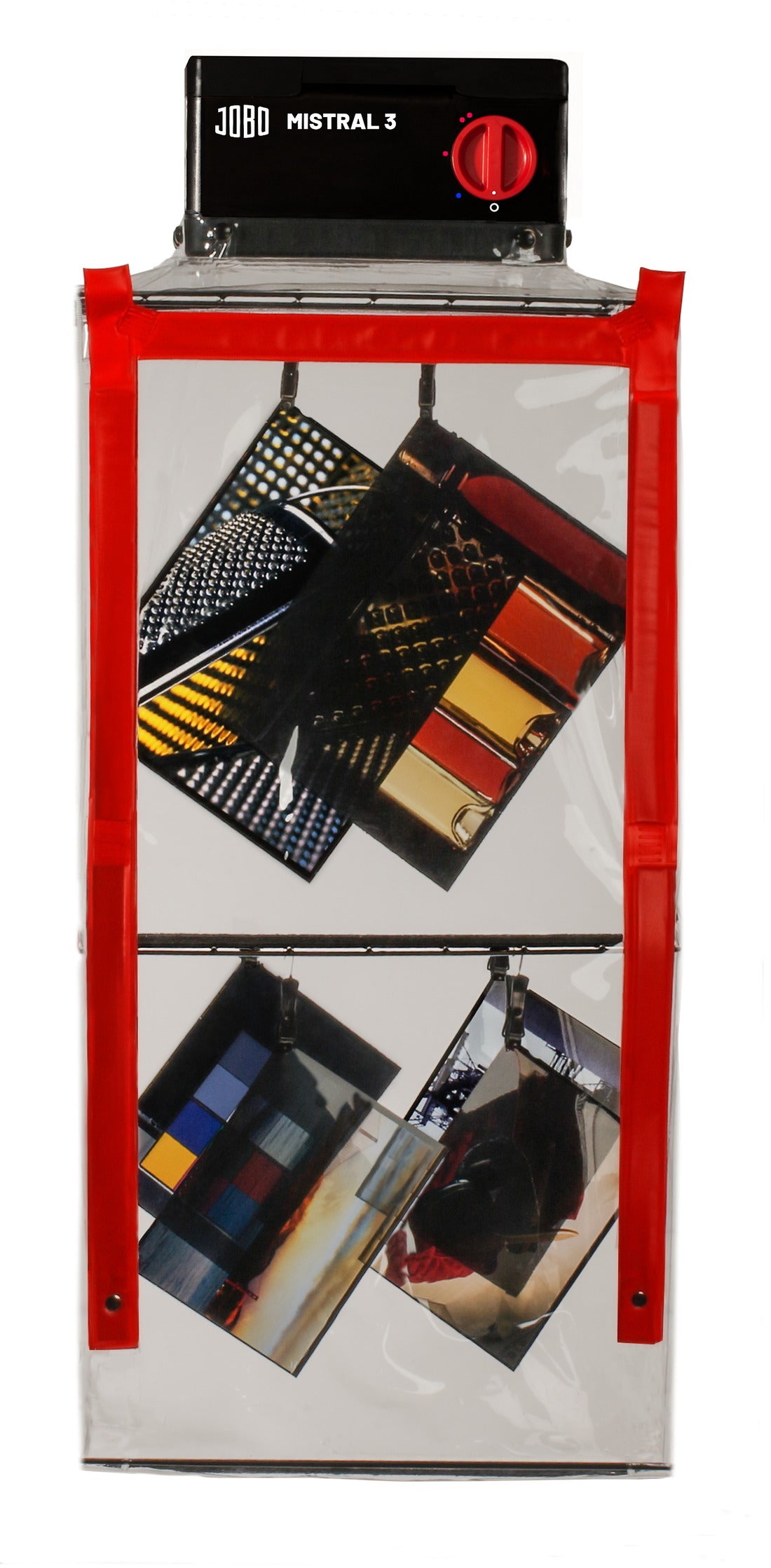

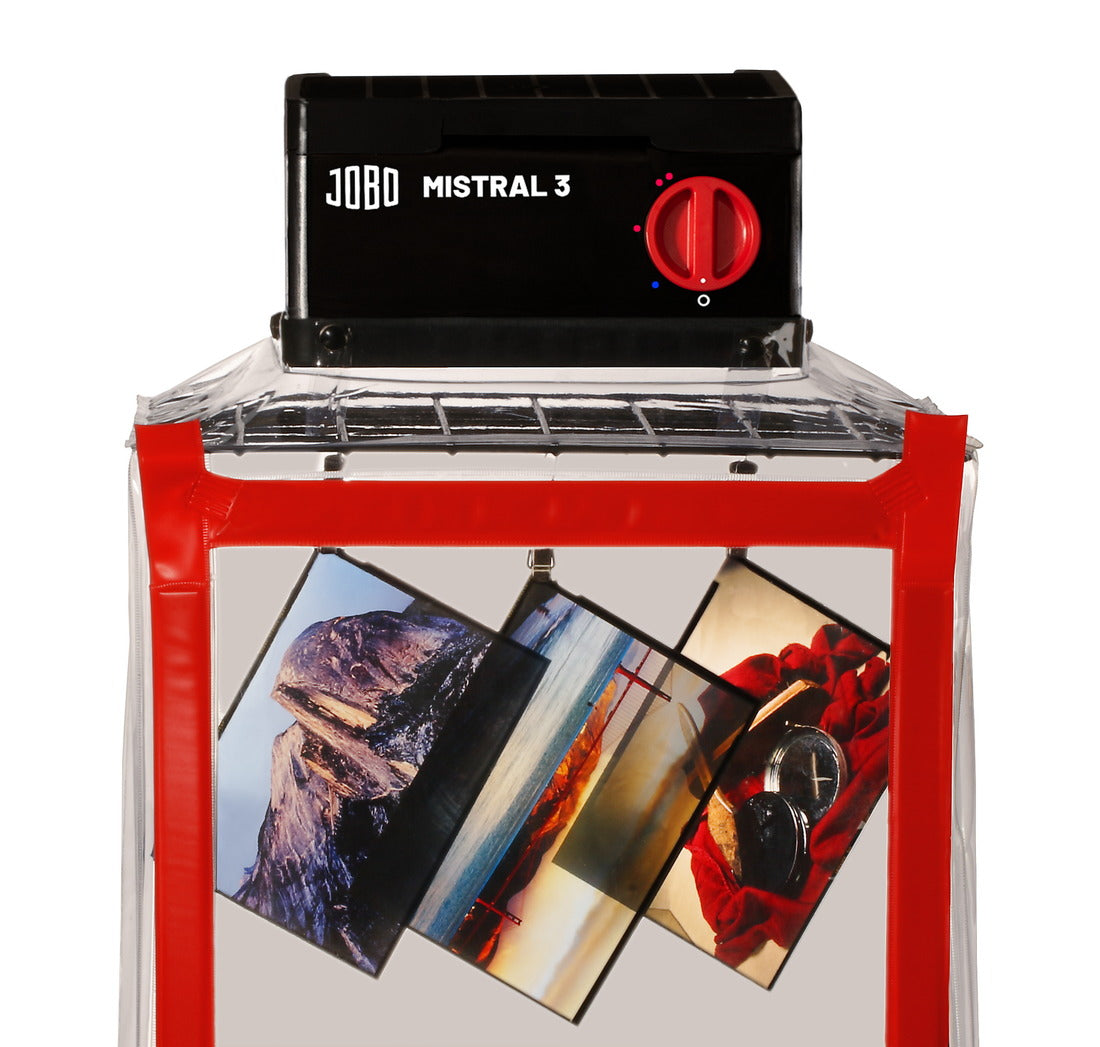

With the JOBO Mistral 3 your own photo lab is really completed. In no time at all, your valuable negatives or slide films are dried to be further processed. Dust-free, scratch-free - and fast.
Can Dry up to 12 sheets of 4x5 or 8x10 Sheet Films with in 30 min
Powerful film dryer for gentle and fast drying over two heat levels with approx. 35°C and 45°C. Strong heating capacity for dry periods of 15 to 30 minutes. With additional cold air stage. Dust-free drying thanks to a replaceable filter. The magnetic tape closures on the drying shaft can be easily opened and closed without jamming. By dispensing with zippers, the risk of scratches is significantly reduced. Drying shaft made of robust soft PVC. Device head either with 35mm or plan film slot. 2 pairs of weighted/non-weighted film hanger clips are included.

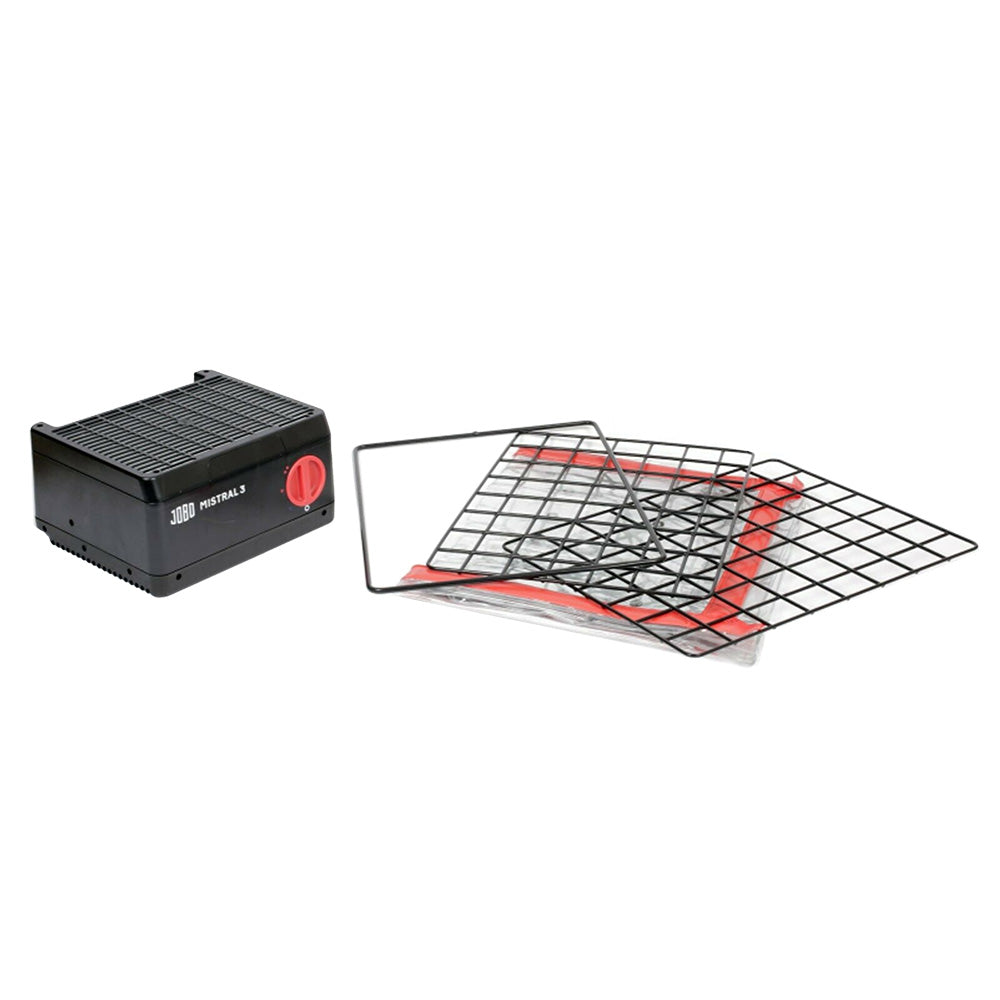

Kit Includes

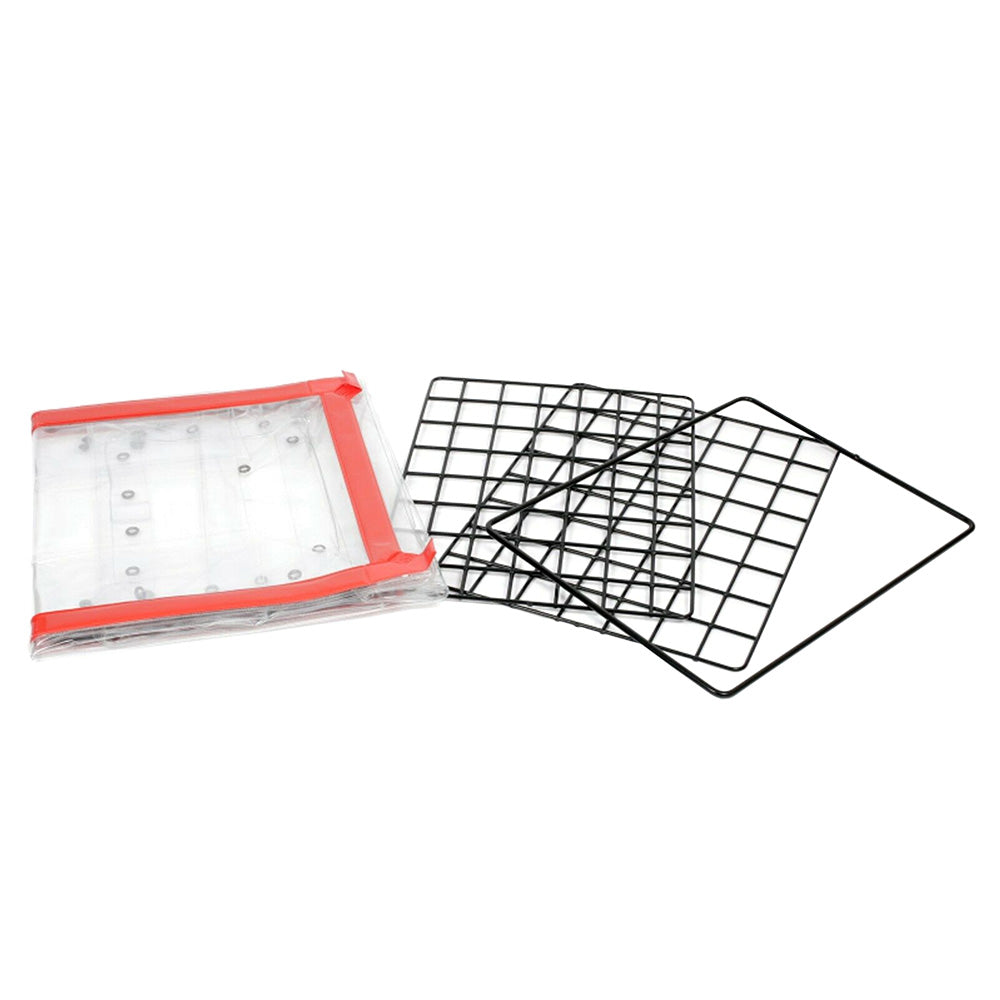

3522N - JOBO Mistral 3 Drying Cabinet Shaft for Sheet Films
- Drying Cabinet with metal frame & lattice
- 2 pairs of film clips, weighted & non-weighted

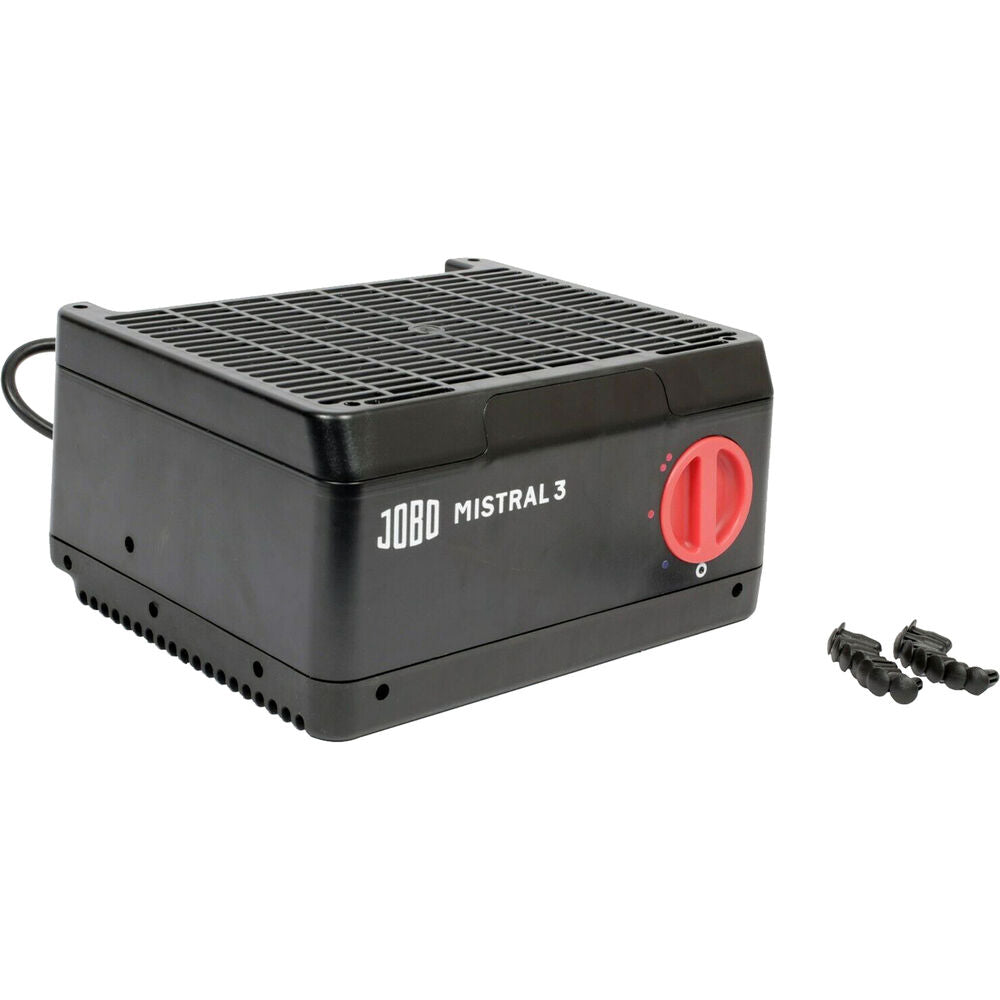

3520 - JOBO Mistral 3 Film Drying Head - Motor Only
- Jobo Mistral 3 Film Drying Head - Motor Only
- Dust Filter
- 12 Plastic Pins
Specifications
3522N - JOBO Mistral 3 Drying Cabinet Shaft for Sheet Films
- Capacity up to 12 sheets of 4x5 or 8x10 Sheet Films
- Dimensions Drying Shaft # 3522N W 40 x D 30 x H 80 cm
3520 - JOBO Mistral 3 Film Drying Head - Motor Only
- Dimensions Motor head # 3520 W 25 x D 21,5 x H 12 cm
- Heating Stage 1 = Drying Temp approx. 35°C
- Heating Stage 2 = Drying Temp approx. 45°C
- Heating Element: Contact-voltage proof. Enclosed overheating protection 540W
- Fan: Ventilating unit with maintenance free motor
- Dust Filter: exchangeable
Accessories
JOBO 3520/22K Mistral 3 Drying Cabinet Kit for Sheet Films
3520 - JOBO Mistral 3 Film Drying Head - Motor Only
3521N - JOBO 3521N Mistral 3 Drying Cabinet Shaft for 35mm and 120 Roll Films
3522N - JOBO 3522N Mistral 3 Drying Cabinet Shaft for Sheet Films
3520/21K - JOBO Mistral 3 Drying Cabinet Kit for 35mm & 120 Roll Films
3520/22K - JOBO Mistral 3 Drying Cabinet Kit for Sheet Films
Warranty
JOBO 2-YEAR AUSTRALIA WARRANTY
JOBO products come with an Australia Warranty for a period of 24 months from the date of purchase with the following terms and conditions.
- The JOBO Australia Warranty covers material and manufacturing defects (excluding chemistry in liquid or powdered form) existing at the time of the purchase and during the first 24 months.
- The JOBO Australia Warranty only comes into force if a proof of purchase is presented during the warranty period, you will have the right to have any manufacturing defect repaired free of charge.
- The JOBO Australia Warranty is ONLY applicable to JOBO products purchased from Authorised Dealers within Australia.
- The JOBO Australia Warranty does not cover normal wear and tear or deterioration as well as scratches or breakages due to physical damage, water or fire damage, loss, or theft.
- The JOBO Australia Warranty does not cover Chemistry products in liquid or powdered form.
