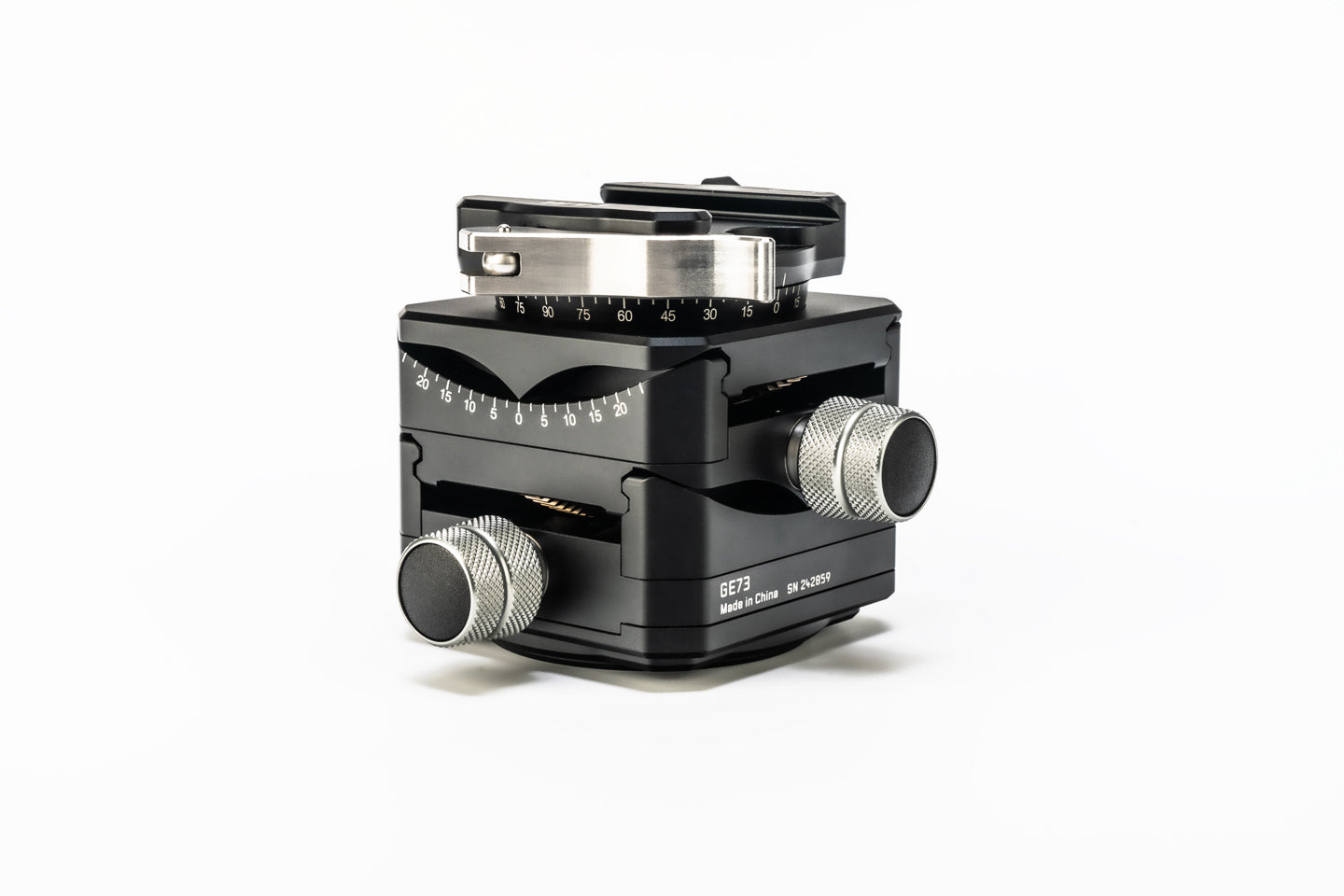

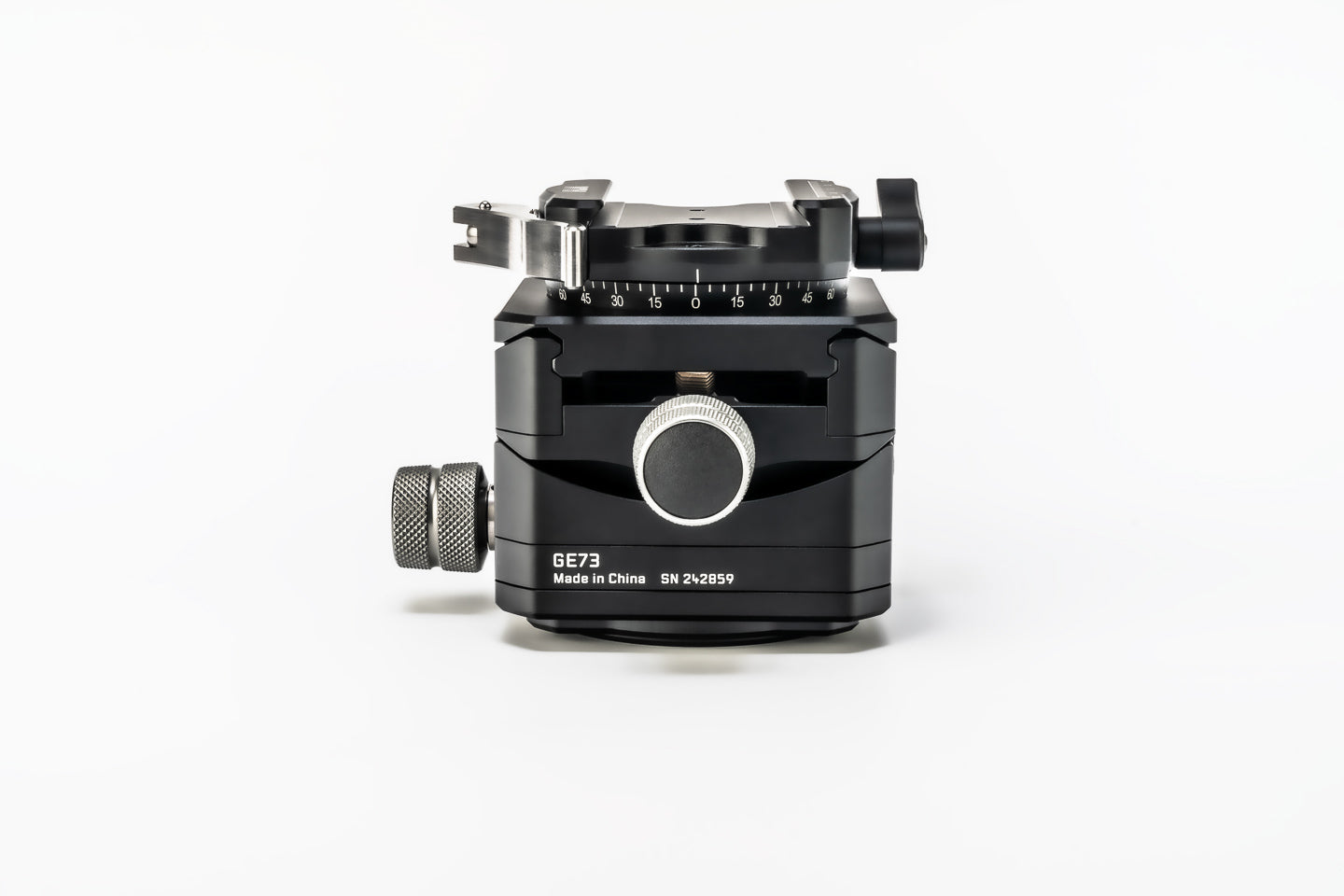

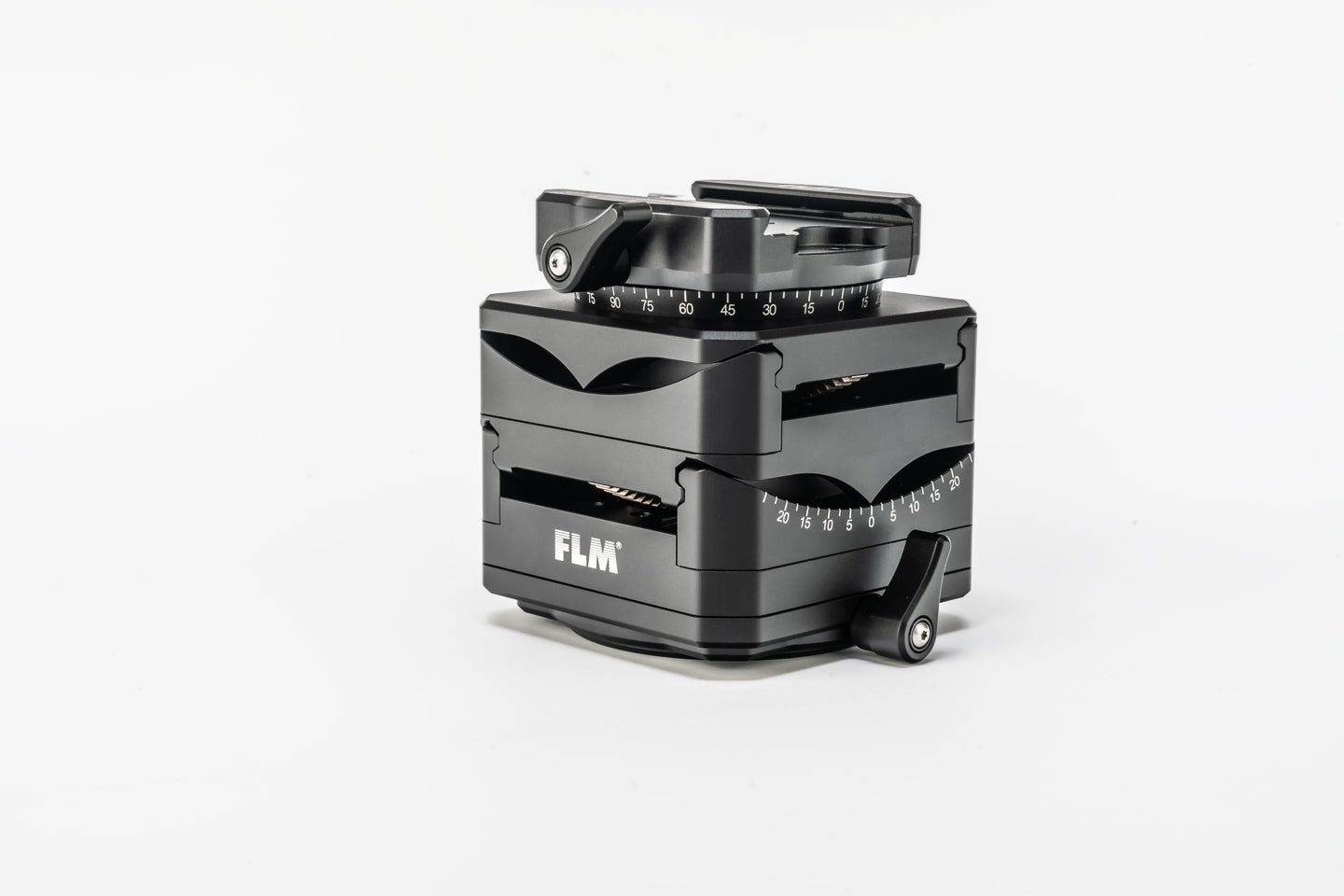

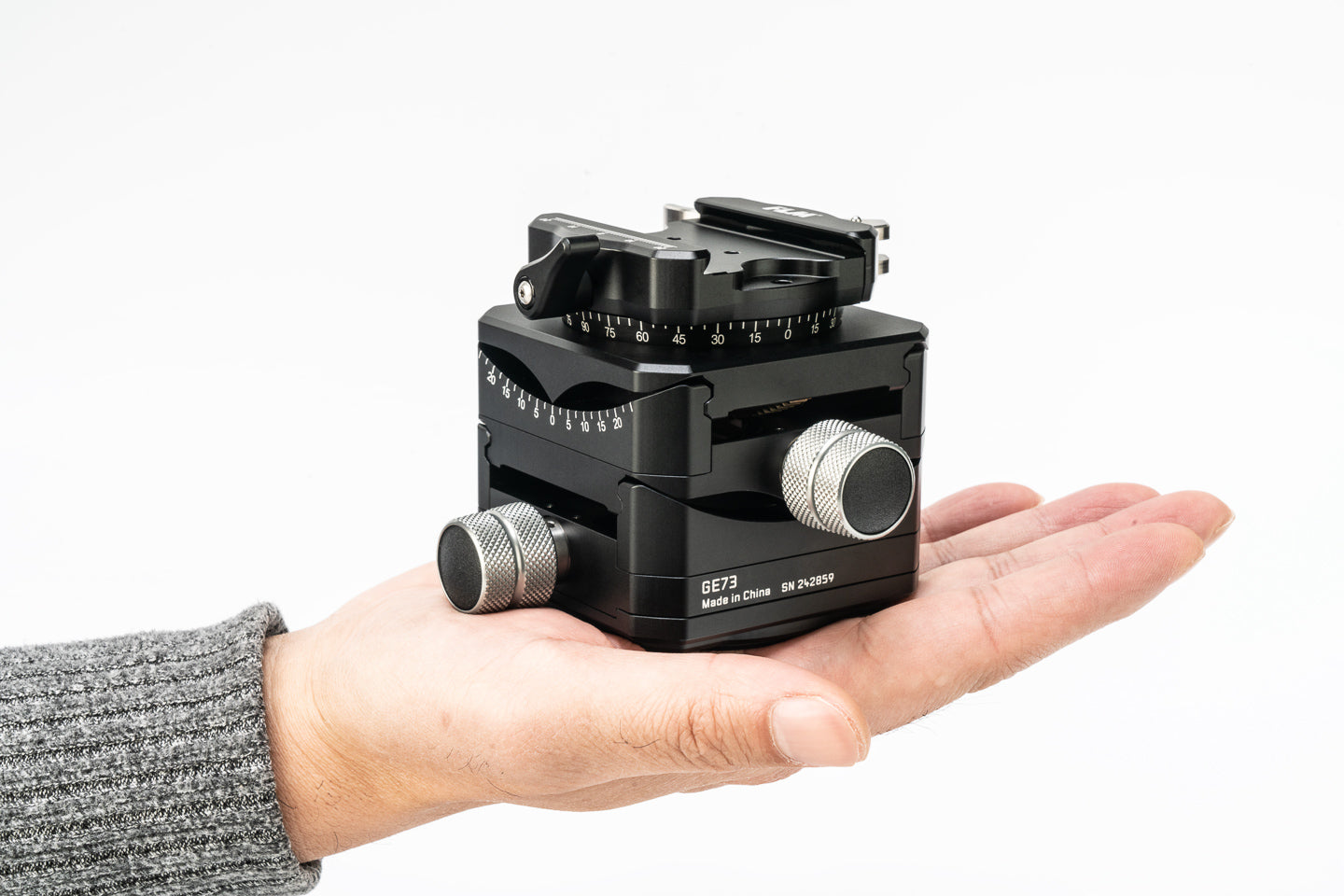

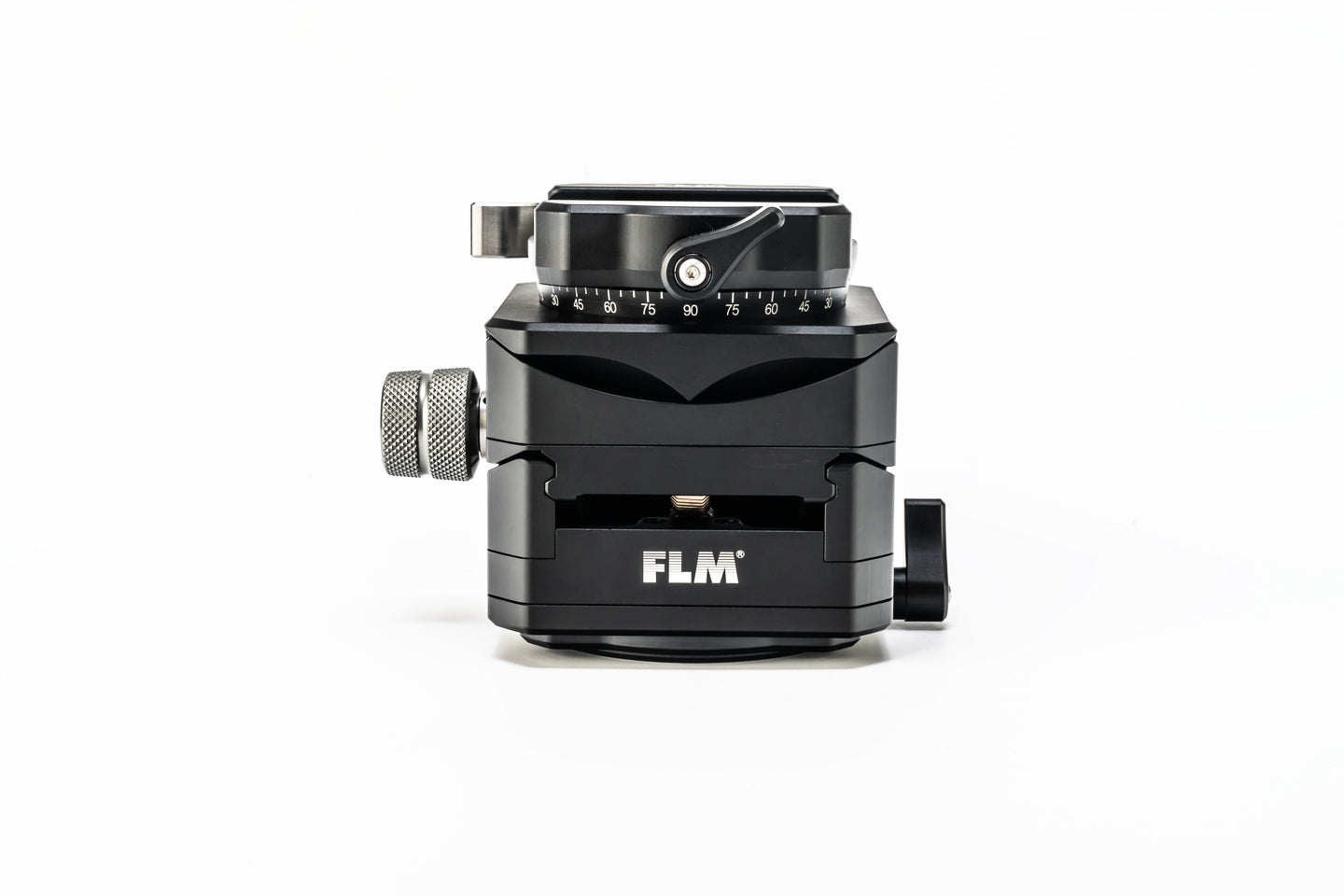

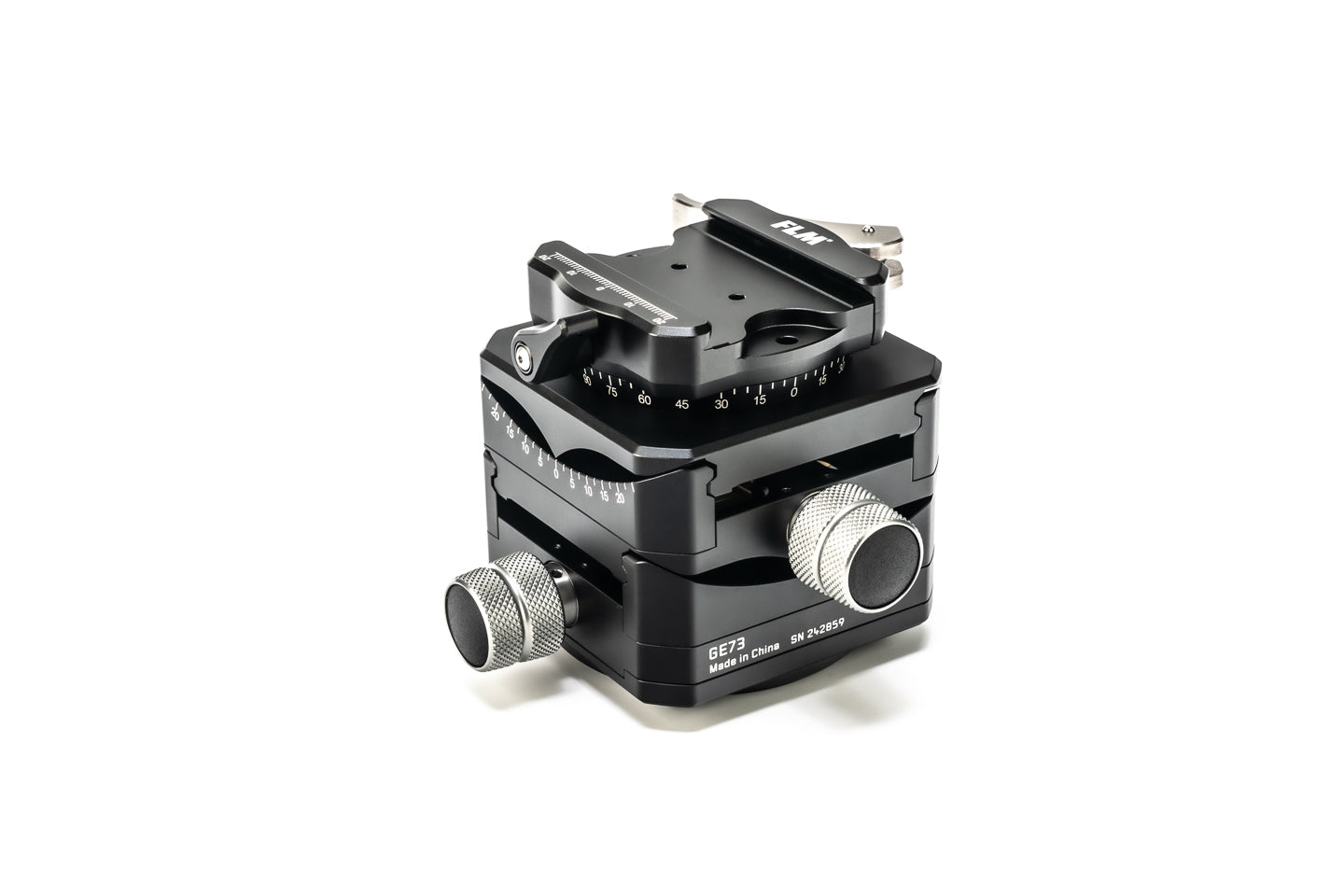

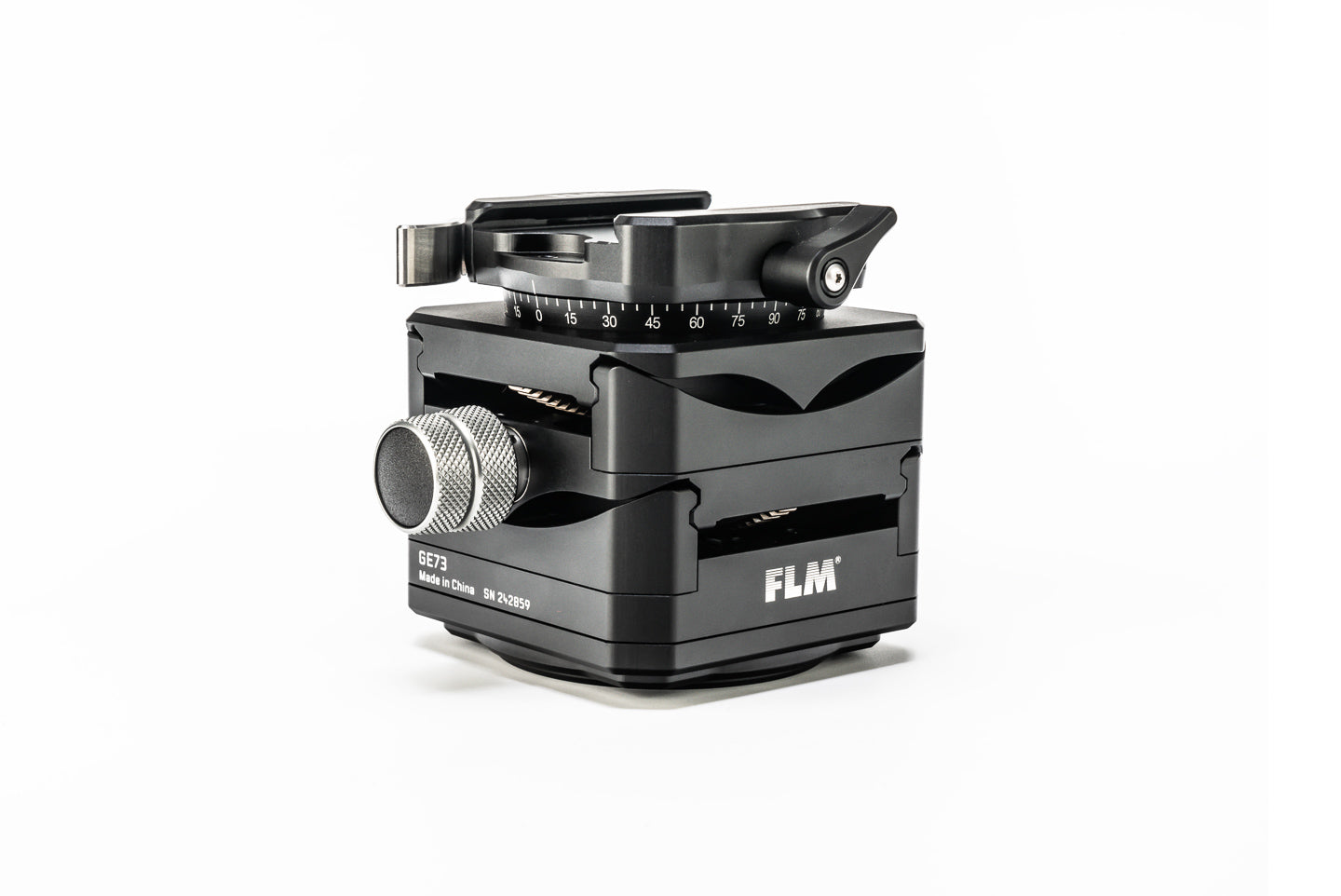

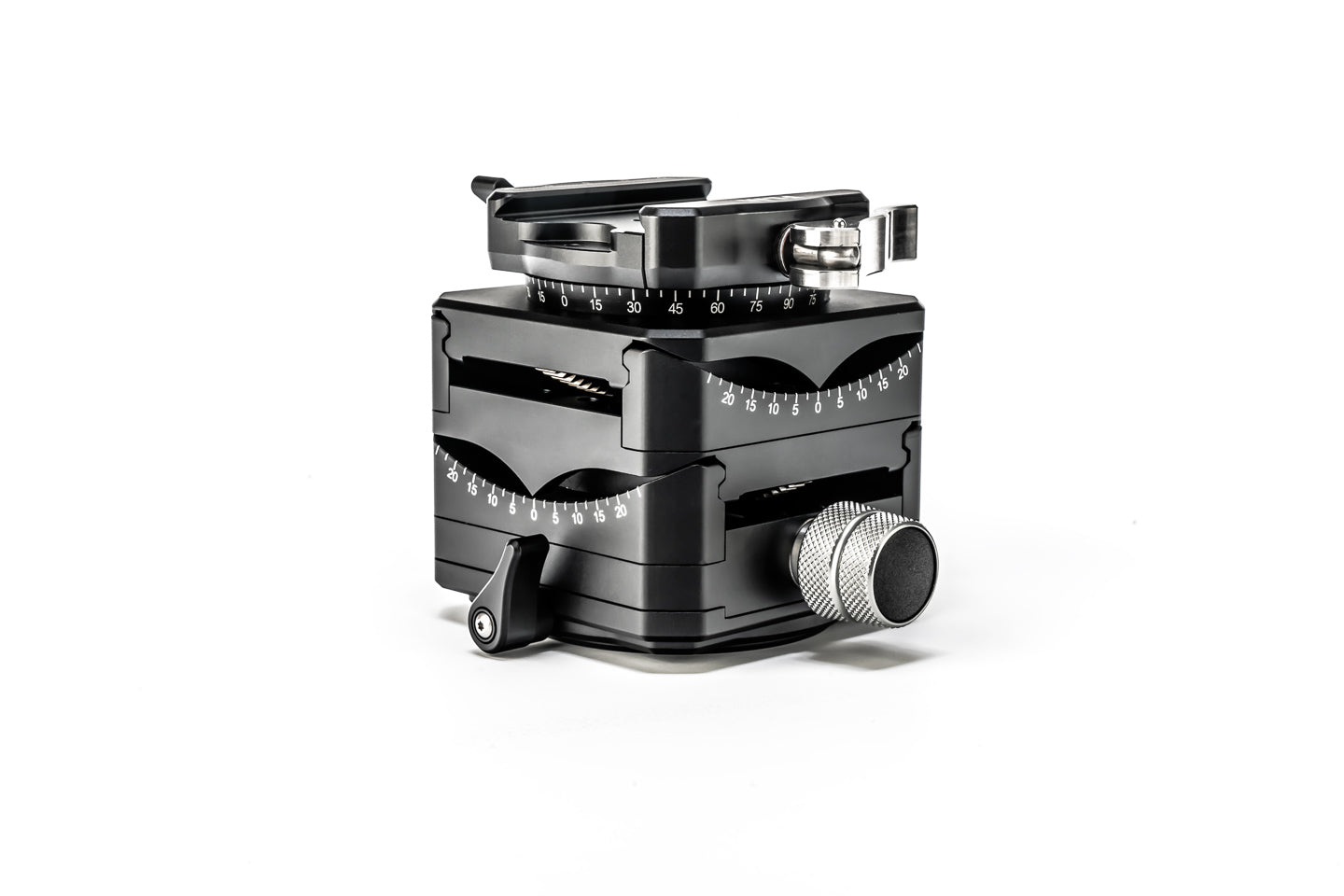

FLM GE73-L Atlas Geared Head with Lever Clamp (62mm)
Key Features
- Lever Clamp
- Geared Head - 62mm Base
- Load Capacity: 110.23 lb / 50 kg
- Arca-Type Compatible Clamp
- 13 Degrees od Movement on all 3 Axes
- Independent Panning Base
- Easy Grip Knobs & Levers
- 10-Year Manufacturer Warranty
The FLM GE73 Geared Head is from the Atlas family of heavy-duty professional gear. It's made with a 10 Year manufacturer's warranty, and is dust, water and sand resistant.
The FLM GE73 Atlas Geared Head can handle just about any camera and lens combination with smooth silkiness and will never lock up, drift or buckle under the load.
Featuring easy-grip knobs and levers, 13 degrees of movement on all 3 axes, independent panning base and a solid Arca-compatible clamp, this tripod head will appeal to beginner and pro alike.

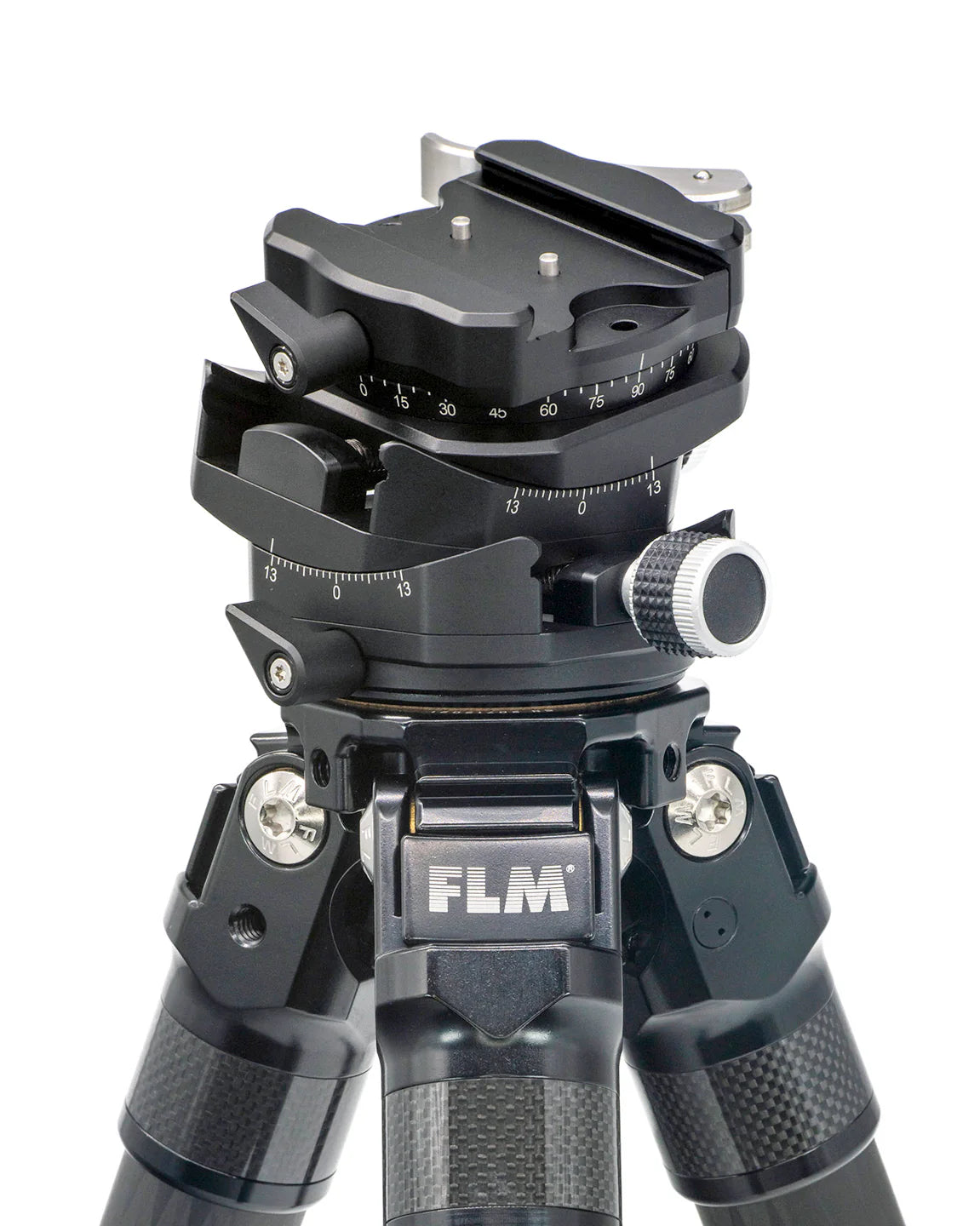

- Recommended Tripod - CP30, CP34, CP38
- Recommended Cameras - DSLR, Medium Format (film & digital), Large Format (4x5, 8x10)
- Recommended Lenses - 300mm, 400mm, 600mm
NOTE: the lever clamp accepts all Arca-compatible plates and L-brackets except older FLM plates. Also PhaseOne XC plates will not work with this clamp.
Specifications
| Load Capacity | 110.23 lbs / 50kg |
| Base Diameter | 2.28" / 58mm |
| Weight | 1.46 lbs / 660g |

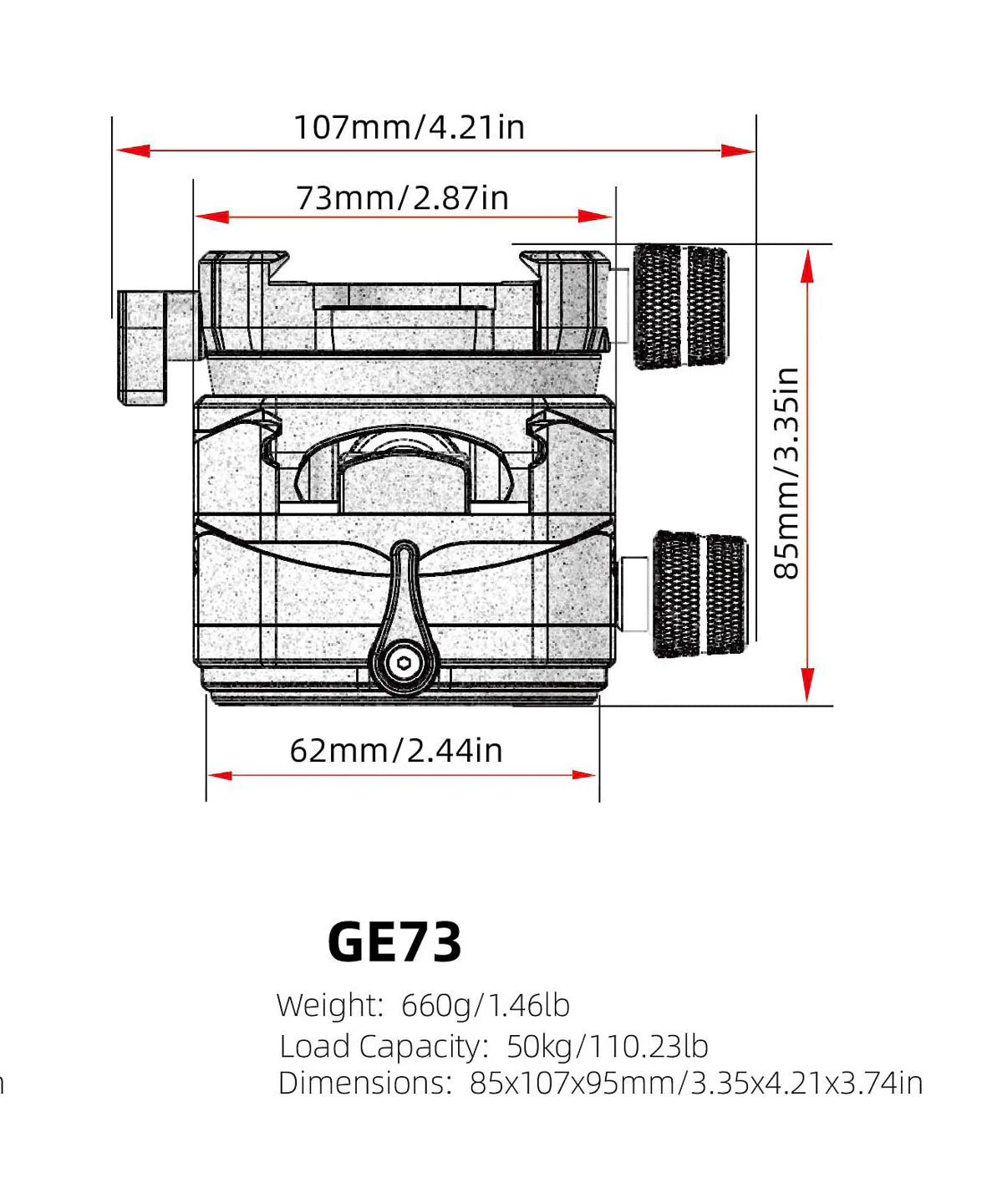

| Dimensions | 3.35" x 4.21" x 3.74" / 85 x 107 x 95mm |
| Tilt angle: | ±25° + 65° |
| Base rotation: | 360° |
| Camera connector rotation: | 360° |
