FLM CB-24FB/PRS-45 Centre Ball Head with Friction CB-24FB with Nano Quick Release Set PRS-45
Development by DDSHOPAPPS

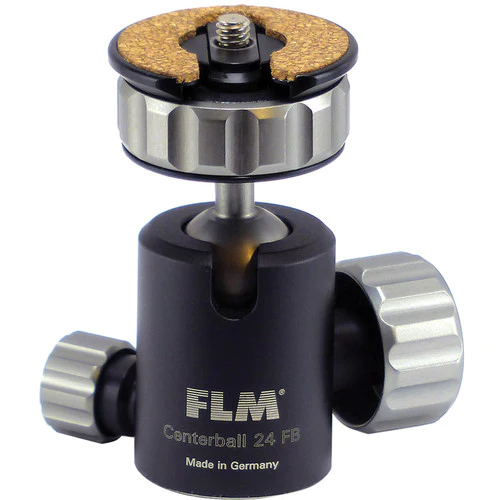

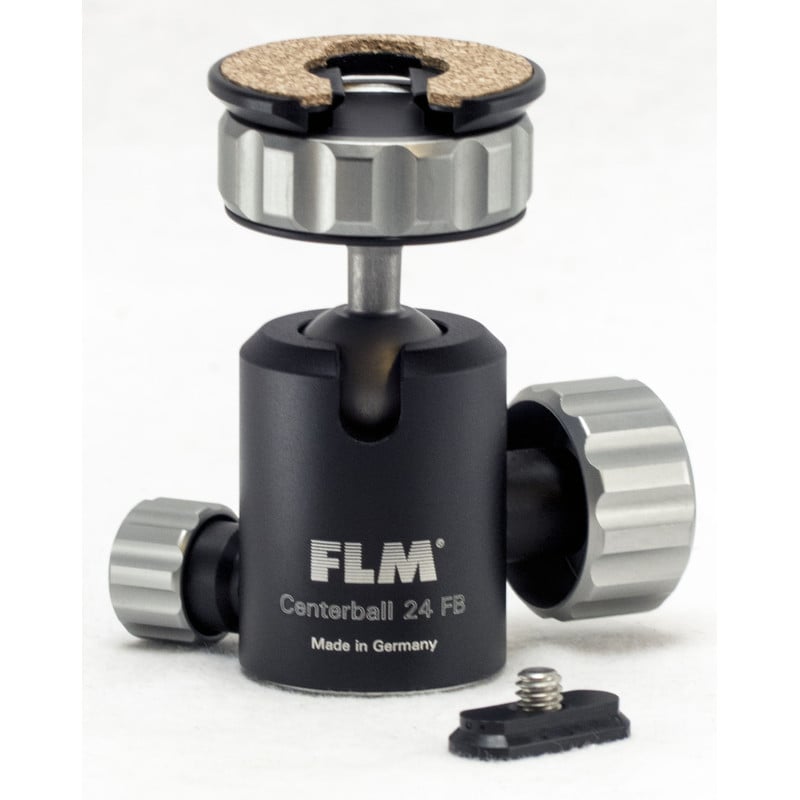

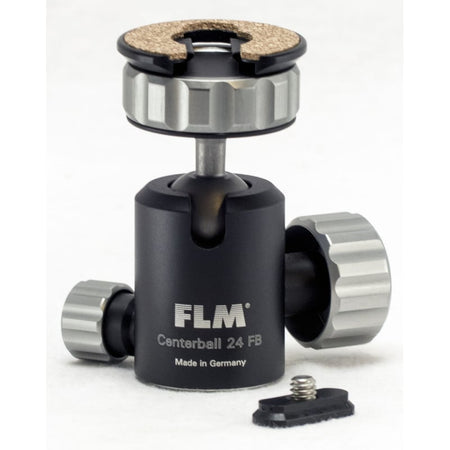

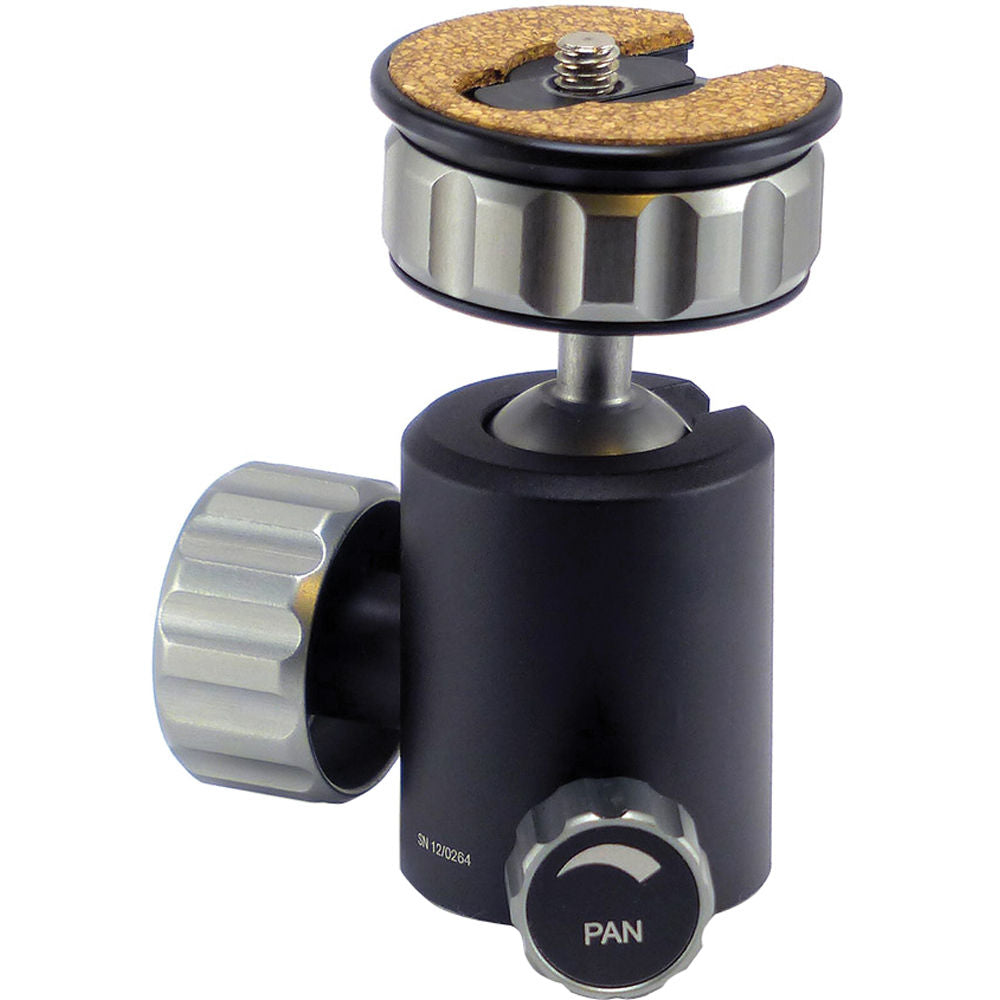

FLM CB-24FB Ball Head (24mm) with PRS-45 Quick Release System
Key Features
- Load Capacity: 15 kg
- Max Height: 8.1 cm
- Ball Diameter: 24 mm
- Weight: 0.186 kg
- Friction Control
- PRS-45 Quick Release System
- 1/4"-20 Camera Mount Thread
- Cork Coated Base
- 10-Year Manufacturer Warranty
- Made in Germany
This unique kit by FLM consists of the CB-24FB Ball Head paired with the PRS-45 Quick Release System, which includes the PRB-45 clamp and PRP-45 quick release plate.
The FLM CB-24FB is a compact ball head designed to retain the functionality of its larger siblings, while remaining small enough to fit comfortably into a travel-friendly set-up. Standing just 8.1 cm tall and weighing only 0.186 kg, the head features an impressive load capacity of 15 kg. It also utilizes a dual-lock design with friction control that allows the user to adjust the ball's position and the 360° panning base separately. A 3/8"-16 bottom thread has been incorporated in order to maintain compatibility with most common tripod legs.
With the 1/4"-20 quick release plate attached, your camera easily slides into the integrated PRB45 base and is locked in place by tightening the silver ring. A cork coating on the QR base protects your camera body from scratches and prevents the camera from sliding while adjusting its position.
Housing made of black anodised aluminium. Ball of grey anodised aluminium.
Specification
| Head Type | Ball Head |
| Base Mount | 13/8"-16 Female |
| Camera Mount | 1/4"-20 Male |
| Load Capacity | 33.1 lb / 15 kg |
| Ball Diameter | 0.9 '' / 24 mm |
| Weight | 8 oz / 227 g |
FLM - Ball Head Comparison
