FLM Atlas 42-L4 Carbon Fibre Tripod Kit - 4 Section with CC-100 100mm Bowl Adapter, HB-100 Half-Ball Leveller & QBL-80 Quick Release Clamp
Key Features
- 4-Section Carbon Fibre Tripod
- 100mm Bowl Adapter and Half Ball Leveler
- Arca-Type Quick Release Clamp
- Load Capacity: 60 kg
- Maximum Height: 184 cm
- Minimum Height: 11 cm
- Folded Length: 63.7 cm
- Weight 2.7 kg
- 10x Carbon Fibre Legs with Twist Locks
- Interchangeable 100mm Flat Plate
- Bubble Level
- 10-Year Manufacturer Warranty
The FLM Atlas 42-L4 Carbon Fibre Tripod Kit includes
- Atlas 42-L4 Carbon Fibre Tripod Legs
- FLM CC-100 Bowl Adapter
- FLM HB-100 Half Ball Leveller
- FLM QLB-80 Quick Release Clamp

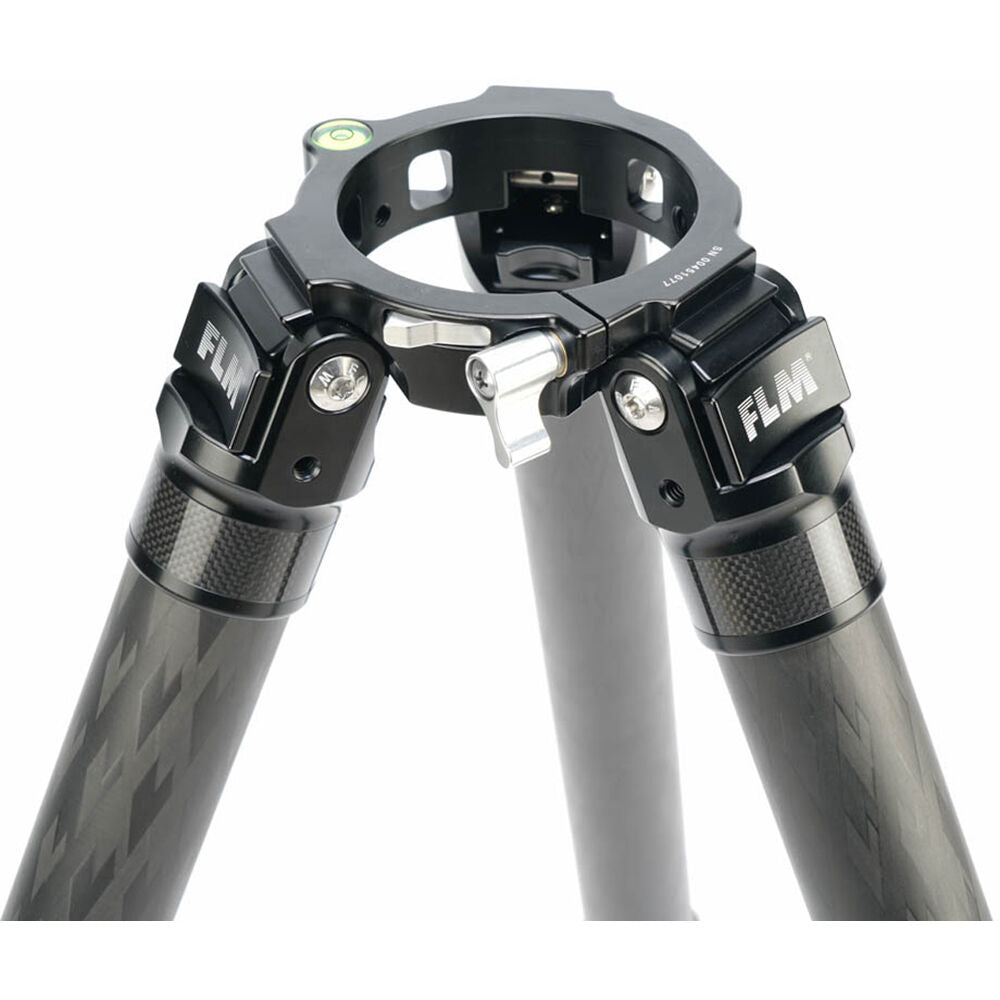

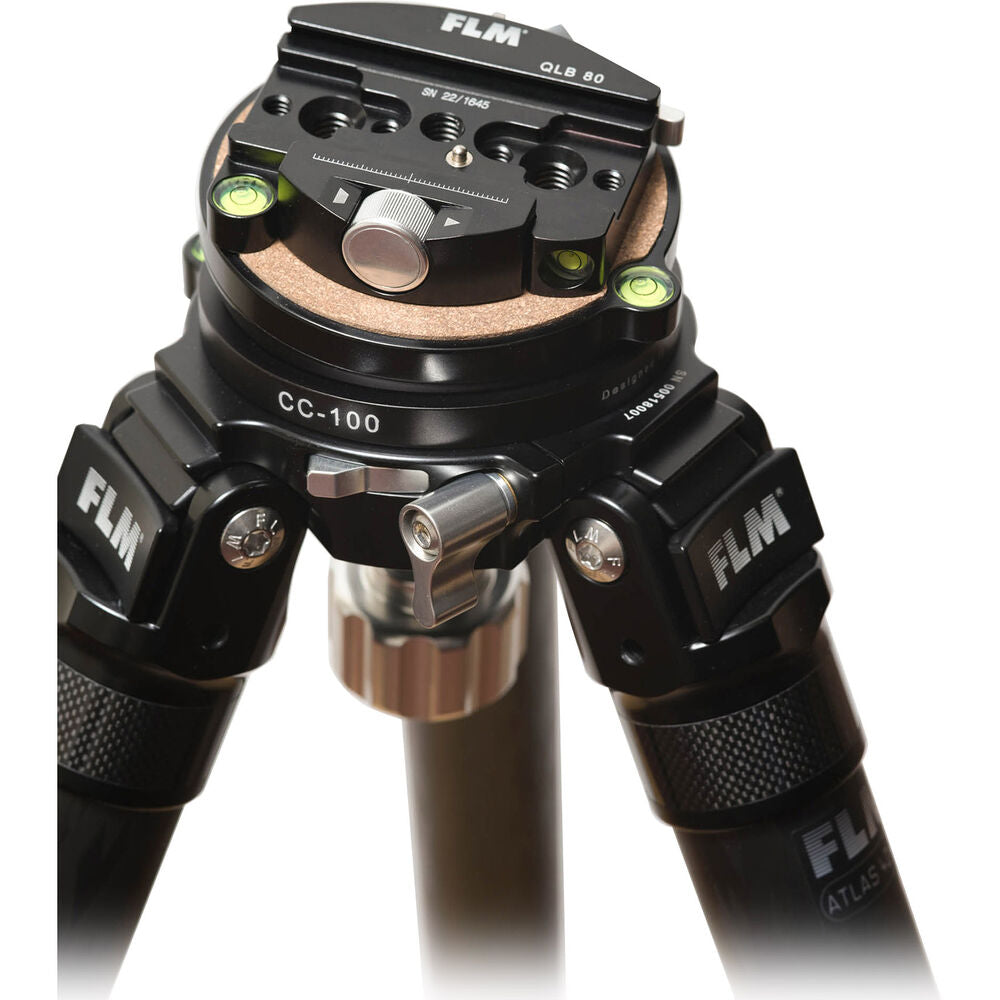

This Atlas 42-L4 Carbon Fibre Tripod 4-Section Kit from FLM combines a robust 4-section carbon fibre tripod leg set with a 100mm bowl adapter and half ball leveller for added speed and versatility when setting up a camera. The 42-L4 includes a 100mm flat head plate that can be easily removed with the flip of a lever, then replaced with the bowl adapter in a matter of seconds. The included QLB-80 quick release clamp is an Arca-type receiver compatible with different-sized plates, camera brackets, and other related accessories.
FLM 42-L4 Atlas-Series Carbon Fibre Tripod

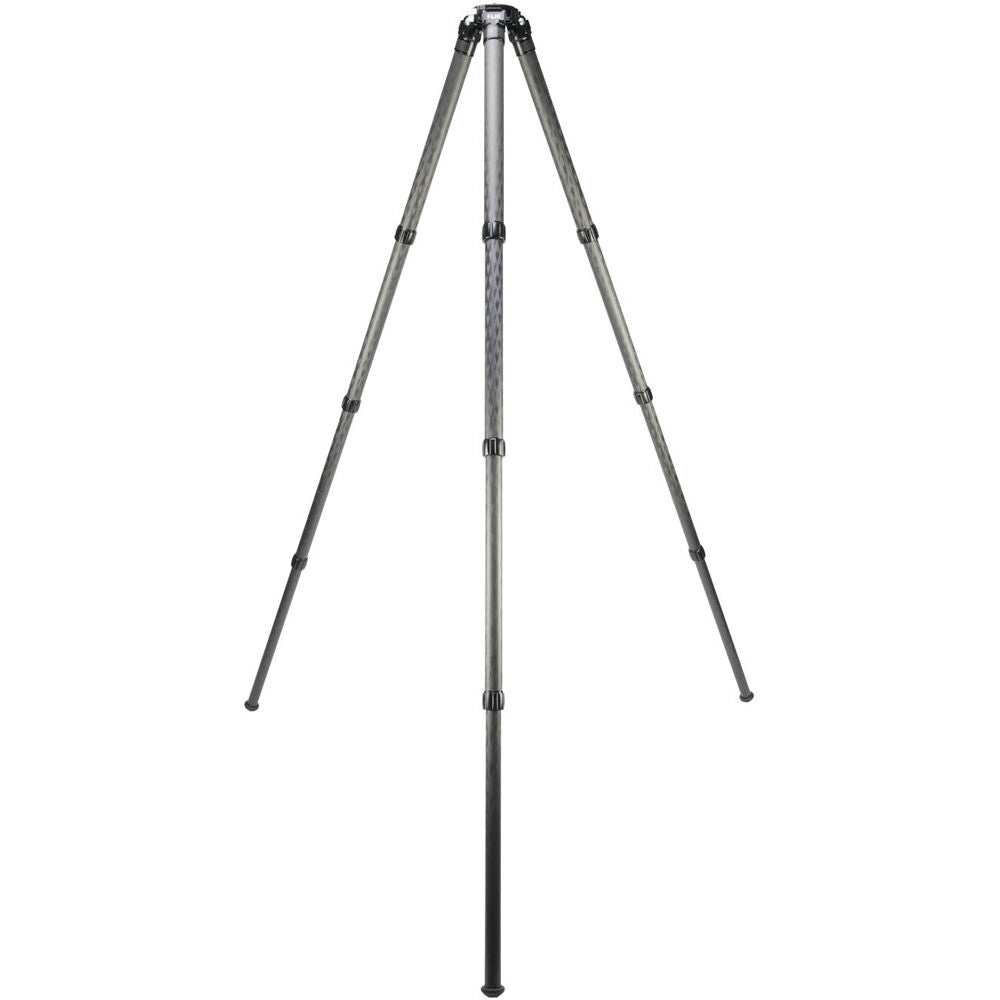

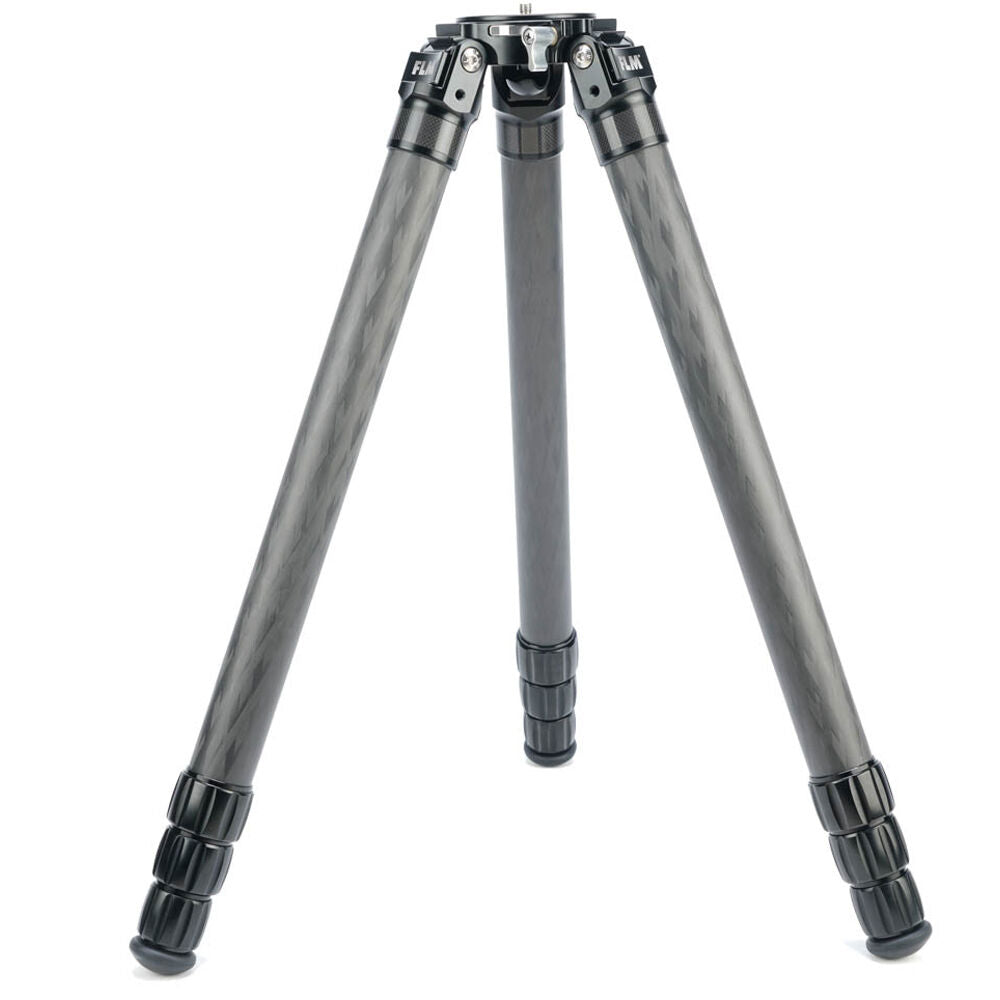

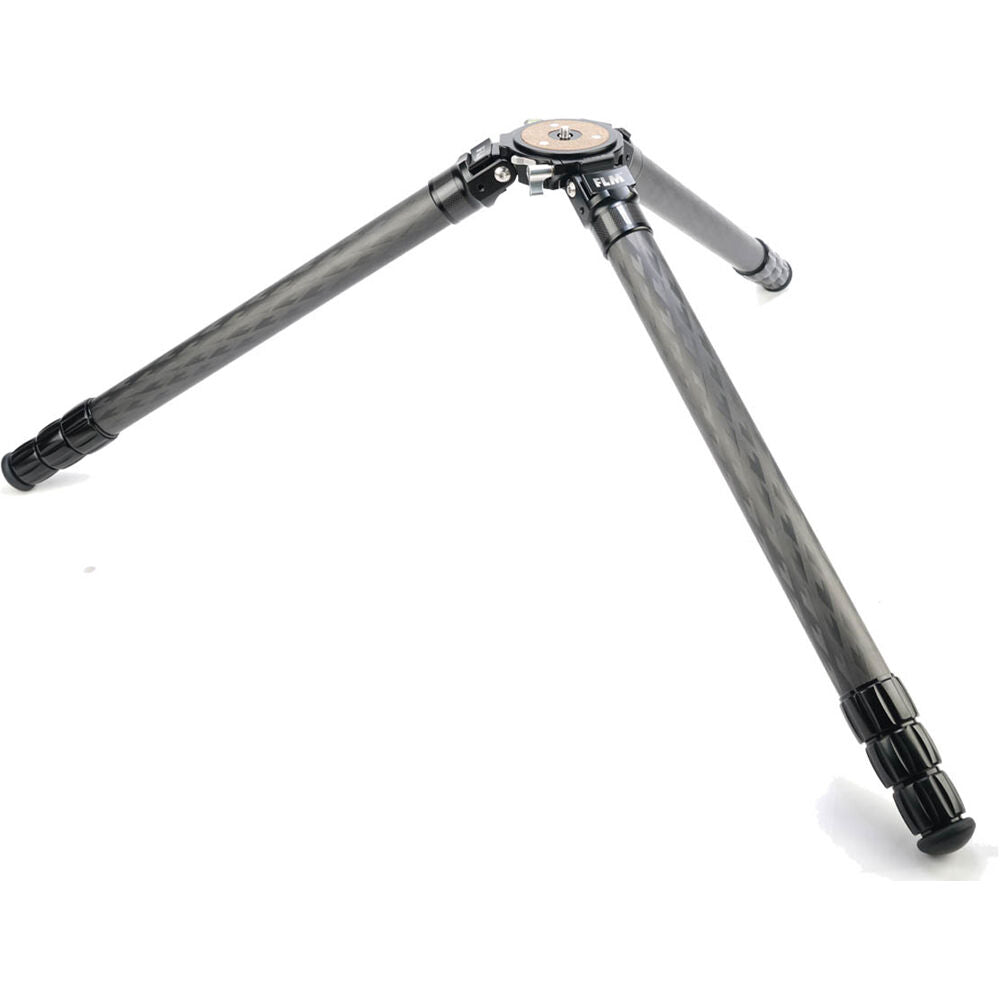

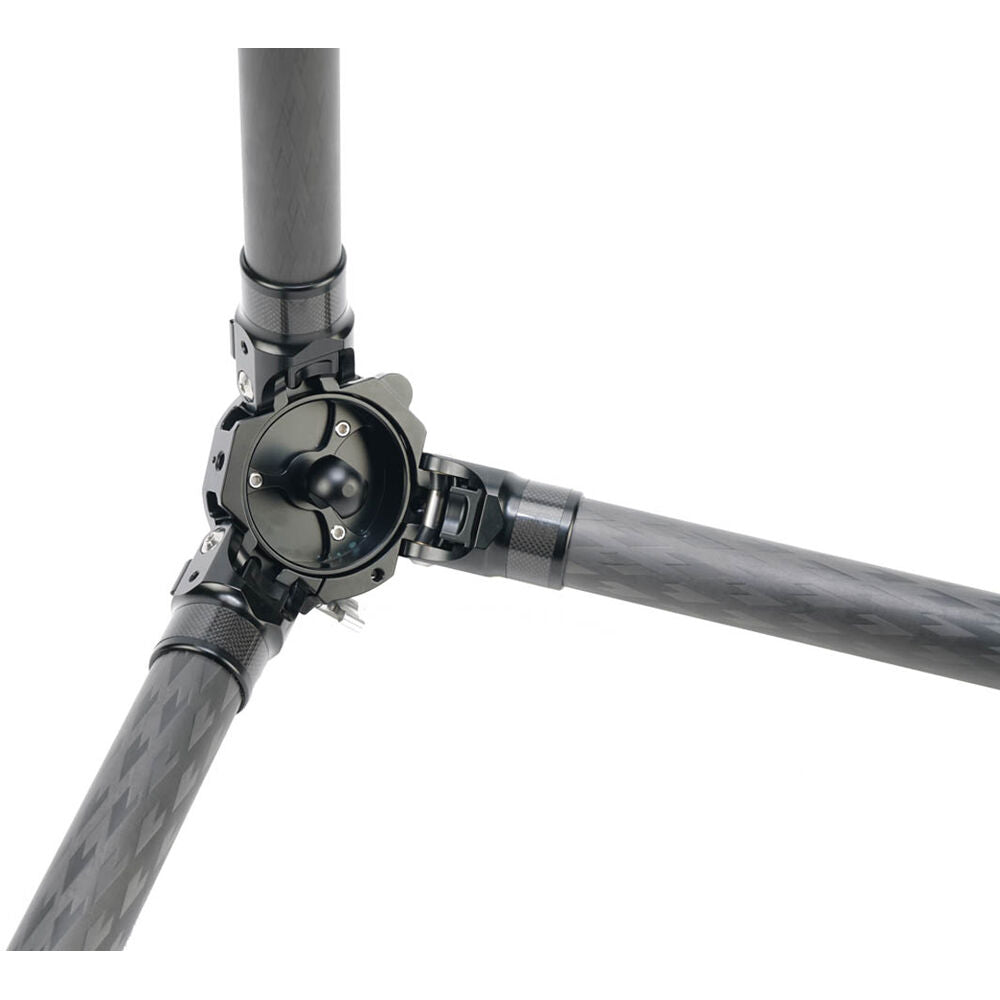

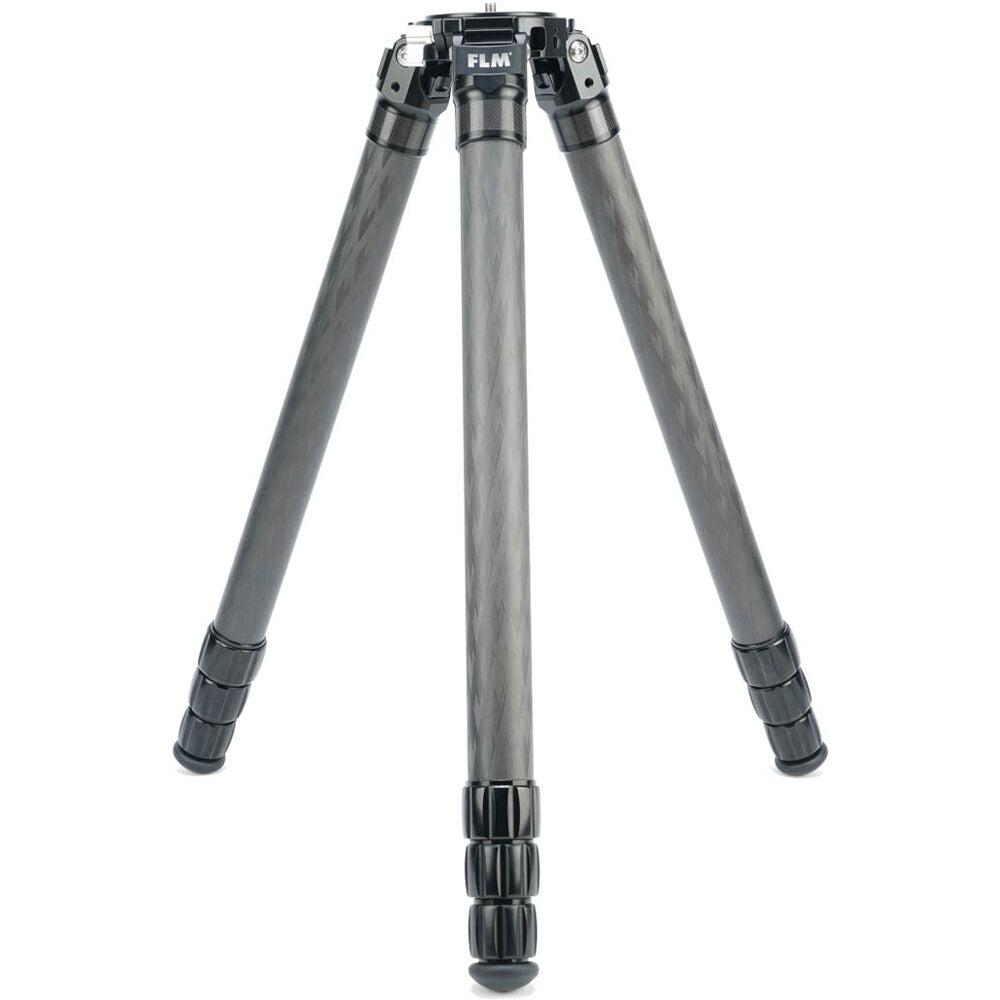

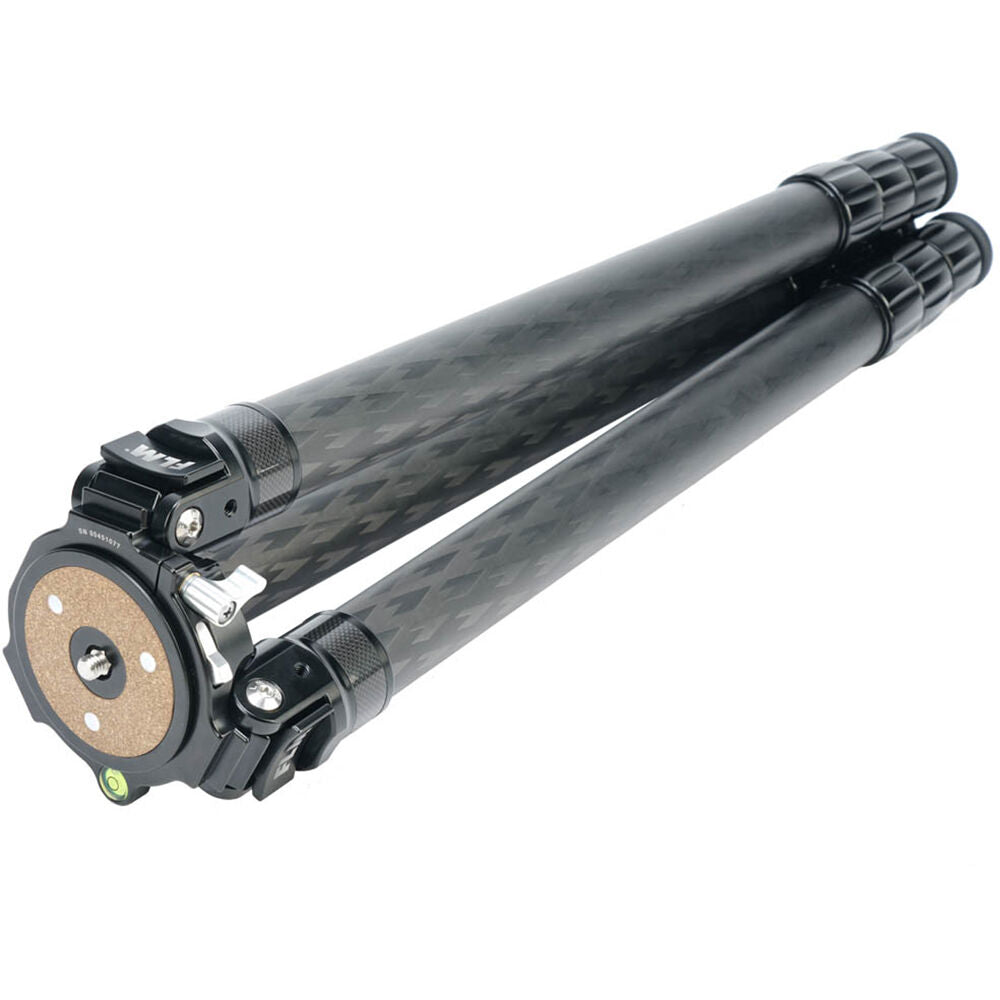

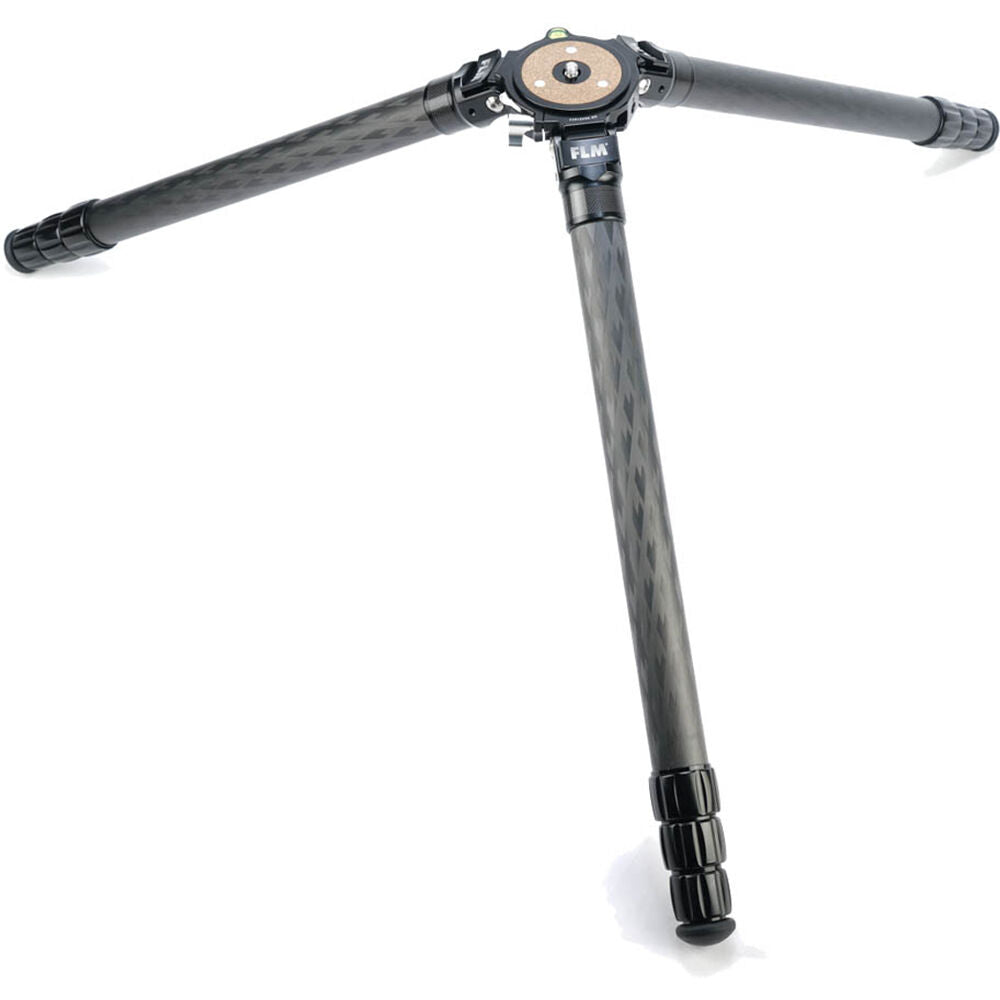

The CP42-L4 Atlas-Series Carbon Fibre Tripod from FLM is a tough and strong carbon fibre tripod with a robust 60 kg load capacity. The 4-section carbon fibre legs feature twist locks joints that disengage with a simple twist. The CP42-L4 has a maximum height of 184 cm, and the legs offer independent leg spread with three locking leg angles for easy levelling on uneven surfaces. The tripod can be lowered to 6.3" for floor-level perspectives and macro imaging. The included 100mm flat plate features a 3/8"-16 threaded mount and a ballast hook and can be quickly exchanged for 100mm or 75mm half-bowl adapters.

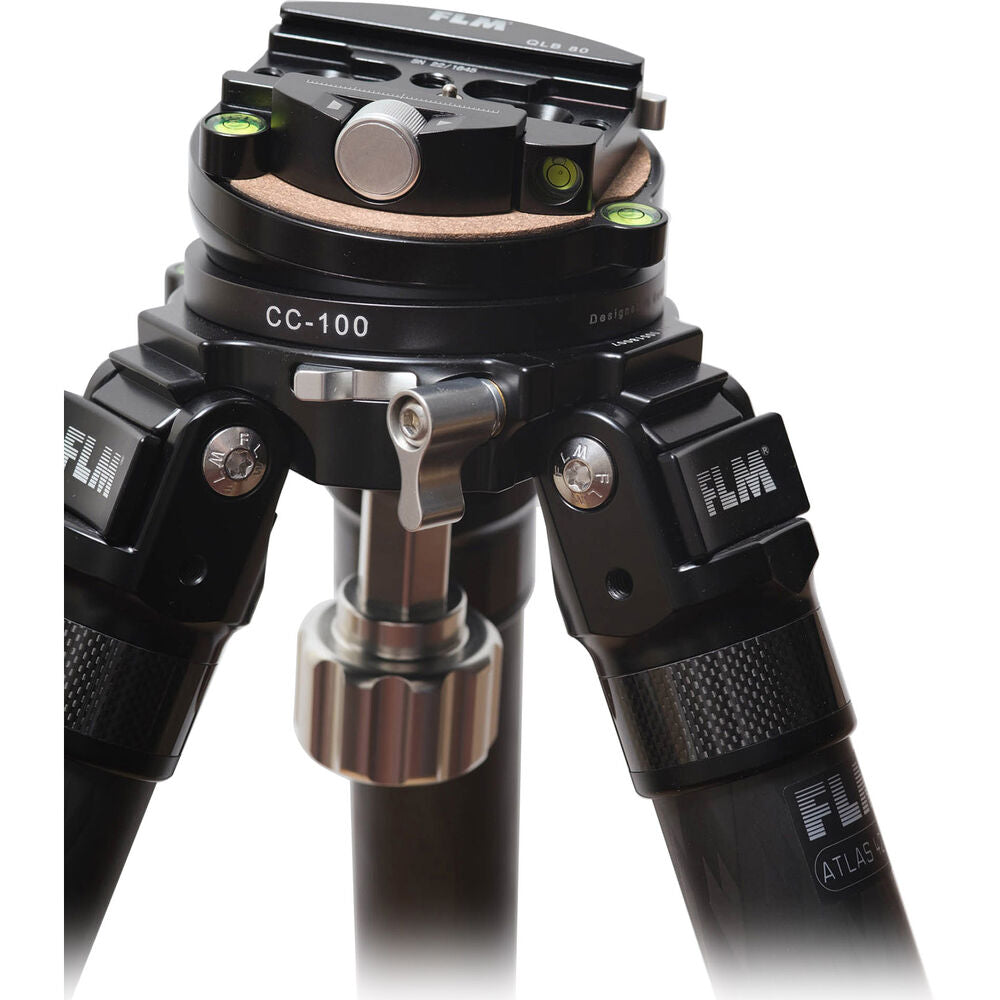

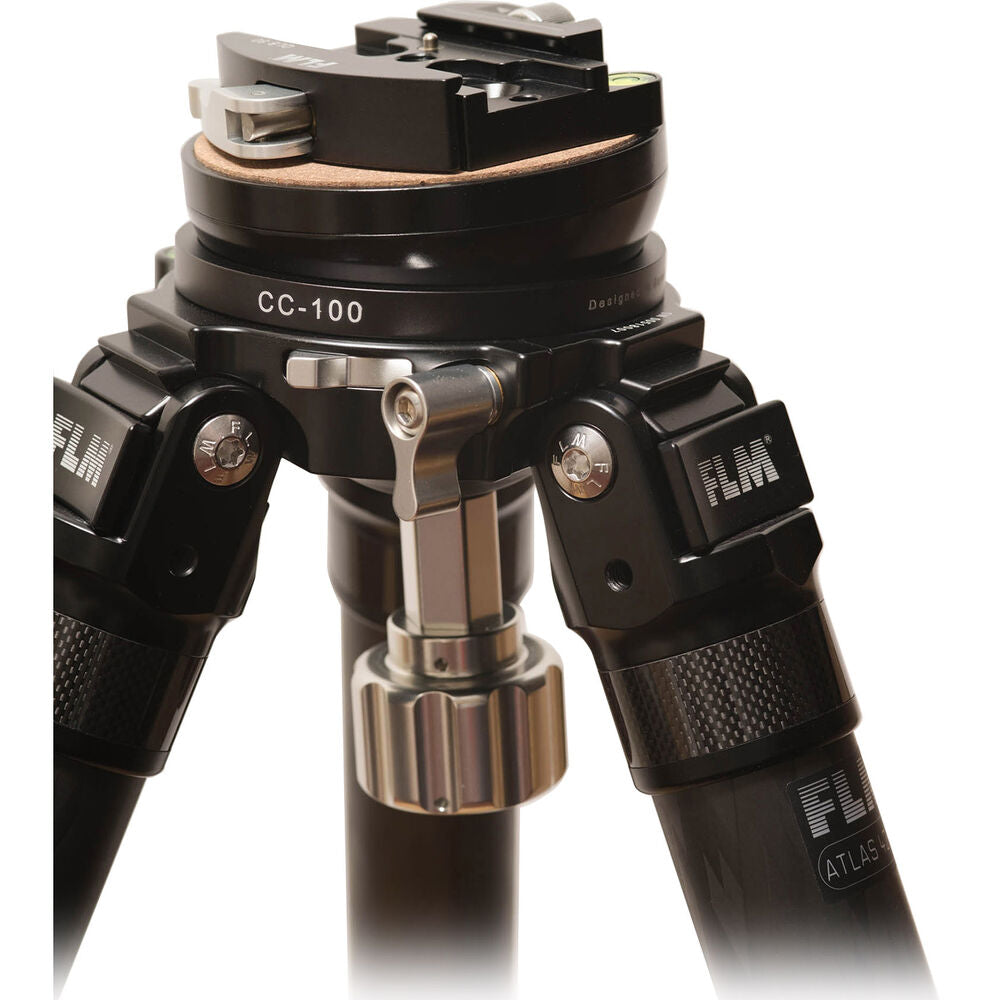

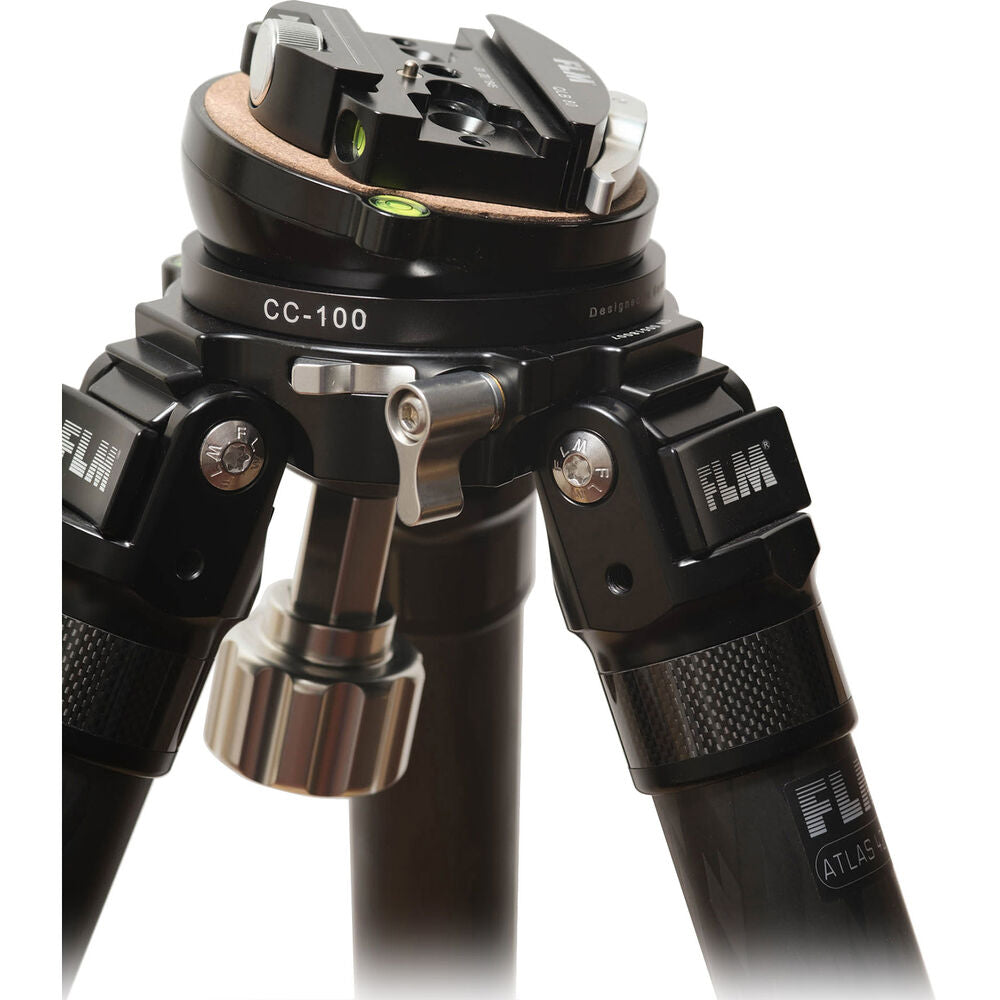

FLM CC-100 Bowl Adapter for Atlas Series Tripods (100mm)

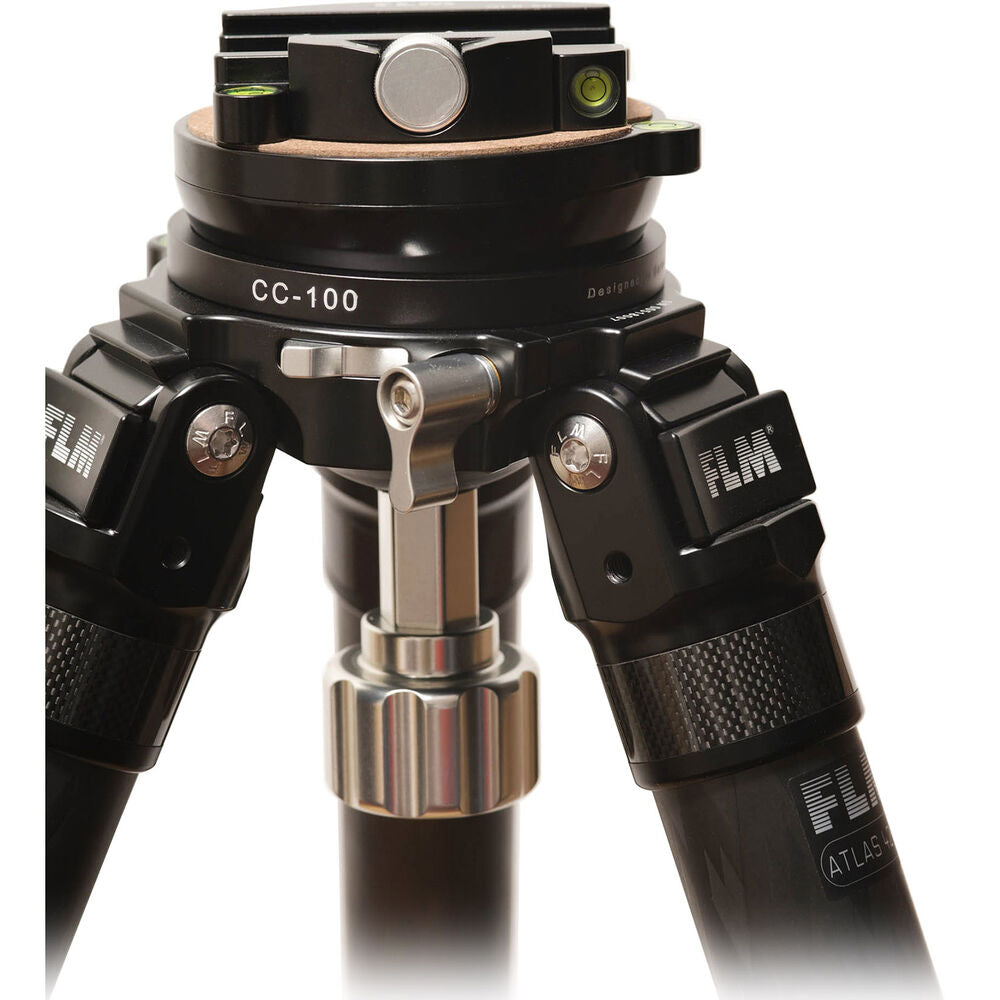

The FLM CC-100 adapter allows the photographer to use 100mm systematic accessories on the Atlas tripod. Can also be used on non-FLM systematic tripods using 100mm apex. The CC-100 Bowl Adapter for Atlas Series Tripods from FLM allows the HB-100 half ball leveling head to be used on select Atlas Series systematic tripods.
FLM HB-100 Half Ball Leveller
The FLM HB-100 Half Ball Leveler enables you to adapt select flat base tripod heads for use on 100mm bowl tripods. Compatible with CP38 Series II and standard 100mm tripods, this adapter provides the leveling advantages of a ball head system using your existing flat base head. The half ball provides up to 15° of adjustment in any direction for quick head leveling without the need for more time-consuming leg adjustments. The telescoping handle extends from 3.5 to 4.8", enabling you to adjust it for a better grip.
Leveler features include a bubble level, a 3/8"-16 head screw, and a cork and rubber pad that minimizes vibration while standing up to the effects of humidity and weather. The head-mounting set screws secure your head firmly on the adapter, preventing it from spinning or coming loose.
Compatibility
- FLM CP38 Series II tripods
- Most 100mm bowl tripods
Easy Ball Head Leveling
- Provides ball head leveling using your existing flat base head
- Adjusts up to 15° in any direction
Telescoping Handle
- The telescoping handle extends from 3.5 to 4.8", enabling you to get a better grip depending on your choice of tripod or hi-hat
FLM QLB-80 Quick Release Clamp
The QLB-80 Quick Release Clamp by FLM is a heavy-duty open-channel Arca-style lever clamp for different-sized quick release plates. It has a safety pin so the plates will not slide out of the clamp when loose. Built-in bubble levels help align your camera vertically and horizontally.
- The easiest and quickest solution for locking camera plates securely in place with a lever-actuated system.
- One jaw is adjustable to accommodate various Arca plate sizes; the lever can be opened and closed quickly.
- A locking pin ensures that the QR plate cannot slip out of the base when opened
- This base is equipped with two bubble levels for horizontal and vertical alignment of the camera.
- It is Arca-Swiss compatible and adjustable to various Arca plates
Specification
FLM ATLAS 42-L4 Tripod Legs
| Head Mount Type |
3/8"-16 Male
|
| Primary Material |
Carbon Fiber
|
| Leg Lock |
Twist Lock
|
| Leg Sections |
4
|
| Independent Leg Spread |
Yes
|
| Leg Positions |
3 Positions
|
| Foot Features |
Spiked, Removable
|
| Load Capacity |
132.3 lb / 60 kg
|

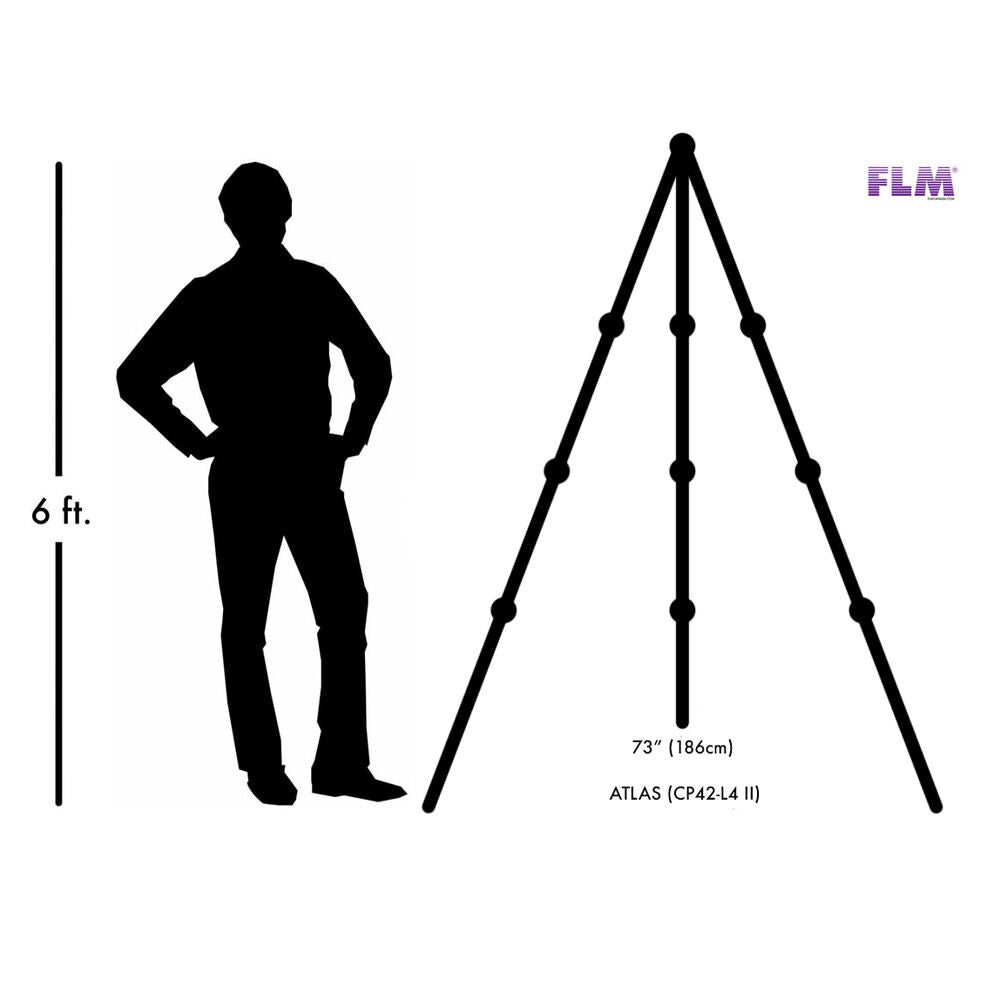

| Maximum Working Height |
72.3" / 184 cm
|
| Minimum Working Height |
4.3" / 11 cm
|
| Closed Length |
25.1" / 63.7 cm
|
| Bubble Level |
Yes
|
| Weight |
5.95 lb / 2.7 kg
|
FLM CC-100 Bowl Adapter for Atlas Series Tripods (100mm)
| Material | Aluminum Alloy |
| Dimensions | 3.9" x 1.3" (99mm x 35mm) |
| Weight | 5.6 oz (158g) |
FLM HB-100 Half Ball Leveller
| Material of Construction | Aluminum Alloy |
| Adjustments | 15° in Any Direction |
| Max. Load Capacity | 25 kg |
| Mounting Screw | 1 x 3/8"-16 |
| 3 x Set Screws | |
| Dimensions | ø 3.9" (99mm), Min 3.5", Max 4.8" |
| Weight | 15.3 oz / 435g |
FLM QLB-80 Quick Release Clamp
| Base Mount Thread | 3/8"-16 Female |
| Plate Locking Method | Lever |
| Quick Release Plate Type | Arca-Type |
| Bubble Level | Yes |
| Load Capacity | 40 kg |
| Material | Aluminum |
| Length | 84 mm |
| Width | 81 mm |
| Height | 20 mm |
| Weight | 166 g |
