Presenting the

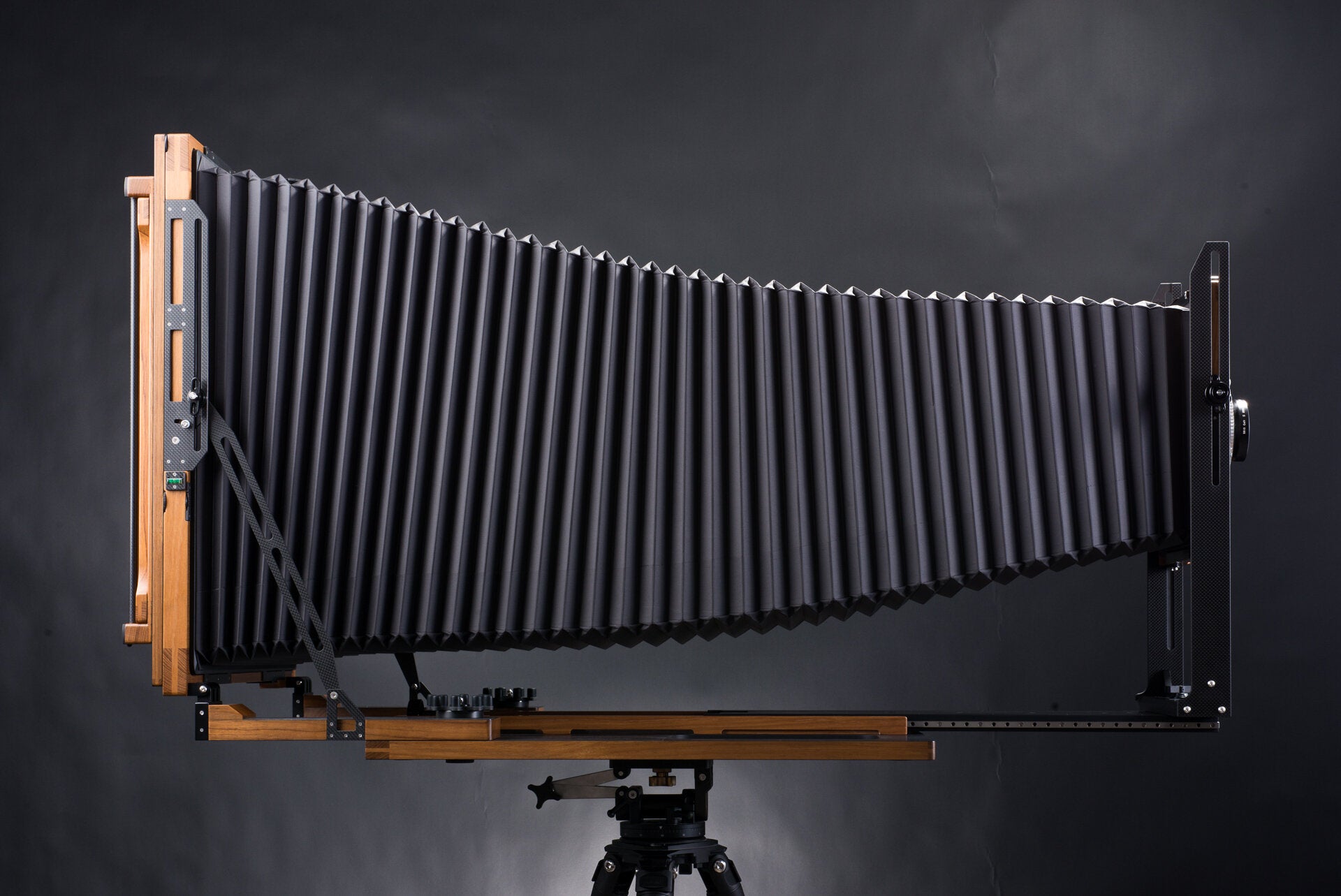

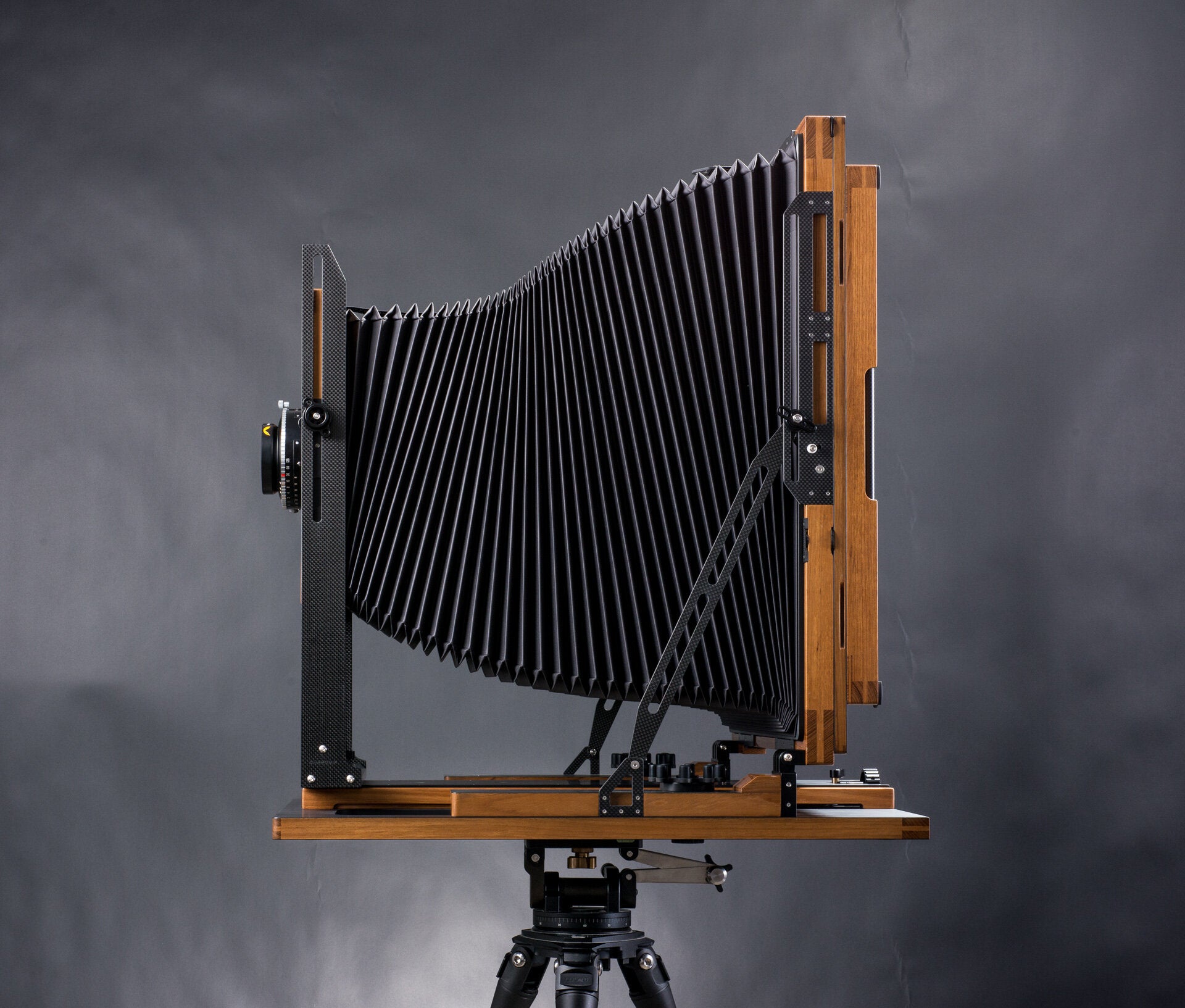

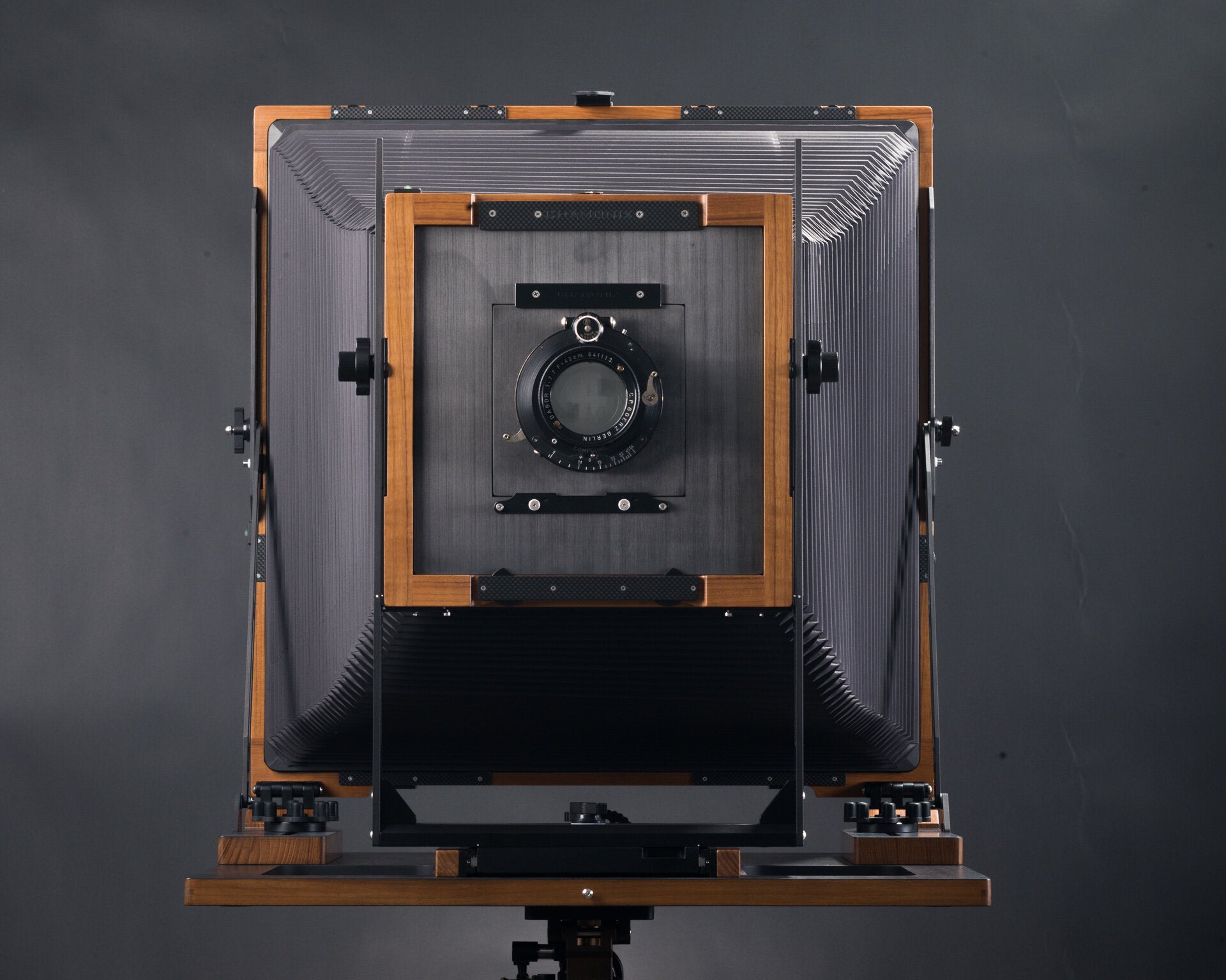

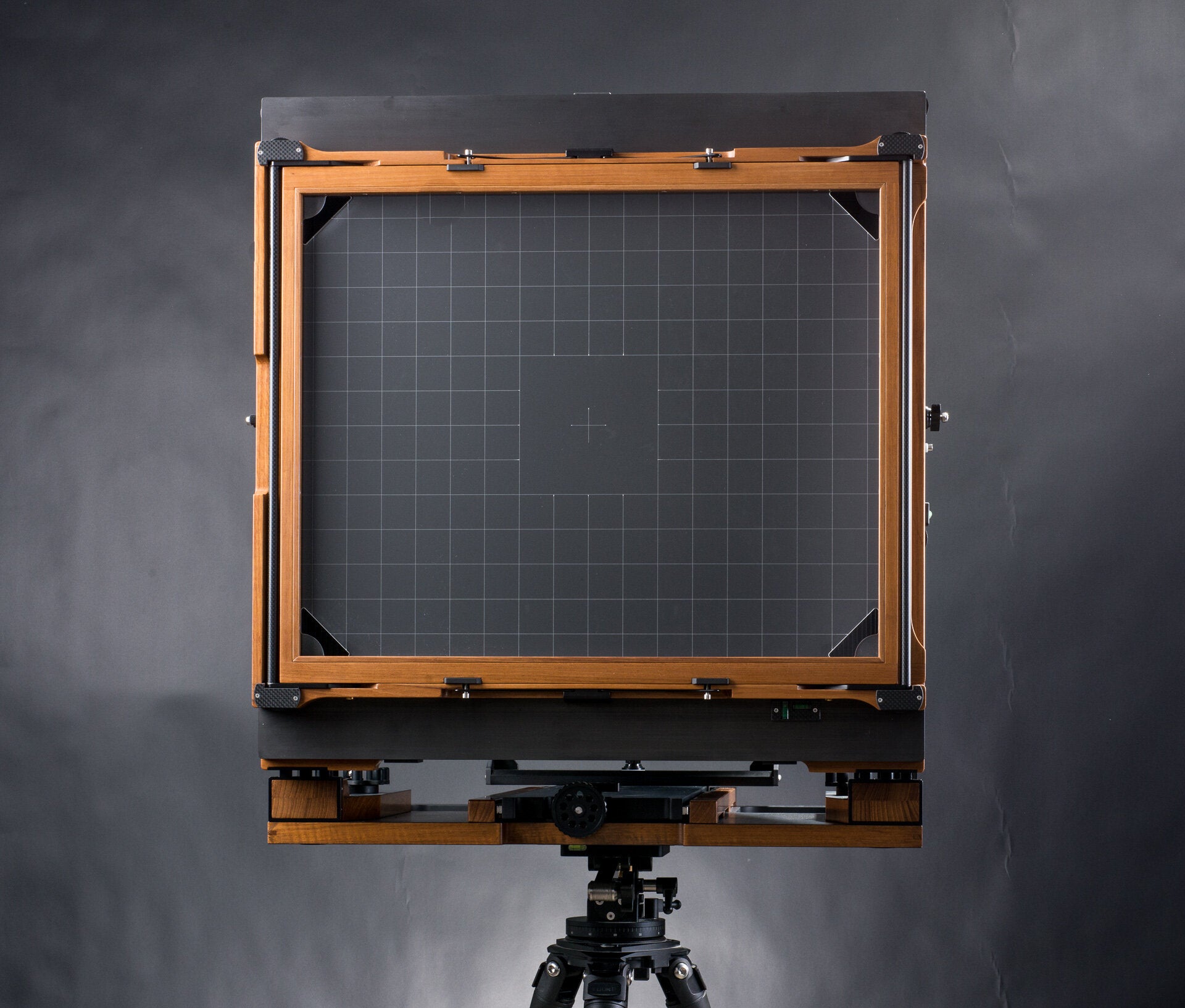

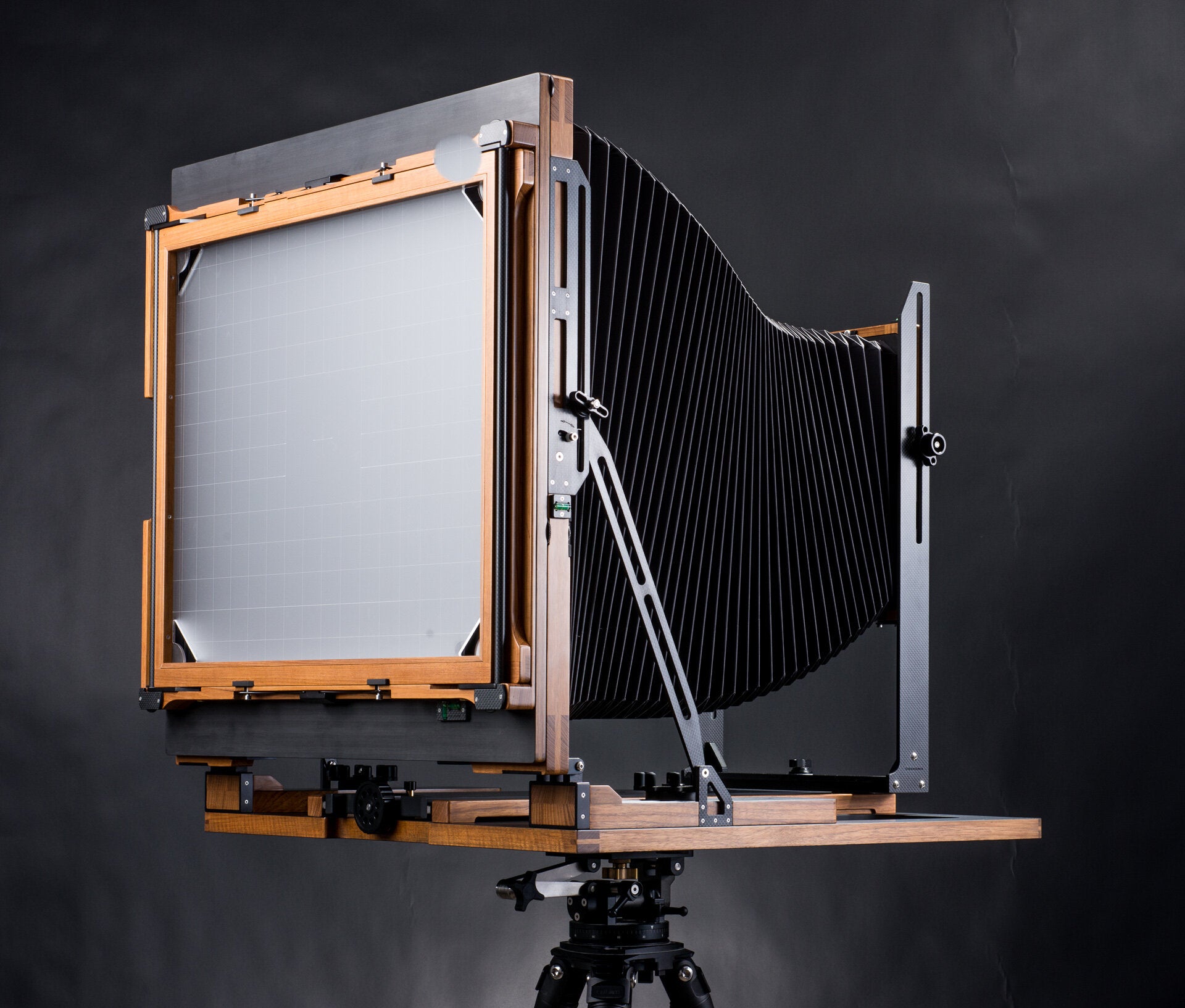

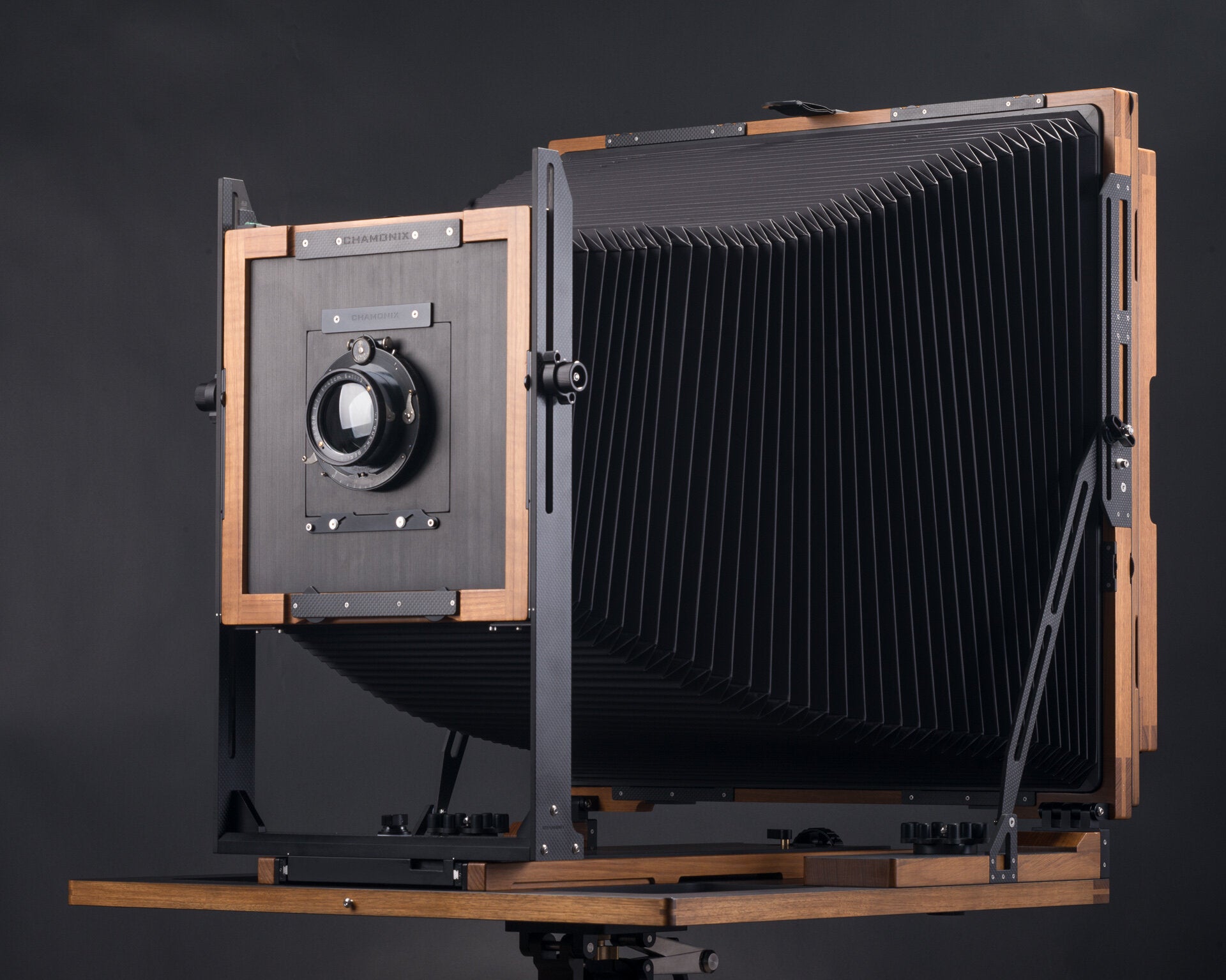

Chamonix 20x24 view camera, perhaps the ultimate large format! The back of the camera is reversible to permit compositions in the landscape (horizontal) aspect or in the portrait (vertical) aspect.
Our new batch of 20x24CF cameras has just been released. A new look with heavy use of carbon fiber makes this new camera lighter (33 lbs.) and more rigid.
SPECIFICATIONS:
- 2024CF Convertible
- Weight:14.8KG
- Folded size：732mm X 692mm X 164mm
- Max bellows draw:1,300mm (1,780mm with extension set
- Min bellows draw: 280mm
- Rear standard swing: left 11°, right 11° , Rear tilt: 26°
- Front rise: 170mm, front fall: 146mm Front shift: 52mm on each side
The camera takes 10 inch lens board.
