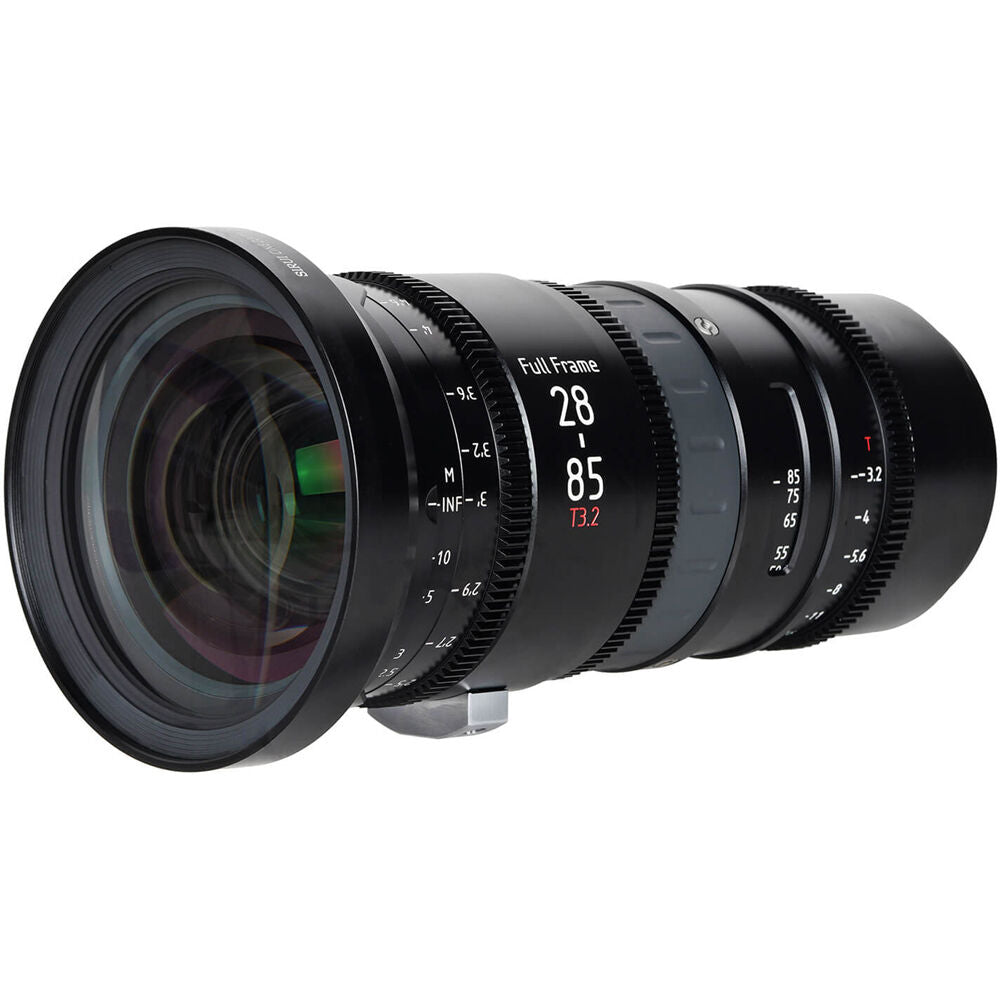

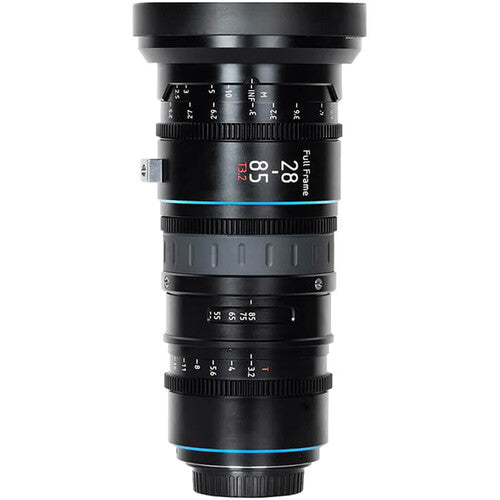

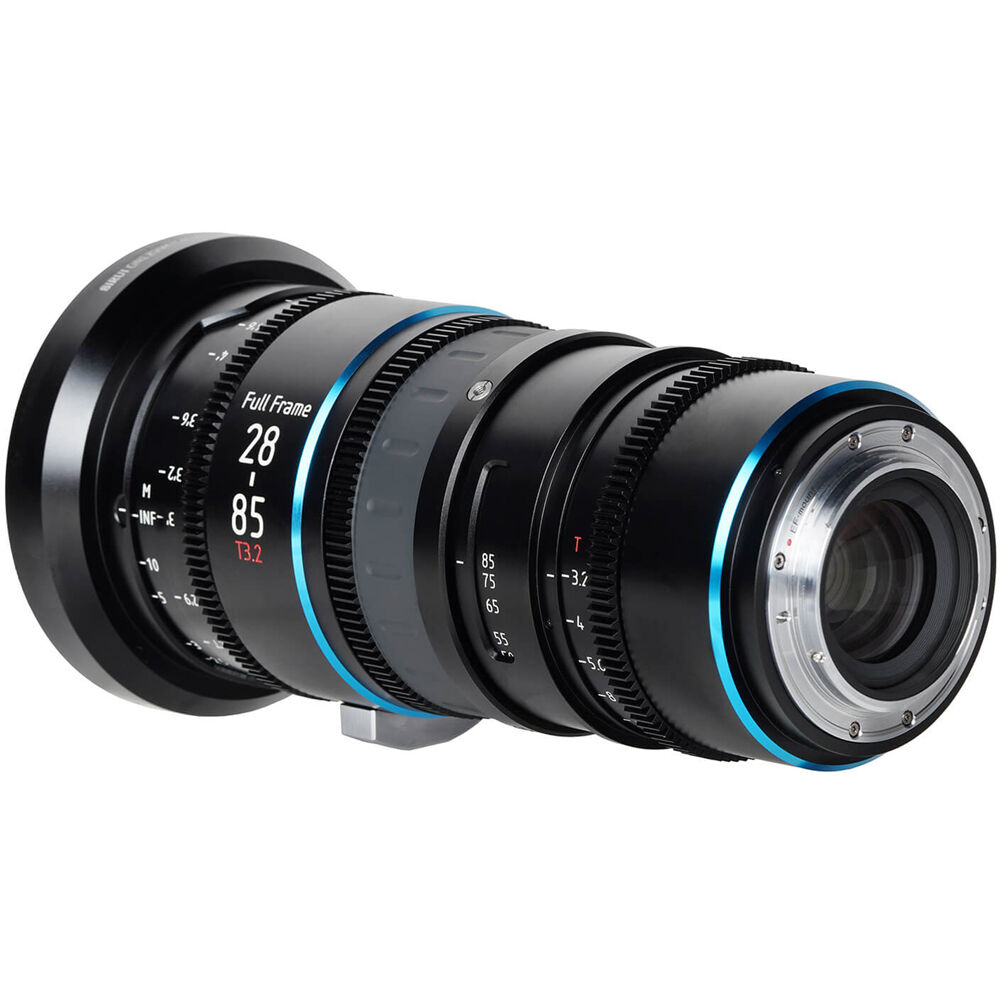

SIRUI Jupiter 28-85mm Full Frame Macro Cine Zoom Lens - Canon EF
Key Features
Covers Full Frame Format
T3.2 to T22 Aperture Range
114mm Front Diameter
11 Iris Blades

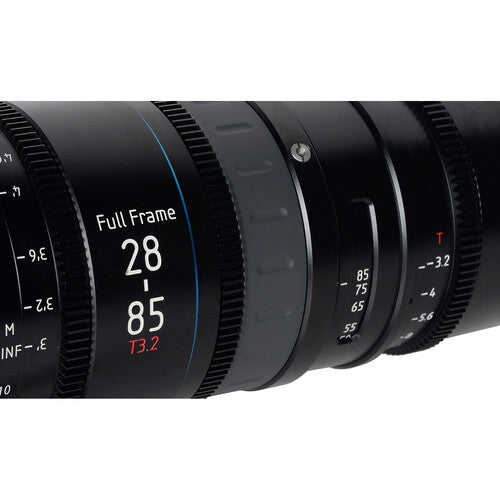

Lens Markings in Meters and Feet
Cine-Style 0.8 MOD Focus and Iris Gears
2.3' Minimum Focus Distance

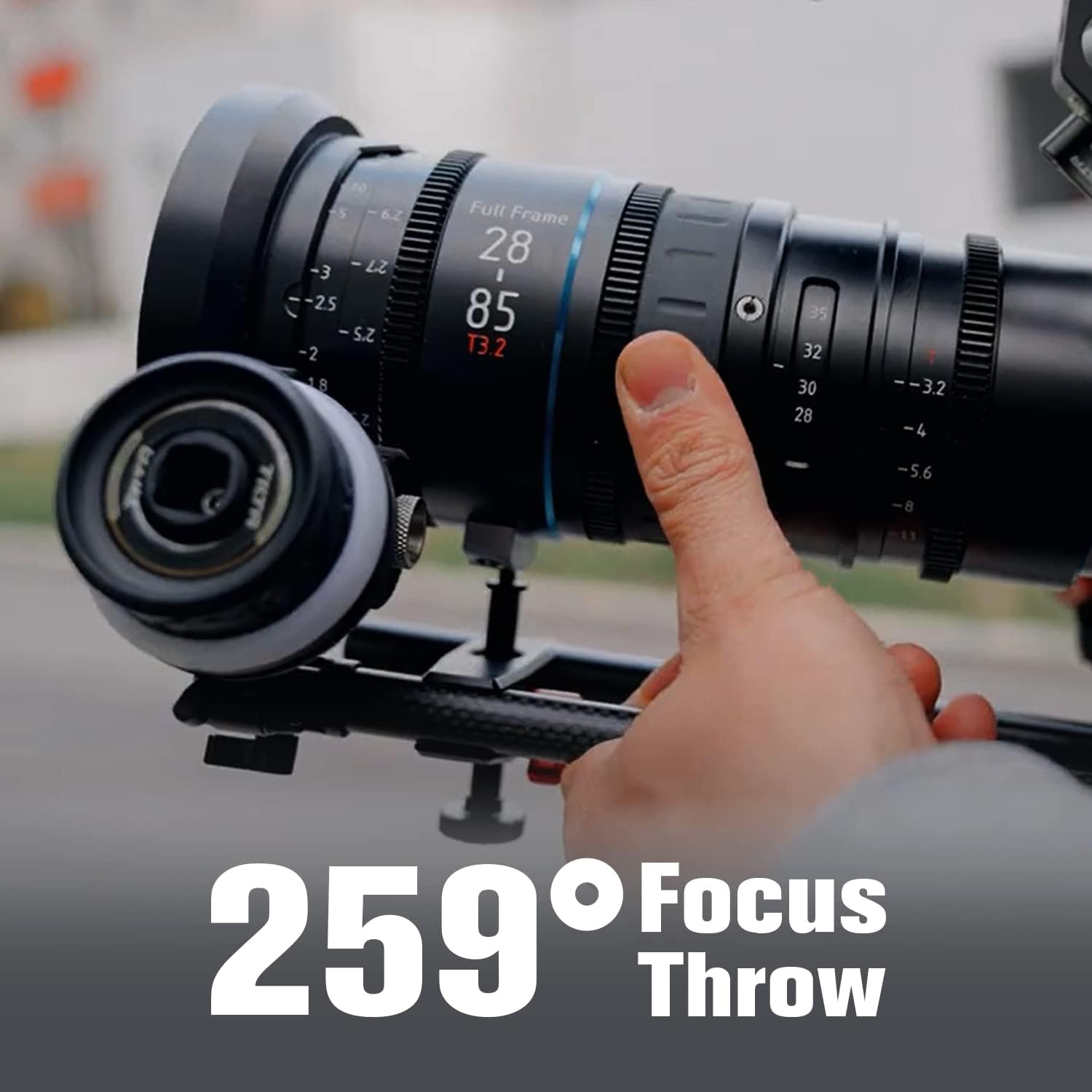

259° Focus Rotation

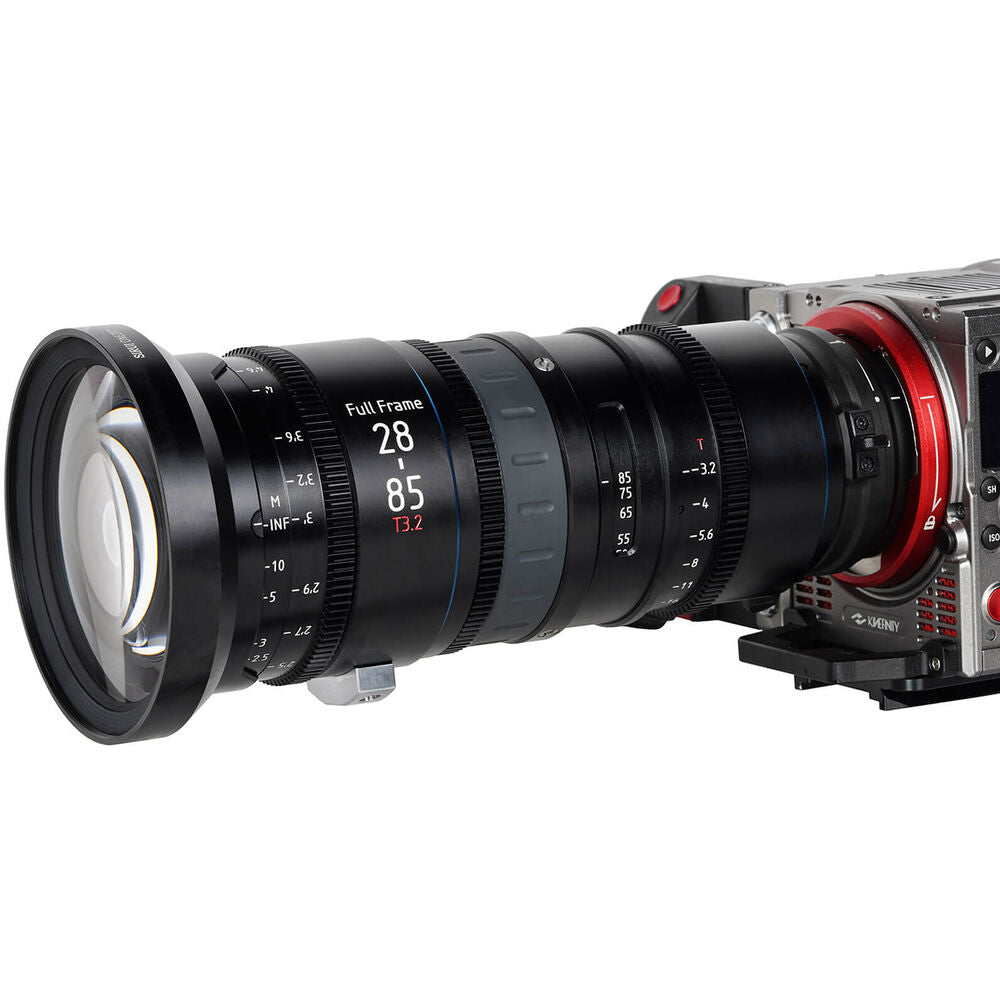

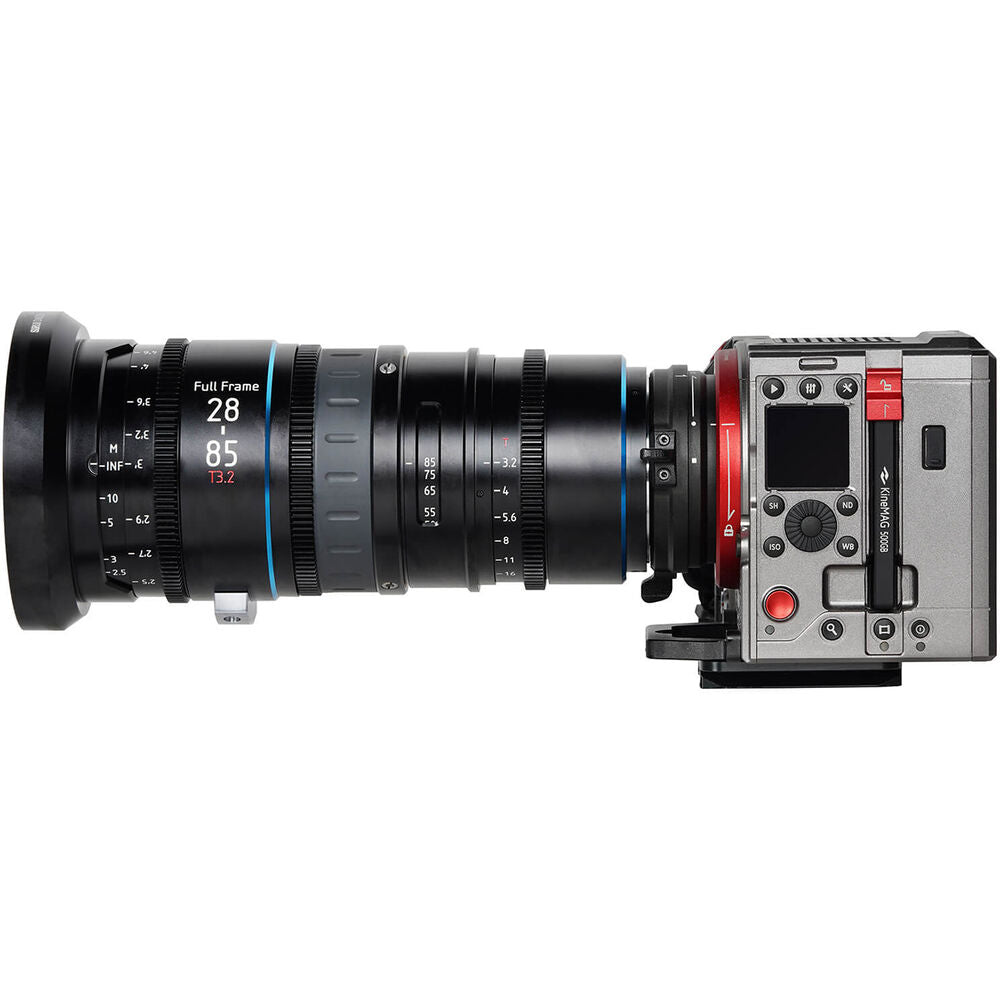

This Jupiter 28-85mm T3.2 Full Frame Macro Cine Zoom Lens from Sirui captures sharp macro shots with full frame camera sensors using their Canon EF mount and has a focal length range of 28 to 85mm. It features an aperture range of T3.2 to T22 for a deep or shallow depth of field, depending on your cinematic vision.
A lens construction of 22 elements in 18 groups creates a smooth, circular bokeh with minimal focus breathing. The focus ring can rotate up to 259°, and both the focus and iris rings have 0.8 MOD cinema-standard gears for intuitive manual controls. Focus distance and iris marks are displayed in both meters and feet. The zoom lens has a minimum focus distance of 2.3'. It has a 1/4"-20 thread for compatibility with lens supports. The parfocal design ensures the focus remains the same throughout the zoom range.
Features at a Glance
Maximum T3.2 aperture for low-light advantage, deeper depth of field, and increased area of focus

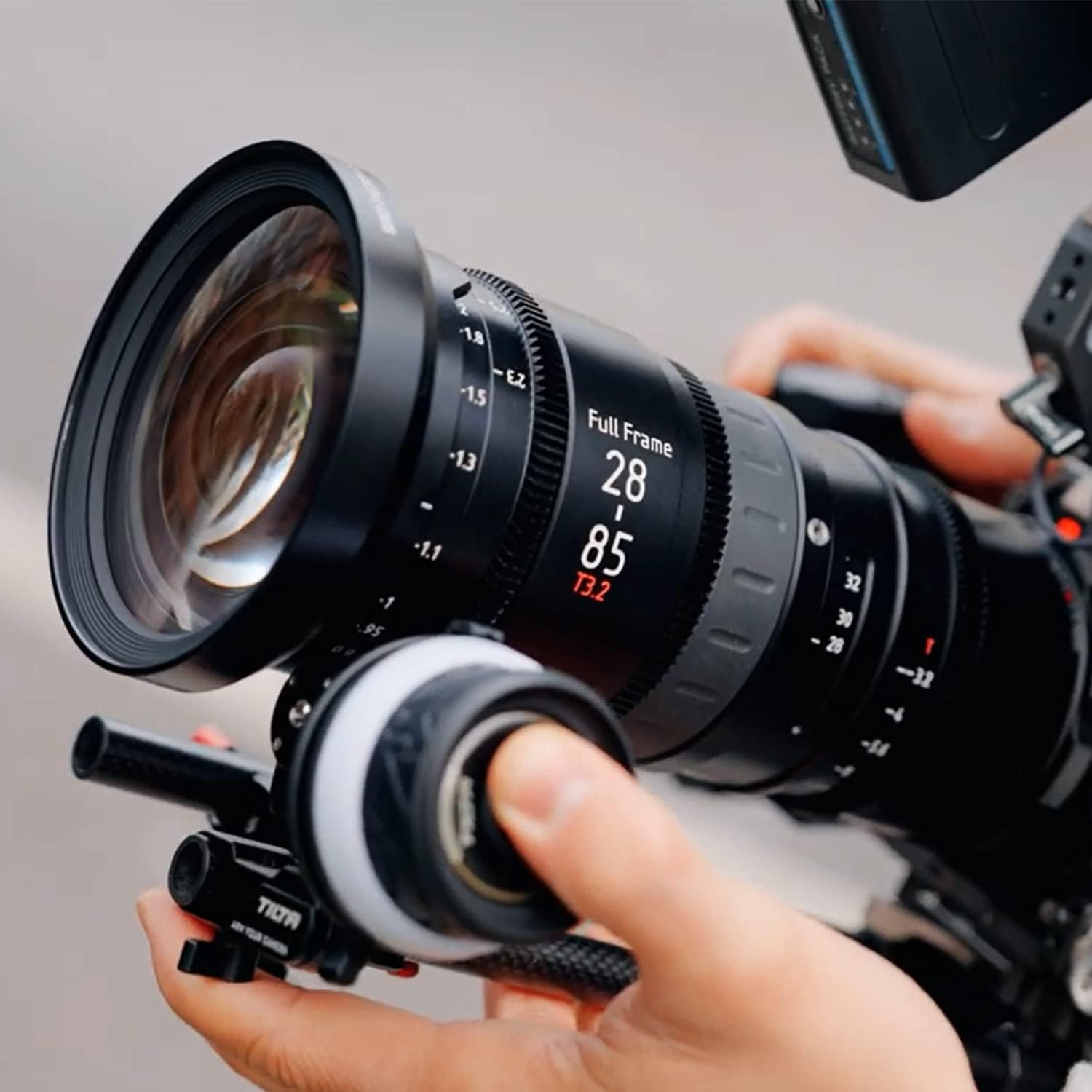

Cinema industry-standard 0.8 MOD focus and iris gears compatible with follow focus and iris controls
Lens construction of 22 elements in 18 groups for smooth, circular bokeh
Manually focus on objects from a minimum of 2.3' away
Capable of recording 8K resolution video
1/4"-20 thread for lens support compatibility
Set of 10 shims included for adjusting flange distance

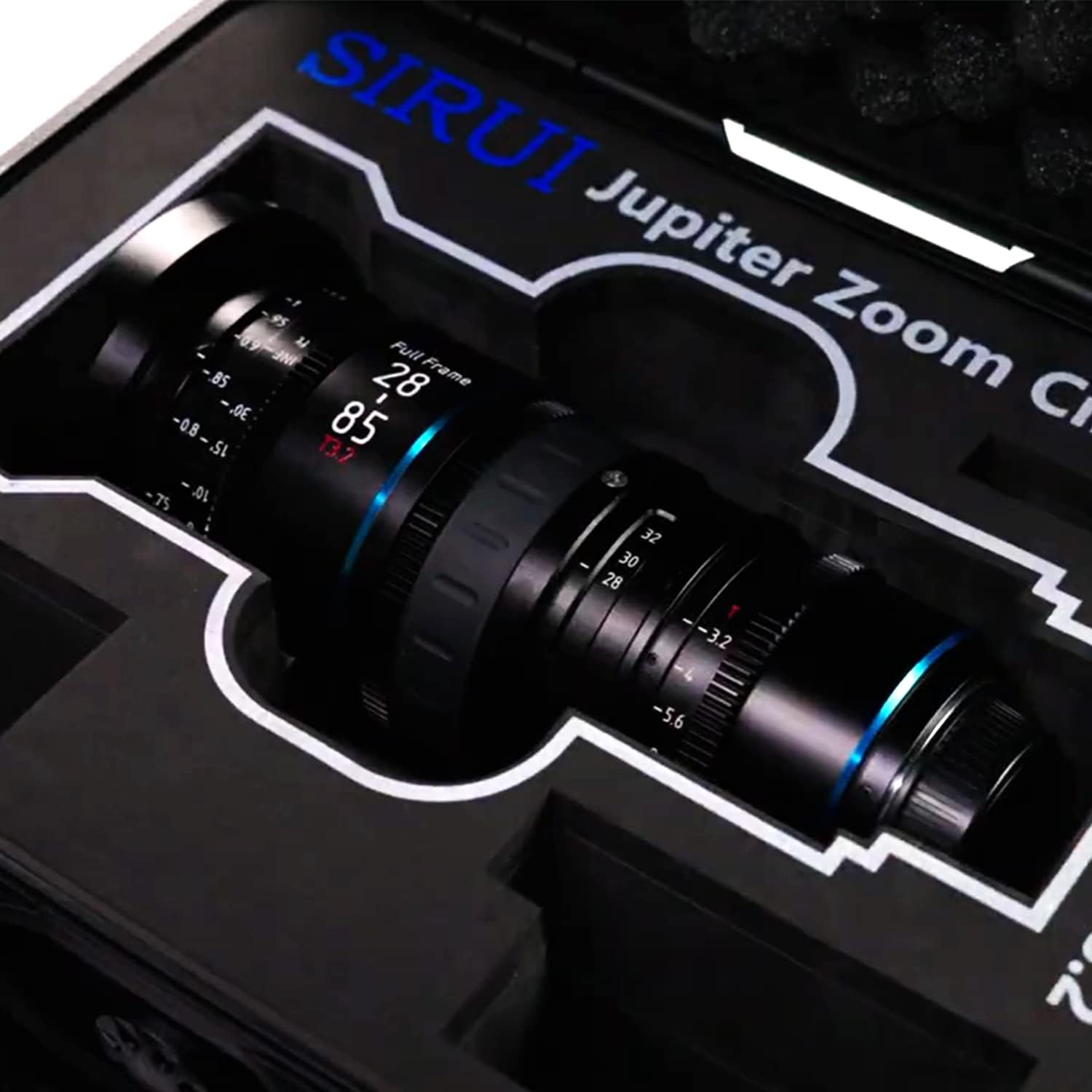

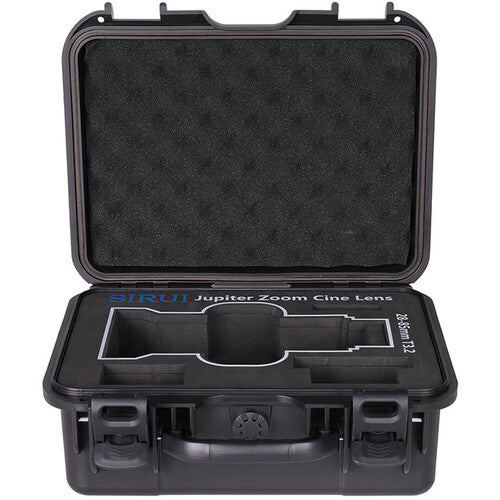

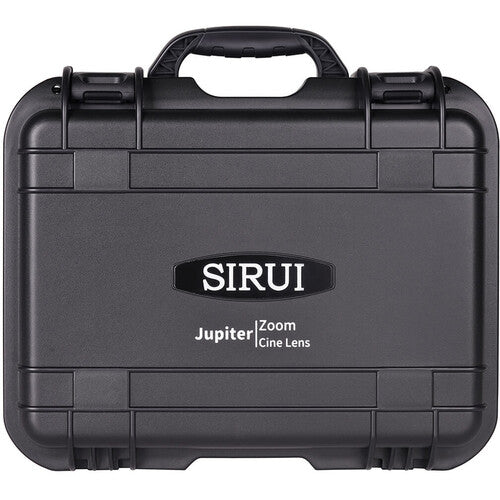

Included carrying case with an IP67 rating to protect the lens
Specifications
Focal Length
28 to 85mm
Maximum Aperture
T3.2
Minimum Aperture
T22
Lens Mount
Canon EF
Lens Format Coverage
Full-Frame
Interchangeable Mount
No
Image Circle
44.0 mm
Focus Scales
Imperial, Metric
Optical Design
22 Elements in 18 Groups

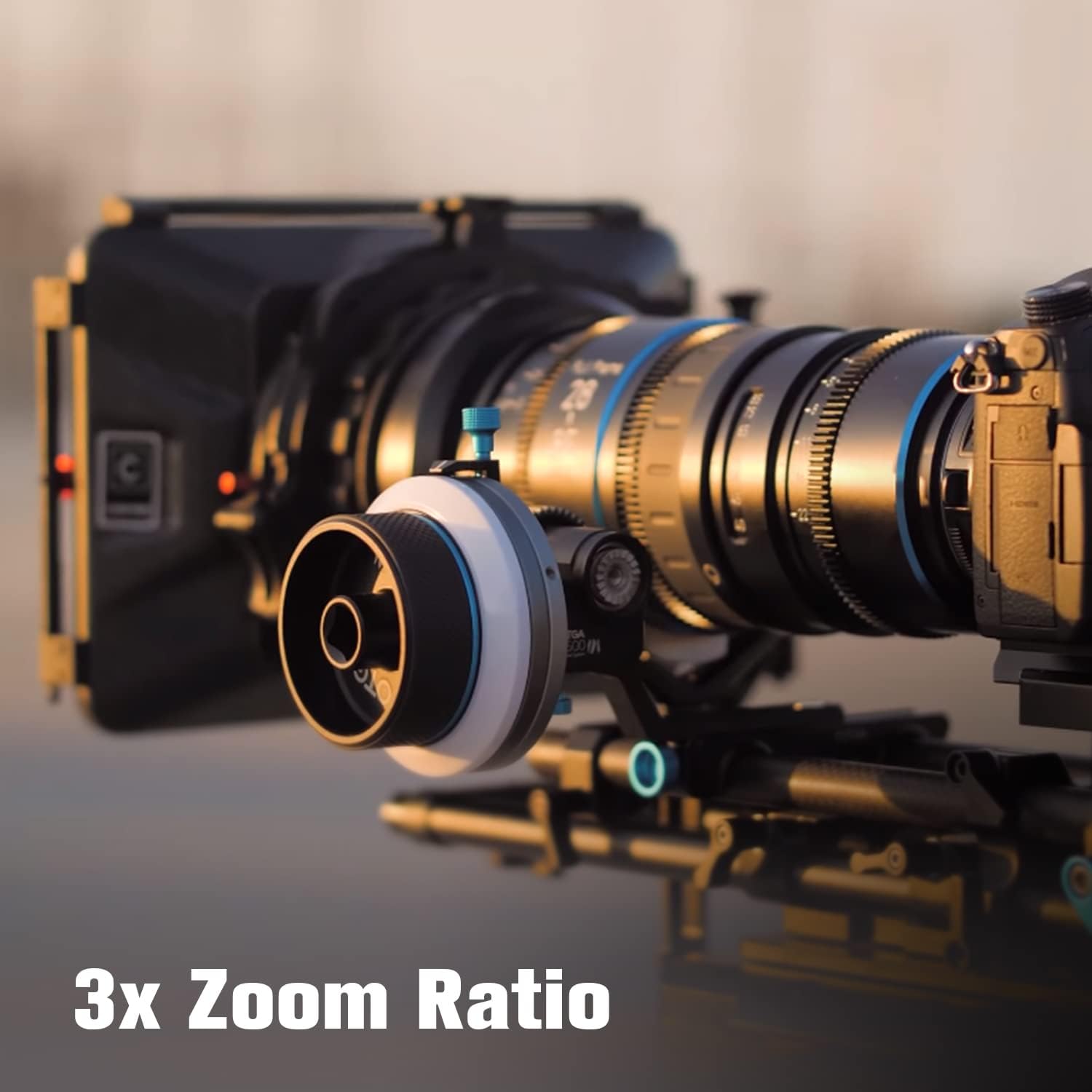

Zoom Ratio
3x
Minimum Focus Distance
2.3' / 70.1 cm
Aperture/Iris Blades
11
Image Stabilization
No
Gear Standard
MOD
Gear Rotation
Focus: 259°
Iris: 84°
Electronic Communication
No
Diameter
Front: 4.5" / 114 mm
Length
8.78" / 223 mm
Weight
5.59 lb / 2.53 kg
In the Box
Sirui Jupiter 28-85mm T3.2 Full Frame Macro Cine Zoom Lens (Canon EF)
